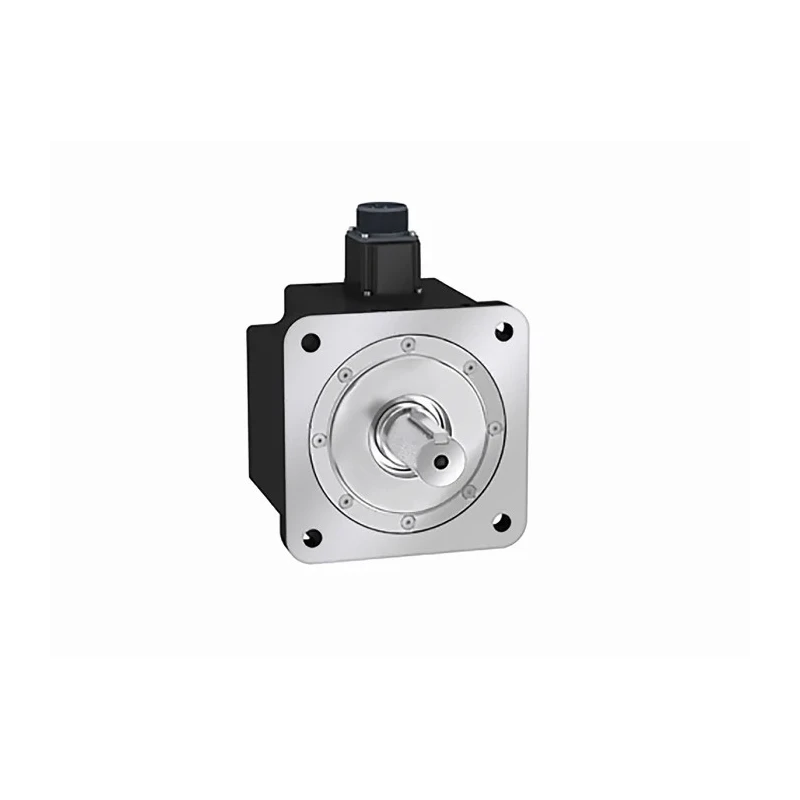

Schneider Electric 220V DC 1 kW Brushless Servo Motor, 3000 RPM, 14.3 Nm Max Torque, 22 mm Shaft Diameter BCH2MM1023CA6C

Schneider Electric BCH2MM1023CA6C is a high-performance 220V DC brushless servo motor from the Lexium 28 family, delivering 1 kW power at a maximum output torque of 14.3 Nm. It operates at speeds up to 3000 rpm and features a shaft diameter of 22 mm with a length of 55 mm, suitable for precision industrial motion control applications.

The motor offers a continuous stall current of 5.77 A and a rated current of 19.64 Arms, ensuring consistent high load performance. It is furnished with a 20-bit single-turn absolute encoder providing accurate position sensing essential for applications requiring precise speed and torque regulation.

Featuring robust flange and screw mounting options alongside IP50 (IM V3) and IP65 (IM B5, IM V1) ingress protection, this servo motor is suitable for demanding industrial environments including manufacturing, printing, packaging, materials handling, and automation systems.

Physical dimensions of the motor are 202 mm length, 130 mm width, and 176 mm depth with a weight of 7 kg, balancing compactness and mechanical stability. The rotor inertia is specified at 6.63 kg·cm², optimizing torque smoothness and speed control.

This motor is compatible with Schneider Electric’s Lexium 28 servo drives creating an optimized servo bundle designed for compact machines, providing cost-effective, energy-efficient solutions embedded with safety features.

This brushless servo motor delivers a continuous power rating of 1 kW for high efficiency. Maximum output torque of 14.3 Nm and stall torque of 4.77 Nm ensure robust performance. Features a 22 mm diameter shaft with 55 mm length for reliable mechanical coupling.

Operates at an output speed of 3000 rpm with a supply voltage of 220V DC. Equipped with a 20-bit single-turn absolute encoder for precise position feedback. Mount type includes flange and screw for versatile installation options.

Designed with IP50 and IP65 ratings ensuring protection in industrial environments. Dimensions are 202 mm length, 130 mm width, and 176 mm depth for compact mounting. Current rating is 19.64 Arms supporting high load demands.

Part of the Lexium series designed for motion servo drive compatibility for machines from 0.05 to 4.5 kW.

This servo motor is an ideal choice for industrial, manufacturing, automation, and laboratory environments requiring precise motor control. Its compatibility with Lexium 28 and Lexium BCH2 servo drives enhances integration flexibility and performance, making it suitable for printing, packaging, and materials handling applications.
