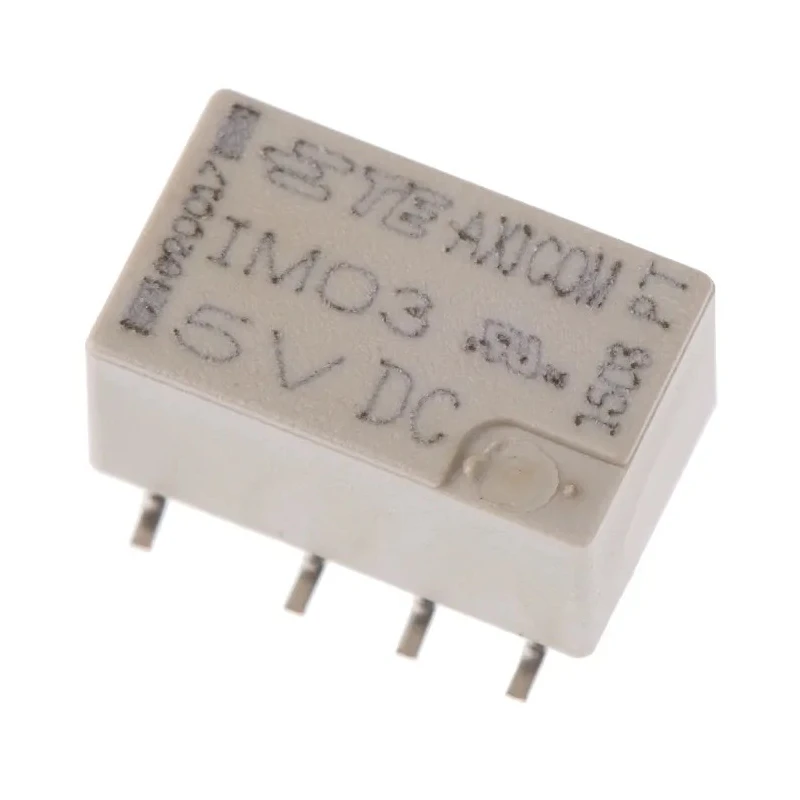

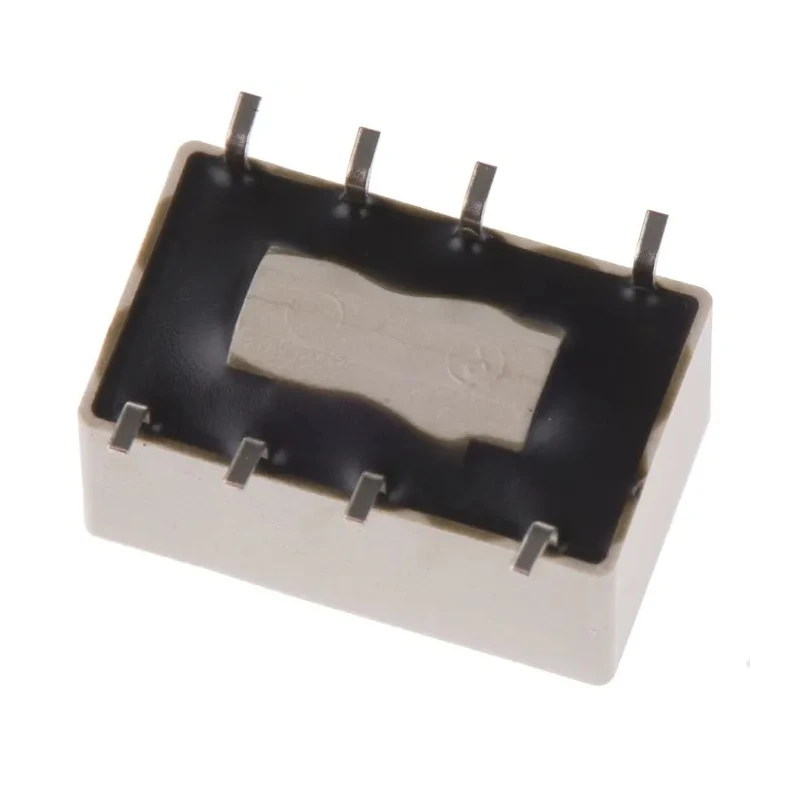

TE Connectivity Surface Signal Relay 5V dc Coil 2A Switching Current DPDT Surface Mount IM03GR

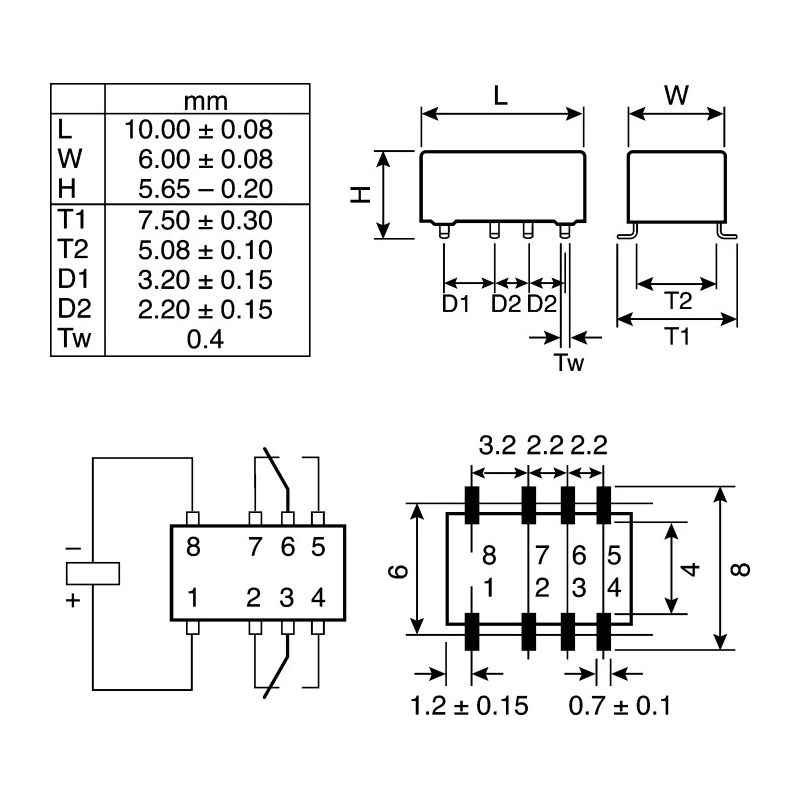

TE Connectivity IM03GR surface signal relay is engineered for reliable electrical switching in industrial, telecom, and automation applications. Featuring a compact slimline design measuring 10 mm in length, 6 mm in width, and 5.65 mm in height, this DPDT relay operates on a 5V dc coil voltage and supports a switching current of up to 2A.

The relay employs high-quality bifurcated gold plated contacts to ensure excellent conductivity and durability. Fully hermetically sealed with an IP67 rating, it is protected against dust and water ingress, ensuring dependable operation even in harsh environments.

Designed to withstand mechanical shock, the relay sustains 300G functional and 500G survival shocks, making it suitable for demanding industrial and telecom usage where vibration resistance is critical.

It supports switching of both AC (up to 250V) and DC voltages (up to 220V), providing versatility across various electrical circuits. The coil features a resistance of 178 ohms and consumes 140mW of power, ensuring efficient operation with minimal energy consumption.

The relay’s operating temperature ranges from -40°C to +85°C, accommodating a wide range of environmental conditions. The gull wing surface mount terminals facilitate easy and secure PCB mounting, ideal for automated manufacturing processes.

Compliant with RoHS directives and UL certified, the IM03GR model meets industry standards for safety and environmental requirements. The relay has a compact slimline low profile size of 10x6x5.65 mm. It uses bifurcated gold plated contacts for enhanced electrical performance.

The relay is hermetically sealed to IP67 standards for protection against dust and moisture. It produces high mechanical shock resistance with up to 300G functional and 500G survival capability. Suitable for telecom and signal conditioning applications requiring reliable switching.

Switching voltages include up to 250V AC and 220V DC. The coil resistance is 178Ω with a coil power consumption of 140mW. Operating temperature range is from -40°C to +85°C. Terminal type is gull wing surface mount making it ideal for PCB assembly.

The relay meets RoHS compliance and is UL approved.

This TE Connectivity IM03GR signal relay is ideal for use in industrial automation, telecommunications, manufacturing, and electronic signaling applications where compact size, reliability, and performance are paramount. It can be integrated into PCB designs requiring DPDT relay functionality with surface mount assembly, contributing to efficient and robust circuit designs.
