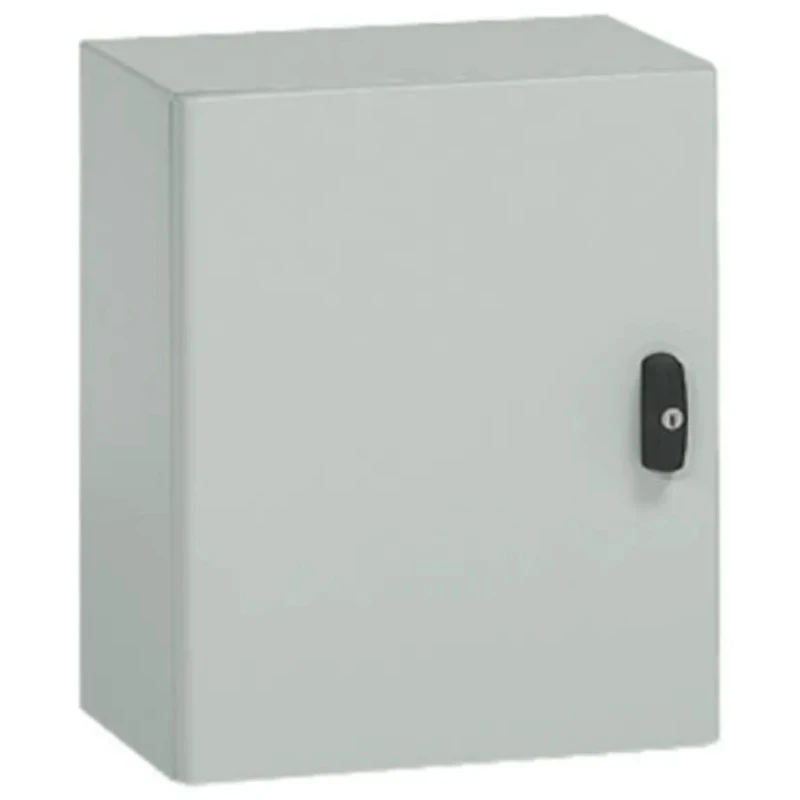

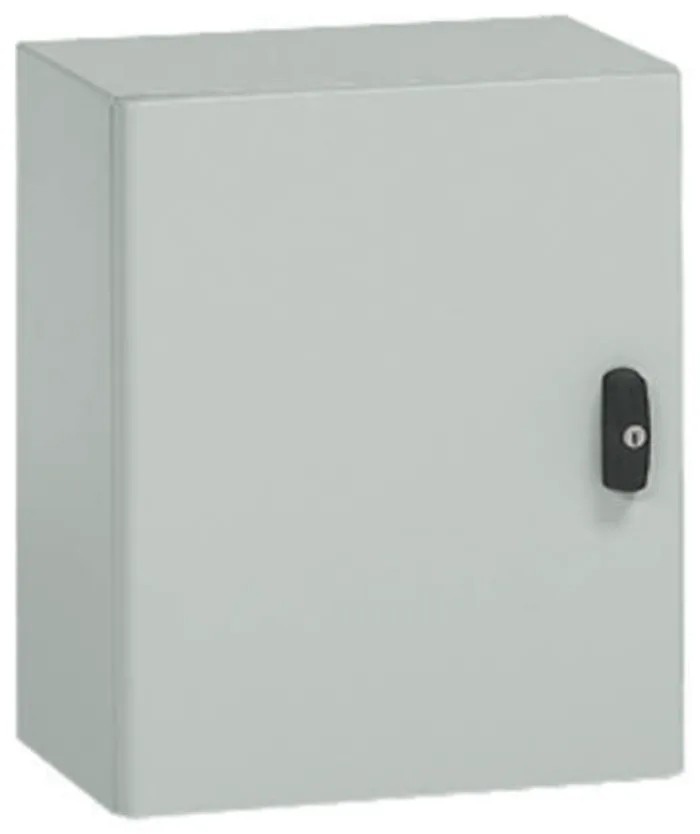

Legrand Atlantic Series Steel Wall Box, IP66 Protection, 300 mm x 300 mm x 200 mm, Grey Finish, Model

Legrand 0 355 30 Atlantic Series Steel Wall Box is a premium industrial electrical enclosure designed with IP66 ingress protection and measuring 300 mm height by 300 mm width with a 200 mm depth. Manufactured from robust steel with a 60 μ textured polyester coating, this wall box offers exceptional resistance to corrosion, chemicals, and adverse weather conditions, making it ideal for industrial, commercial, and outdoor electrical installations.

The enclosure features a key lock door with a single locking point providing secure access control. Its door is reversible and it includes a lower add-on plate with auto-centring capability ensuring ease of installation and equipment alignment. The internal mounting system includes a perforated rail and a mounting plate to accommodate various electrical components and accessories.

With an IK10 rating, the enclosure can withstand high mechanical impact and is suitable for demanding environments in construction, manufacturing plants, water treatment facilities, and industrial automation systems. It is designed for flexible installation, usable in both vertical and horizontal orientations, though horizontal positioning is mandatory for roof installations.

This wall box complies with international standards UL, EN, and IEC, offering a high level of safety and reliability. The grey finish integrates well in diverse settings while maintaining a professional appearance. Accessories such as Lina 25 profile uprights, cross pieces, and perforated full plates can be used to customize the internal layout according to specific application requirements.

The enclosure comes supplied with a set of 4 zinc alloy wall mounting brackets capable of supporting loads up to 300 kg, ensuring secure attachment and stability. Manufactured in France, it represents European quality manufacturing and durability for long-term industrial use.

Constructed from durable steel with a textured polyester coating resistant to corrosion and chemicals. Includes a key lock door with a single locking point ensuring security and controlled access. Equipped with gland and mounting plates and a perforated internal rail for versatile equipment mounting.

Rated to IK10 impact resistance, suitable for demanding industrial environments. Designed to permit vertical or horizontal installation; roof use restricted to horizontal position only. Meets international standards UL, EN, IEC for electrical enclosures and ingress protection.

Finished in grey color, compatible with various installations and environments. Manufactured in France, reflecting superior European quality standards. Supports accessories such as Lina 25 profile uprights and cross pieces for flexible internal configuration.

Includes a set of 4 zinc alloy wall mounting brackets with a 300 kg load capacity.

This Legrand Atlantic Series Steel Wall Box is ideal for industrial, construction, electrical distribution, water treatment, and automation applications requiring robust and secure enclosures with environmental and mechanical protection. Explore more electrical enclosures and industrial solutions in the EnvMart catalog for your project needs.
