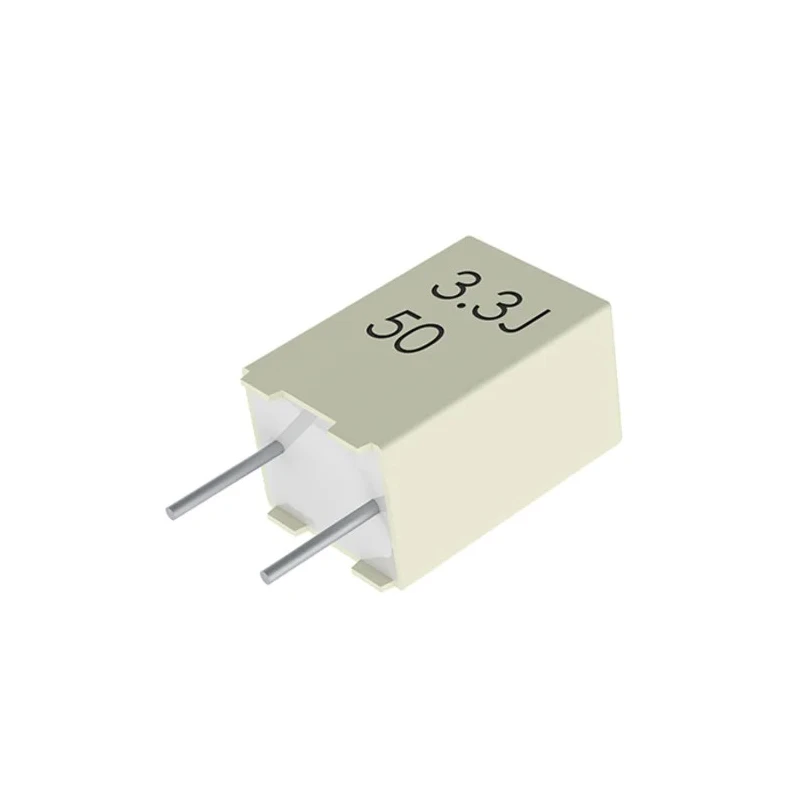

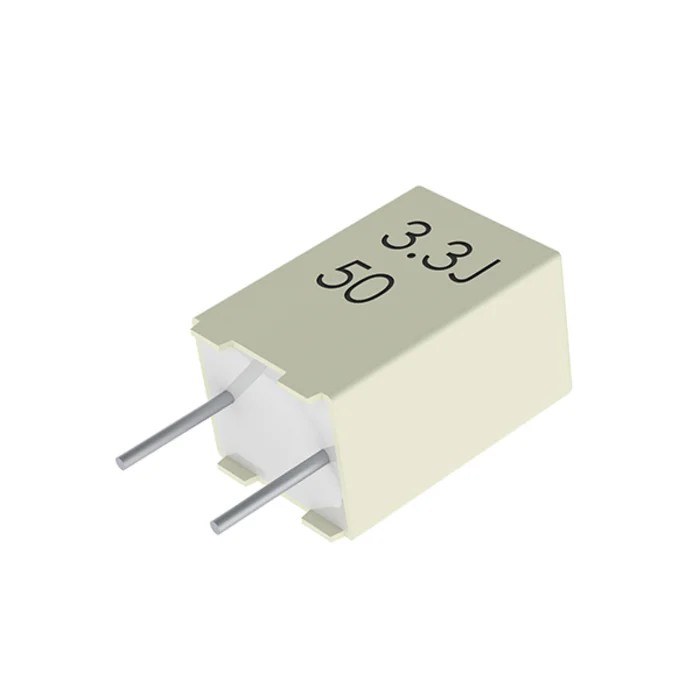

KEMET R82 Polyester Film Capacitor 330nF 40V AC 63V DC Through Hole, 5mm Lead Pitch R82DC3330AA60J

The KEMET R82DC3330AA60J is a high-quality polyester film capacitor designed for professional electronic component applications. Featuring a capacitance of 330nF, this capacitor supports AC voltage up to 40V and DC voltage up to 63V. It uses a through-hole mounting style with a 5mm lead pitch and incorporates metallized polyester film technology encapsulated within a thermosetting resin to ensure durability and stable performance.

This R82 Series capacitor is constructed with radial leads of tinned wire welded electrically to the capacitor winding ends, providing robust mechanical strength and excellent conductivity. The unit complies with the AEC-Q200 automotive standard, making it suitable for demanding automotive and industrial environments.

Its compact form factor with dimensions of 7.2mm length, 7.5mm height, and 3.5mm depth allows it to be efficiently integrated onto printed circuit boards. The capacitor’s capacitance tolerance ranges between ±5%, ±10%, and ±20%, providing flexibility for different circuitry precision requirements. Operating temperature range is up to a maximum of 105°C, ensuring reliable functionality under various thermal conditions.

The capacitor is designed for versatile use cases including blocking, coupling, timing, decoupling, and oscillator circuits. It is not intended for across-the-line application. Its lead-free termination and self-healing characteristics contribute to environmental sustainability and extended lifespan. The lead diameter is 0.5mm and the pin count is 2, suitable for through-hole PCB mounting.

Commonly employed in electronics manufacturing sectors such as automotive, industrial electronics, communication equipment, and consumer devices, this component offers dependable performance and compliance with industry standards.

Capacitance of 330nF suitable for blocking, coupling, and decoupling circuits. Rated AC voltage of 40V and DC voltage of 63V for varied electronic applications. Constructed with metallized polyester film encapsulated in thermosetting resin.

5mm lead pitch and 0.5mm lead diameter with 2 pins for secure through-hole mounting. Meets AEC-Q200 automotive standard and operates up to 105°C maximum temperature. Compact size with length 7.2mm, height 7.5mm, and depth 3.5mm for PCB integration.

Capacitance tolerance options of ±5%, ±10%, and ±20% to suit design precision needs. Lead-free terminations and self-healing properties enhance reliability and environmental compliance. Ideal for industrial, automotive, communication, and consumer electronics applications.

For reliable polyester Film Capacitors suitable for various electronics applications, explore the KEMET R82 series at EnvMart.
