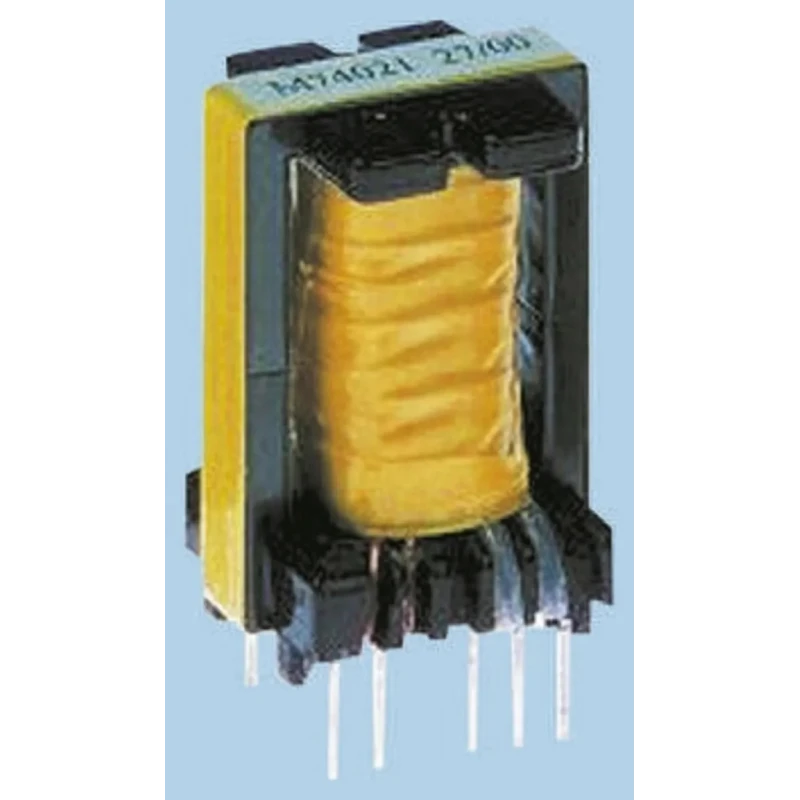

Myrra 5 Output SMPS Transformer 6 W Power, 85/265 V AC Primary, 9 to 18 V AC Secondary, 3 mH Inductance Model 74002
Specifications
| Country of Origin | France |
|---|---|
| Brand | Myrra |
| Power | 6W |
| Length | 18mm |
| Model | 74002 |
| Depth | 16mm |
| Width | 17.5mm |
| Mount Type | Through Hole |
| Termination Type | Pin |
| Maximum Operating Temperature | 50°C |
| Secondary current | 500mA |
| Number of outputs | 5 |
| Inductance | 3mH |
| Standards/Approvals | RoHS |
| Primary Voltage | 85/265 V ac |
| Secondary Voltage | 9 to 18 V ac |
| Maximum Operating Frequency | 70kHz |
Key Features
- Provides five independent output windings for flexible voltage configurations.
- Mount type is through hole for secure PCB installation.
- Supports a secondary current rating of 500 mA for efficient power delivery.
- Operates reliably at temperatures up to 50 degrees Celsius.
- Constructed to comply with RoHS standards ensuring environmental safety.
- Maximum operating frequency is 70 kHz, suitable for high-frequency switching power supplies.
- Termination type is pin style for reliable electrical connections.
- Manufactured in France with quality assurance.
Product Description
Myrra 74002 5 Output SMPS Transformer is a high-quality switch mode power supply transformer designed for electronic power applications requiring 6 W output power. It features a primary voltage range of 85/265 V AC and offers five secondary outputs delivering between 9 to 18 V AC with an inductance of 3 mH. This transformer is well-suited for through-hole mounting on printed circuit boards (PCBs), enabling secure and stable installation.
The product supports a maximum secondary current of 500 mA and operates efficiently at frequencies up to 70 kHz, making it ideal for modern switching power supplies that require compact, high-frequency transformers. The transformer’s pin termination type facilitates reliable electrical connections in circuit assembly.
Engineered to meet RoHS compliance, the transformer adheres to environmental regulations by using materials free from hazardous substances. It has a maximum operating temperature rating of 50°C, ensuring reliability in demanding industrial, commercial, and laboratory environments.
The device dimensions include a length of 18 mm, width of 17.5 mm, and depth of 16 mm, making it suitable for compact electronic designs. Manufactured in France, the product assures high manufacturing standards consistent with IEC 950 and IEC 61558 reinforced insulation standards relevant to power transformers.
Five independent secondary outputs enable versatile voltage configurations. Through-hole mount type ensures solid PCB fixation and durability. Supports 500 mA secondary current for moderate power loads. RoHS compliance aligns with environmental safety in manufacturing.
Compact and facilitates high-frequency operations at 70 kHz. Pin termination type enhances assembly reliability. Max operating temperature of 50°C suitable for industrial applications. Manufactured in France with compliance to IEC safety standards.
This transformer is commonly used in switch mode power supplies for industrial automation, manufacturing equipment, laboratory instruments, and commercial electronic devices requiring multiple voltage outputs and reliable power conversion.
Explore EnvMart for a wide range of transformers and related power supply components to meet your industrial and electronic design needs.
Explore more products in our SMPS Transformers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary voltage range of this transformer is 85/265 V AC.
The maximum operating temperature for this transformer is 50°C.
It provides five independent output windings for flexible voltage configurations.
The transformer supports a maximum secondary current rating of 500 mA.
The inductance value of this transformer is 3 mH.
This model uses a through-hole mount type for secure PCB installation.
The maximum operating frequency is 70 kHz, making it suitable for high-frequency applications.
The termination type is pin style, which facilitates reliable electrical connections.
Yes, it is constructed to comply with RoHS standards, ensuring environmental safety.
The dimensions of this transformer are 18 mm in length, 17.5 mm in width, and 16 mm in depth.
This transformer is manufactured in France, ensuring high manufacturing standards.
