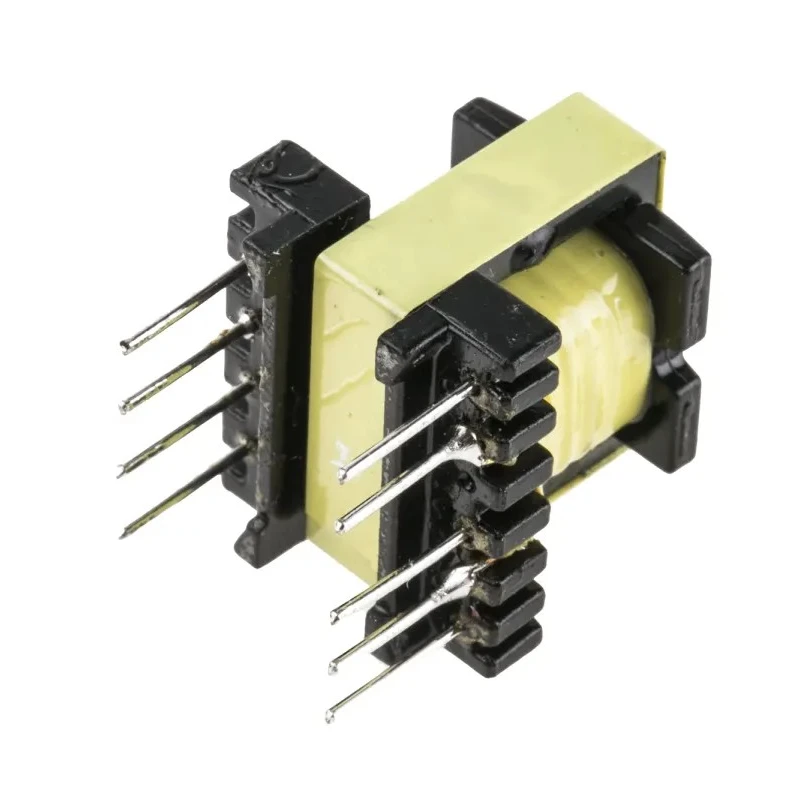

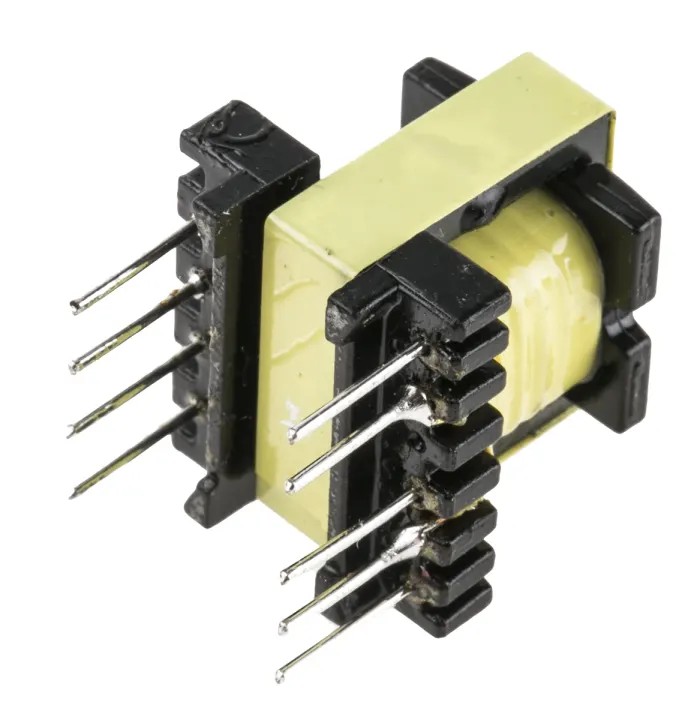

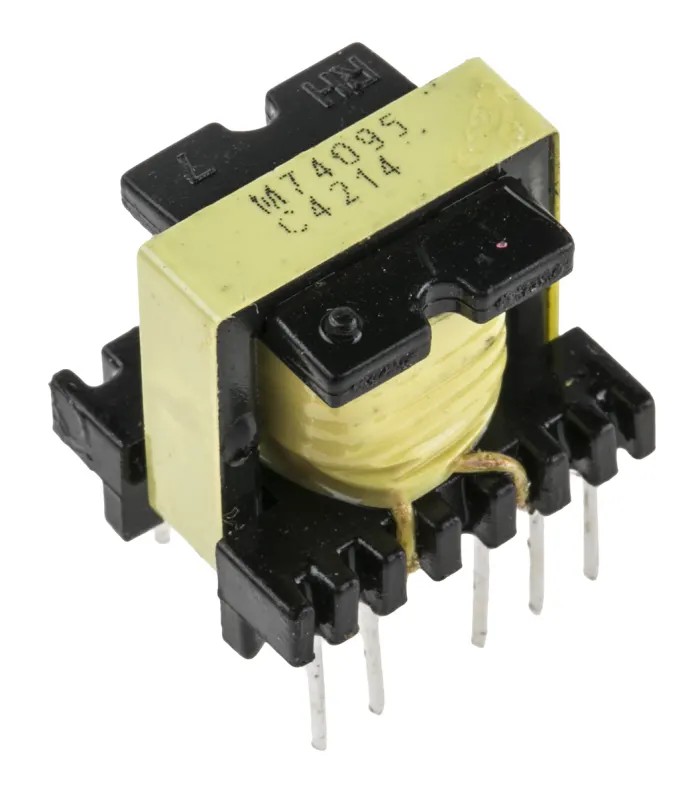

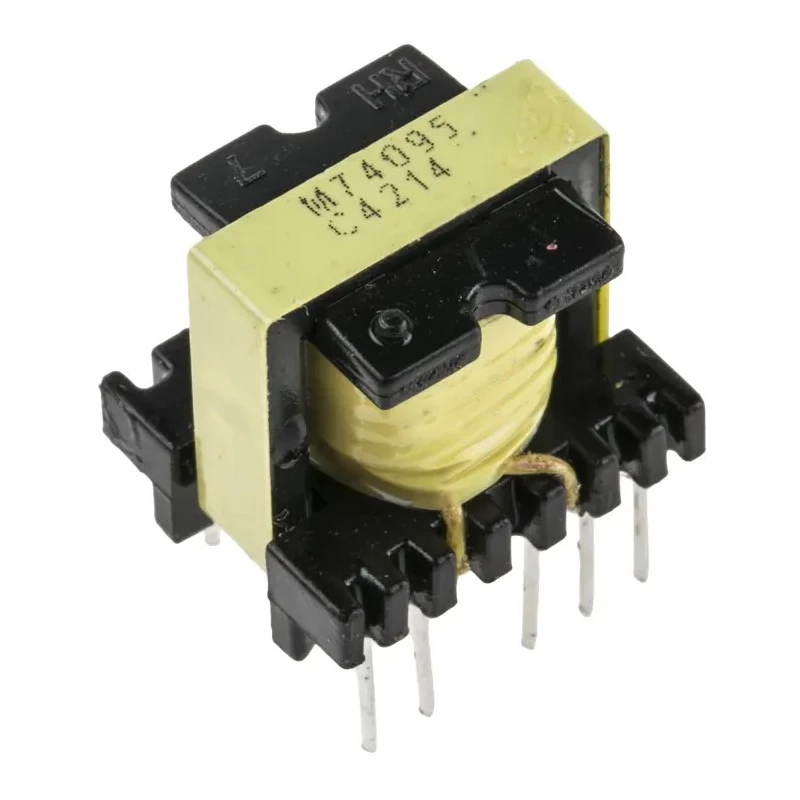

Myrra 5 Output SMPS Transformer 4.2 W Power, 85/265 V AC Primary, 7.5 to 15 V AC Secondary, 2.1 mH Inductance, PCB 74095

Myrra 74095 5 Output SMPS Transformer is a high-quality power supply component designed for use in low output switch mode power supplies with power ratings between 1 and 9 watts. Operating from a primary voltage range of 85 to 265 V AC, this transformer provides five independent secondary outputs between 7.5 and 15 V AC suitable for various electronic applications.

This PCB-mount transformer features a 2.1 mH inductance and supports a secondary current of 900 mA, ensuring efficient and stable power delivery. Its compact size (18 mm length, 16 mm width, 17.5 mm depth) and lightweight construction make it ideal for integration into compact circuit boards.

Designed with full varnish impregnation and mounted on a laminated bobbin, it complies with IEC 950 and IEC 61558 standards for reinforced insulation, guaranteeing safety and durability. The product also meets RoHS environmental standards, addressing hazardous substances concerns.

The transformer operates reliably within a temperature range up to 60°C and supports standard mains frequencies of 50 to 60 Hz. Its open-frame construction is optimized for TINYSwitch II circuits, especially when paired with TNY264 and TNY266 integrated circuits, enabling compact and efficient power supply designs with minimal components.

Myrra 74095 is manufactured in France, maintaining strict quality and safety standards. It is suitable for applications in industrial, laboratory, HVAC, and commercial power supply equipment, providing a trusted solution for designing stable switched-mode power supplies with multiple outputs.

Provides five independent output voltages for versatile power supply design. Power rating of 4.2 watts suitable for low output switch mode power supplies. Inductance of 2.1 mH ensures efficient energy transfer and minimal losses.

Designed with PCB mount type for easy integration into electronic circuits. Supports secondary current up to 900 mA for robust performance. Operating temperature range up to 60°C for reliable industrial use. Complies with RoHS standards for environmental safety.

Compact dimensions with length 18 mm, width 16 mm, and depth 17.5 mm. Minimum and maximum operating frequencies: 50 Hz to 60 Hz, ensuring compatibility with mains supply. Explore more electronic transformers and power supply components on EnvMart for all your industrial and commercial needs.
