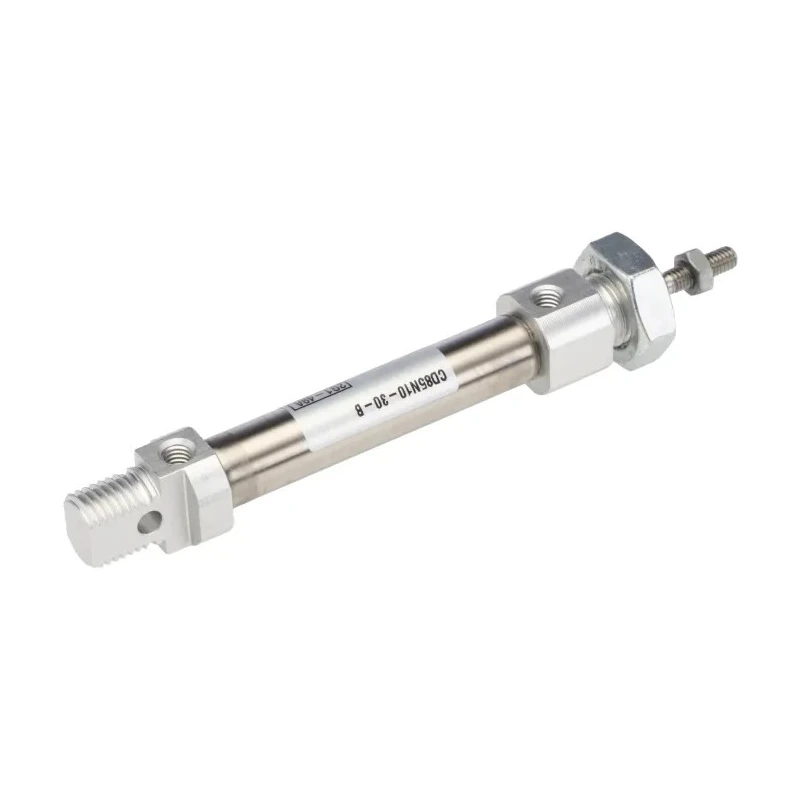

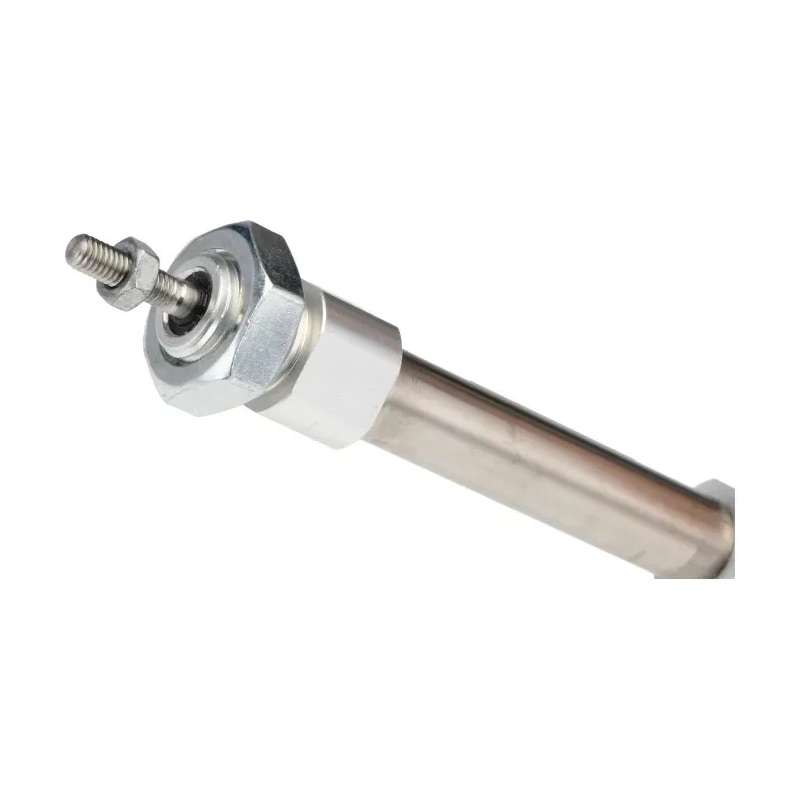

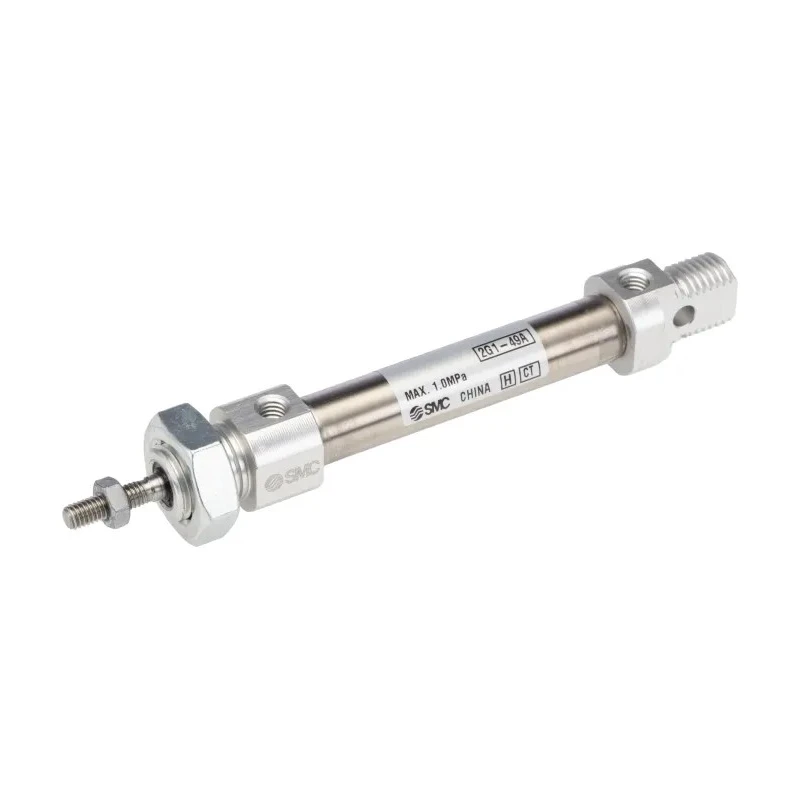

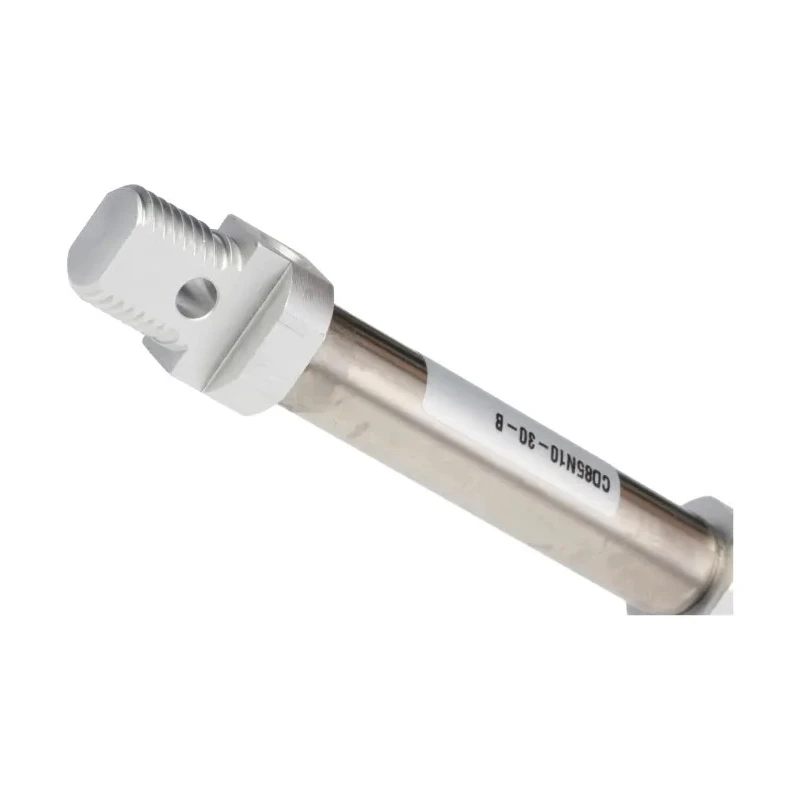

SMC 30 mm Pneumatic Piston Rod Cylinder CD85 Series Double Acting Clevis Mount Aluminium Alloy Body
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Length | 116mm |
| Model | CD85 |
| Mount Type | Clevis |
| Series | CD85 |
| Maximum Operating Temperature | +60°C |
| Stroke Length | 30mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 6432 |
| Cushioning Type | Rubber |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M4 |
Key Features
- Double acting cylinder with clevis mounting for versatile installation.
- 30 mm stroke length enabling precise short-travel positioning.
- Aluminium alloy body offers lightweight construction and corrosion resistance.
- Rubber bumper cushioning reduces noise and impact at stroke ends.
- M4 male threaded piston rod for direct component attachment.
- Maximum piston speed of 1500 mm/s supports high-rate cycling.
- Rated for operating temperatures up to +60°C.
- Conforms to ISO 6432 dimensional standards for interchangeability.
Product Description
SMC CD85N10-30-B Pneumatic Piston Rod Cylinder is a compact double acting actuator designed for automated systems requiring precise linear motion with 30mm stroke and maximum length 116mm. Its aluminium alloy body ensures a lightweight and corrosion-resistant construction suitable for industrial environments.
This cylinder features a clevis mount providing a pinned pivot connection for ease of alignment and angular displacement during installation. The piston rod is single, male gender with an M4 metric threaded end, facilitating straightforward linkage to tooling or fixtures.
Integrated rubber bumper cushioning effectively minimizes impact noise and mechanical stress by absorbing energy at the stroke ends. Its maximum piston speed of 1500 mm/s ensures efficient high-speed cycling necessary in pick-and-place automation, electronics assembly fixtures, clamp actuation on test rigs, valve and door controls, and other mechanical push - pull drives.
Designed to comply with ISO 6432 standards, the CD85 series ensures dimensional interchangeability with similar compact cylinders. Rated to operate safely up to +60°C, it suits a range of general industrial automation and pneumatic applications requiring dependable short-stroke linear actuation.
Constructed in China and supplied in new condition, the product is ideal for industrial, laboratory, manufacturing, and HVAC pneumatic systems. Double acting cylinder with clevis mounting for versatile installation. 30 mm stroke length enabling precise short-travel positioning.
Aluminium alloy body offers lightweight construction and corrosion resistance. Rubber bumper cushioning reduces noise and impact at stroke ends. M4 male threaded piston rod for direct component attachment. Maximum piston speed of 1500 mm/s supports high-rate cycling.
Rated for operating temperatures up to +60°C. Conforms to ISO 6432 dimensional standards for interchangeability. Ideal for automation, pick-and-place mechanisms, and valve actuation. Explore related pneumatic cylinders and actuators in the Industrial Tools & Equipment category at EnvMart for comprehensive automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 30 mm, allowing for precise short-travel positioning.
It is rated to operate safely at temperatures up to +60°C.
This unit features a clevis mount, which provides a pinned pivot connection for ease of alignment and angular displacement during installation.
The maximum piston speed is 1500 mm/s, supporting high-rate cycling necessary for various applications.
The body is constructed from aluminium alloy, offering lightweight and corrosion-resistant properties.
It features rubber bumper cushioning, which reduces noise and impact at the stroke ends.
The piston rod is M4 male threaded, allowing for direct attachment to components.
This model conforms to ISO 6432 dimensional standards, ensuring interchangeability with similar compact cylinders.
The overall length of this cylinder is 116 mm.
It is a double acting cylinder, allowing for movement in both directions.
This model is suitable for general industrial automation, pick-and-place mechanisms, and valve actuation.
It is constructed in China.
