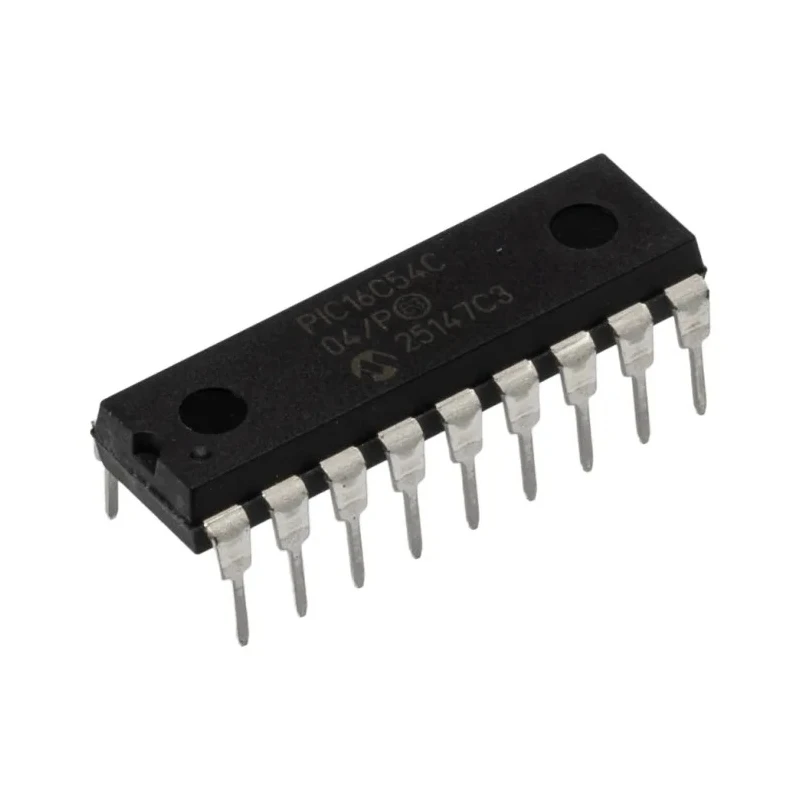

Microchip PIC16C54C-04/P 8-Bit PIC Microcontroller, 4 MHz, 0.75kB EPROM, 18-Pin PDIP

Microchip PIC16C54C-04/P is an 8-bit PIC16C microcontroller designed on Microchip's PIC architecture providing reliable performance for embedded system applications. Operating at 4 MHz clock speed, this MCU features 0.75kB EPROM program memory and 25-bit RAM, offering adequate storage for legacy control and monitoring tasks.

It comes in an 18-pin PDIP through-hole package allowing easy integration into PCB designs with 12 programmable I/O pins and one 8-bit timer to facilitate versatile timing operations. The device supports operating voltages from 3 V to 5.5 V with a maximum power dissipation rating of 800 mW, ensuring efficiency under typical industrial environments.

Designed with a RISC instruction set consisting of 33 instructions and a 2-level hardware stack, the PIC16C54C-04/P microcontroller is suitable for low to medium complexity embedded control systems. It also complies with ISO/TS 16949 automotive standards, highlighting its suitability in automotive and industrial applications where quality is critical.

The microcontroller's moderate operating temperature range (0°C to 70°C) suits standard industrial conditions and embedded devices. Its compact PDIP form factor has dimensions of 22.99 mm length, 6.6 mm width, and 3.68 mm height, making it space-efficient for legacy circuit boards and prototyping.

Built on Microchip's PIC16C baseline architecture with 8-bit data bus width. Includes 0.75kB EPROM and 25-bit RAM for program and data storage. Operates at 4 MHz maximum clock frequency for timing control. Provides 12 programmable I/O pins with one 8-bit timer for customization.

Compatible with through-hole PDIP 18-pin package for standard PCB use. Wide supply voltage range from 3 V to 5.5 V and 800 mW power dissipation. Compliant with ISO/TS 16949 automotive quality standard. Operating temperature range from 0°C to 70°C for industrial environment suitability.

Compact dimensions optimize space in embedded system implementations. Legacy support with EPROM memory technology for established design retention.

This microcontroller is ideal for industrial, automotive, consumer electronics, and educational applications requiring stable 8-bit MCU performance with legacy EPROM program memory. Consider Microchip PIC16F series for newer flash-based variants in contemporary designs. Explore more Microchip Microcontrollers and semiconductor products in the Electronics & Electricals section on EnvMart.
