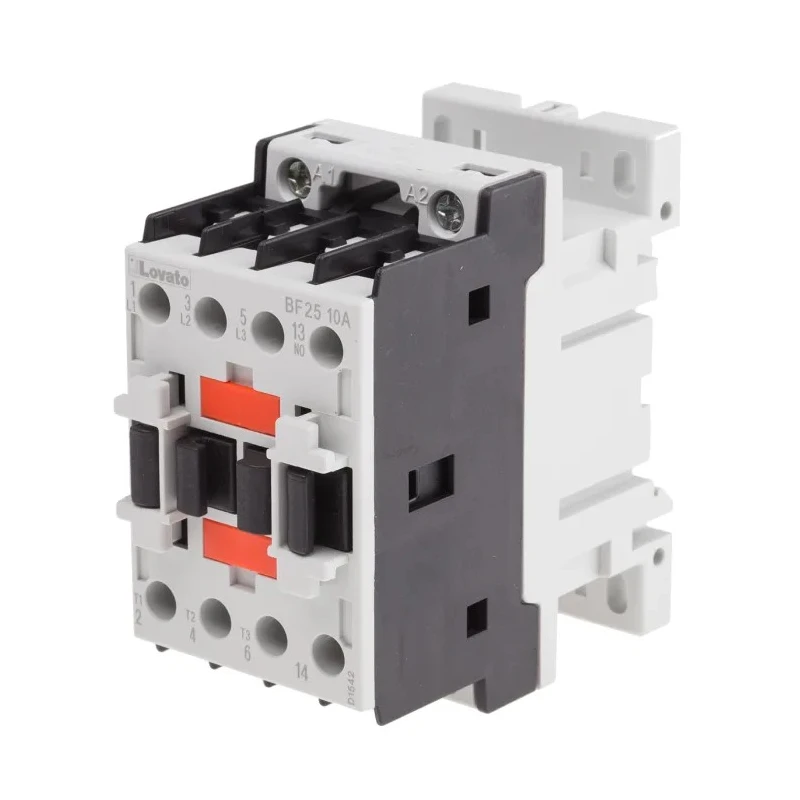

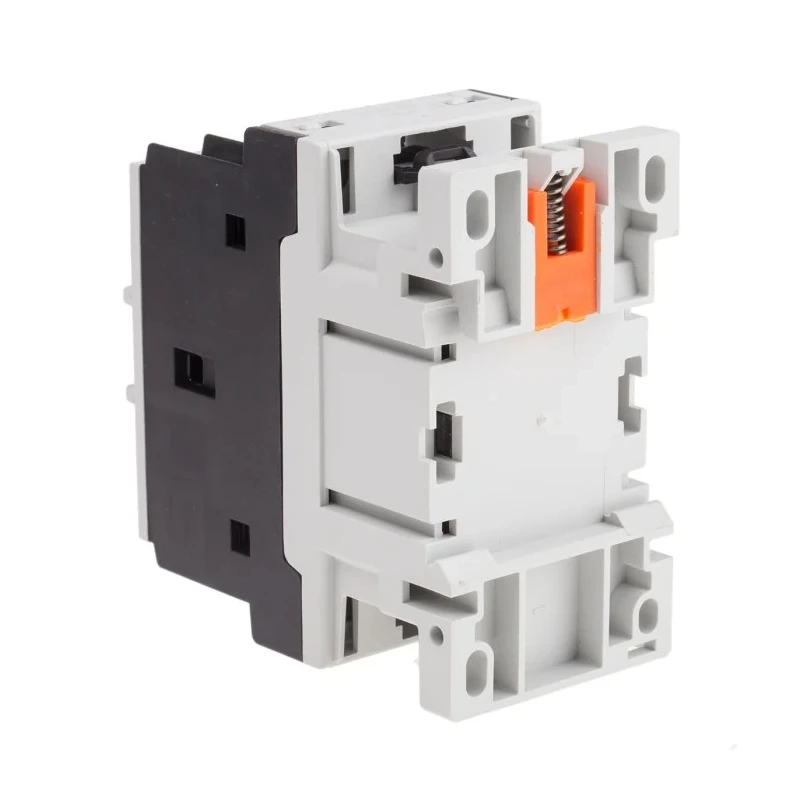

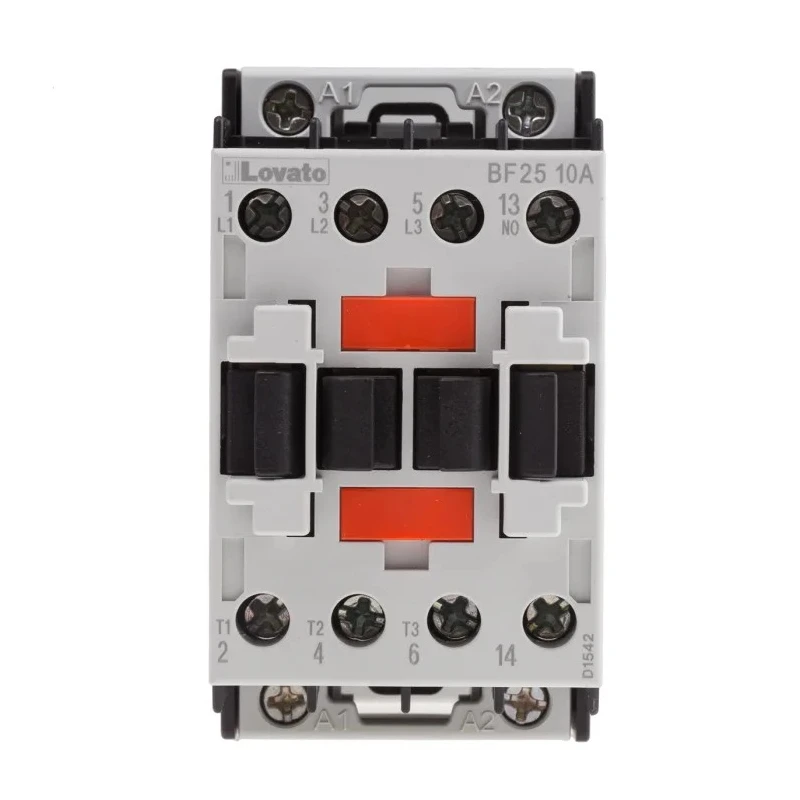

Lovato Electric 3-Pole Contactor, 400V AC Coil, 25 A, 11 kW, 3 NO Auxiliary Contacts, BF2510A400
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Lovato Electric |
| Function | Motor Control, Straight |
| Length | 81mm |
| Model | BF2510A400 |
| Depth | 80.7mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | BF |
| Power Rating | 11kW |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -50°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Contact Voltage | 440V ac |
| Coil Voltage | 400V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 3 NO |
| Operational Current Ie | 25A |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
| RS PRO Contactor, 400 V ac Coil, 3-Pole, 25 A, 11 kW, 3NO, 600 V acBrand | RS PRO |
Key Features
- Operates with a 400V AC coil voltage for industrial control applications.
- Features three poles with three normally open auxiliary contacts for enhanced operational flexibility.
- Rated for a contact current of 25 amperes and a power rating of 11 kW.
- Mounts easily on a 35mm DIN rail with screw terminal type connections.
- Supports motor control with straight function in harsh environments from -50°C to 70°C.
- Compact dimensions of 81mm length, 45mm width, and 80.7mm depth contribute to space-saving installations.
- Complies with UL 60947-4-1, UL 60947-1, IEC/EN/BS 60947-4-1, and related international standards ensuring quality and safety.
Product Description
Lovato Electric BF2510A400 3-Pole Contactor with a 400V AC coil and 25A contact current rating is engineered for robust motor control in industrial and commercial electrical applications. Its 11 kW power rating enables efficient operation of electrical motors and automation systems.
The device features three poles and three normally open (3 NO) auxiliary contacts, providing versatile control functions and auxiliary signaling capabilities. Designed for straightforward mounting on a standard 35mm DIN rail, the contactor employs secure screw terminals for reliable electrical connections.
Operational temperature range from -50°C to 70°C makes it suitable for various harsh environmental conditions. Compact dimensions of 81mm length, 45mm width, and 80.7mm depth allow for effective space utilization in electrical panels.
Adhering to multiple global standards such as UL 60947-4-1 and IEC/EN/BS 60947-1 ensures the product's compliance with strict safety and performance requirements. Operates with a 400V AC coil voltage for industrial control applications.
Supports motor control with straight function in harsh environments. Compact form factor with precise screw terminal connection for safety and reliability. Equipped with three normally open auxiliary contacts for extended control functionality.
Rated for 25A contact current and 11 kW power for a range of motor control tasks. Mounts easily on a standard 35mm DIN rail for convenient installation. Certified to UL, IEC, CSA, EAC, and CCC international standards for worldwide acceptability.
This Lovato Electric BF2510A400 contactor is ideal for industrial automation, manufacturing, HVAC systems, and electrical distribution tasks requiring reliable motor control. It ensures long-term operational performance with safety and efficiency.
Explore more high-quality Contactors and control gear components in EnvMart's extensive Electronics & Electricals category for industrial and commercial needs.
