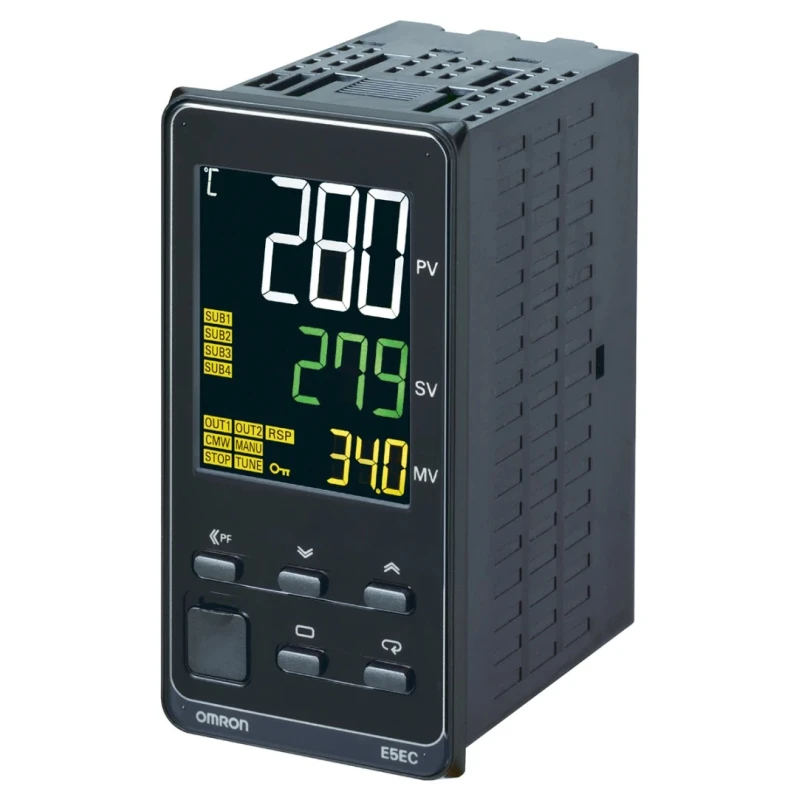

Omron Panel Mount PID Temperature Controller 3 Input 1 Output Relay 240V AC/DC E5EC
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 11 Segment |
| Brand | Omron |
| Length | 9mm |
| Model | E5EC |
| IP Rating | IP66, IP00, IP20 |
| Width | 24mm |
| Mount Type | Panel Mount |
| Number of inputs | 3 |
| Output type | Relay |
| Series | E5EC |
| Maximum Operating Temperature | 55°C |
| Control Type | PID Controller |
| Minimum Operating Temperature | -10°C |
| Interfaces | USB conversion cable |
| Maximum Current | 50A ac |
| Number of outputs | 1 |
| Terminal type | Screw Terminal block |
| Maximum Voltage | 250V |
| Maximum Supply Voltage | 240V ac/dc |
| Digital Comms | RS485 |
| Panel Depth | 60mm |
| Extended range of I/O's | 4 auxiliary outputs, 6 event inputs, transfer output and remote SP's |
Key Features
- Comes with 3 universal sensor inputs supporting thermocouple and analogue signals.
- Features 1 output relay capable of handling up to 50A AC current.
- Operates on 240V AC/DC supply voltage with maximum voltage tolerance of 250V.
- Equipped with a large 11-segment white LCD display for clear visibility.
- Offers high operational temperature range from -10°C up to 55°C.
- Includes an RS485 digital communication interface compatible with PLC connectivity.
- Robust panel mount design with IP66, IP00, and IP20 ratings for versatile protection.
- Panel depth is compact at 60mm making it suitable for tight spaces.
Product Description
Omron E5EC-RX4DBM-000 is a premium panel mount PID temperature controller designed for precise and reliable industrial temperature management. It supports three input channels compatible with a wide range of sensor types including thermocouples, PT sensors, and analogue current/voltage inputs, allowing flexible process integration.
The controller features one relay output capable of switching up to 50A AC current, ensuring robust operation in demanding industrial environments. Operable at a maximum supply voltage of 240V AC/DC and withstands up to 250V, it provides versatility for varied electrical setups.
The device includes a large 11-segment white LCD display, offering excellent readability with simultaneous display of PV (process value), SV (set value), and MV (manipulated variable) for intuitive monitoring. Operating temperature ranges from -10°C to +55°C, making it suitable for diverse industrial conditions.
Its panel mount form factor features a compact 60mm depth, with IP66, IP00, and IP20 ingress protection ratings ensuring durability against dust and water ingress. The controller supports RS485 digital communication, enabling easy PLC integration and networked control schemes.
Additional functionalities include four auxiliary outputs, six event inputs, transfer output, and remote setpoint capabilities, enabling sophisticated control logic for advanced automation systems.
Omron’s CX-Thermo software facilitates easy configuration and parameter tuning via a USB conversion cable without needing separate power, simplifying commissioning and maintenance tasks.
This temperature controller is ideal for various industrial applications including manufacturing process control, HVAC systems, laboratory instrumentation, and automated production lines requiring accurate and stable temperature regulation.
Supports universal sensor inputs including thermocouples and analogue signals. Capable of high current relay output switching up to 50A. Compatible with 240V AC/DC power supply and tolerant to 250V maximum voltage. High visibility 11-segment LCD display with multi-parameter readout.
Wide operating temperature range from -10°C to 55°C. RS485 digital communication for PLC and network integration. Robust IP66, IP00, and IP20 ingress protection for harsh environments. Compact panel mount design with 60mm depth for space-saving installation.
Extended I/O options and remote setpoint for advanced process control. Easy software setup with CX-Thermo via USB without additional power supply.
Explore the full range of Omron temperature controllers and industrial instrumentation to enhance process control efficiency and reliability. Find all related products in the Temperature Controller category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The controller features one relay output capable of switching up to 50A AC current.
This model operates within a temperature range of -10°C to +55°C.
It supports three universal sensor inputs, compatible with thermocouples and analogue signals.
It is equipped with an 11-segment white LCD display for clear visibility of process values.
The temperature controller operates on a supply voltage of 240V AC/DC, with a maximum voltage tolerance of 250V.
It has IP66, IP00, and IP20 ratings, providing protection against dust and water ingress.
Yes, it includes an RS485 digital communication interface for PLC connectivity.
The panel depth is compact at 60mm, making it suitable for installations in tight spaces.
In addition to the main relay output, it offers four auxiliary outputs and six event inputs.
It features screw terminal blocks for secure electrical connections.
Yes, it can be configured easily using Omron’s CX-Thermo software via a USB conversion cable without needing separate power.
The model number is E5EC-RX4DBM-000, part of the Omron E5EC series.
