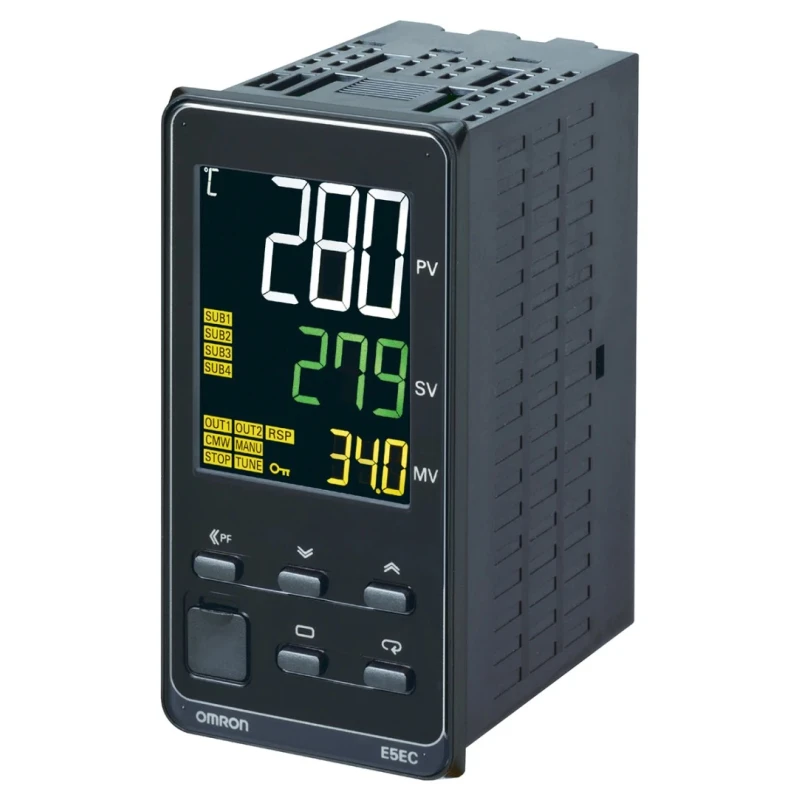

Omron Panel Mount PID Temperature Controller 3 Input 1 Output Relay 240V AC/DC E5EC
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 11 Segment |
| Brand | Omron |
| Length | 9mm |
| Model | E5EC |
| IP Rating | IP20, IP00, IP66 |
| Width | 24mm |
| Mount Type | Panel Mount |
| Number of inputs | 3 |
| Output type | Relay |
| Series | E5EC |
| Maximum Operating Temperature | 55°C |
| Control Type | PID Controller |
| Minimum Operating Temperature | -10°C |
| Interfaces | USB conversion cable |
| Maximum Current | 50A ac |
| Number of outputs | 1 |
| Terminal type | Push-in |
| Maximum Voltage | 250V |
| Maximum Supply Voltage | 240V ac/dc |
| Digital Comms | RS485 |
| Panel Depth | 60mm |
| Extended range of I/O's | 4 auxiliary outputs, 6 event inputs, transfer output and remote SP's |
Key Features
- Equipped with a PWM control type PID controller for accurate process regulation.
- Supports digital communication via RS485 for easy integration with control systems.
- Compact design with 48 x 96 mm dimensions and 60 mm panel depth for space-efficient mounting.
- Wide operating temperature range from -10°C to 55°C suitable for varied industrial environments.
- Push-in terminal type ensures secure and convenient wiring connections.
- Robust IP ratings including IP20, IP00, and IP66 for enhanced protection in harsh conditions.
- Provides 4 auxiliary outputs, 6 event inputs, transfer output, and remote setpoint controls.
- Large white 11-segment LCD display with three-level display showing PV, SV, and MV simultaneously.
Product Description
Omron E5EC-RX2DBM-000 panel mount PID temperature controller is a premium device designed for precise temperature regulation in industrial, process control, and automation applications. It features three sensor inputs and one relay output, capable of handling a maximum current of 50A AC, and operates reliably within a voltage range of up to 240V AC/DC. This model is optimized to deliver consistent and accurate control using PID algorithms, contributing to enhanced process efficiency and product quality.
The controller's compact design with dimensions of 48 x 96 mm and a shallow panel depth of 60 mm facilitates easy integration in panels where space is constrained. It includes a bright 11-segment LCD display providing simultaneous visualization of process variables, setpoint, and manipulated variable for straightforward monitoring. The push-in terminal system simplifies wiring, reducing installation time and improving operational safety.
Designed for demanding industrial environments, the E5EC model supports extensive communication capabilities through RS485 digital interfacing, enabling seamless connection with PLCs and other control devices. The device also offers an extended range of inputs and outputs including auxiliary and event inputs, transfer output, and remote setpoint function, adapting to complex process control requirements.
The temperature controller supports a broad operating temperature range from -10°C to 55°C and is rated for protection classes IP20, IP00, and IP66, assuring durability and performance in diverse climatic conditions. Compliance with international standards such as EN 61010-1, EN 55011, KC mark, and UL certifications affirm its quality and safety for industrial deployment.
Setup and configuration are facilitated by Omron’s CX-Thermo software, which enables parameter setting via USB conversion cable without requiring external power. This feature significantly enhances usability and reduces operational downtime.
Equipped with PID control for precise temperature management. RS485 digital communications interface facilitates automation system integration. Compact and space-saving with 48 x 96 mm footprint and 60 mm panel depth. Robust protection ratings IP20, IP00, IP66 for versatile environmental resistance.
Multiple input/output options support complex process control schemes. Large multi-level LCD display for simultaneous PV, SV, and MV monitoring. Easy installation with push-in terminal connections. Certified to international safety and performance standards.
Configurable via CX-Thermo software using USB connection without external power supply.
This controller is ideal for industrial automation, HVAC, manufacturing, water treatment, and laboratory environments requiring reliable and precise temperature control. Explore more in the Temperature Controller category at EnvMart for comprehensive process control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 55°C.
This temperature controller supports three sensor inputs and one relay output, along with four auxiliary outputs and six event inputs.
It utilizes a PID control type for precise temperature management.
The dimensions are 48 mm in width and 96 mm in length, with a panel depth of 60 mm.
It operates reliably within a voltage range of up to 240V AC/DC.
Yes, it supports digital communication via RS485 for easy integration with control systems.
It features push-in terminal type connections for secure and convenient wiring.
The minimum operating temperature is -10°C.
It has an 11-segment LCD display that shows process variables, setpoint, and manipulated variable simultaneously.
The E5EC is rated IP20, IP00, and IP66, providing enhanced protection in various environments.
Configuration is facilitated by Omron’s CX-Thermo software, which allows parameter setting via a USB conversion cable.
The relay output can handle a maximum current of 50A AC.
