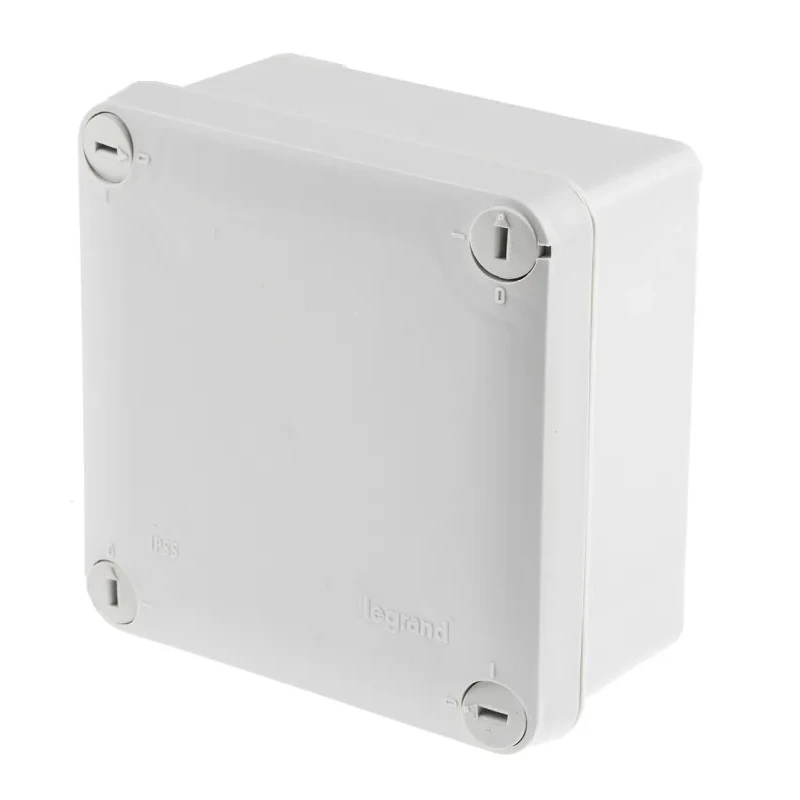

Legrand Plexo Series Grey ABS Junction Box IP55 4 Terminals 105x105x55 mm IP55

Legrand IP55 Junction Box IP55 model is a durable and weatherproof enclosure designed to safeguard electrical wiring connections in both industrial and domestic settings. Constructed from high-quality ABS plastic, this junction box offers strong protection and electrical insulation while being lightweight.

Its IP55 rating guarantees resistance against dust ingress and low-pressure water jets, making it suitable for outdoor and harsh environments. The box measures 105 mm in length and width with a height of 55 mm, providing a compact yet capacious housing for wiring applications.

The grey RAL7035 color finish offers an industrial look conducive to various installation settings. The junction box supports four terminal connections and has a current rating of 16A, accommodating multiple wiring configurations safely.

Operating efficiently between -25 °C and 45 °C, it withstands varied temperature conditions typical in electrical installations. It features self-extinguishing properties up to 650 °C for enhanced safety and complies with RoHS standards ensuring halogen-free material use. Mechanical durability is supported by IK07 impact resistance.

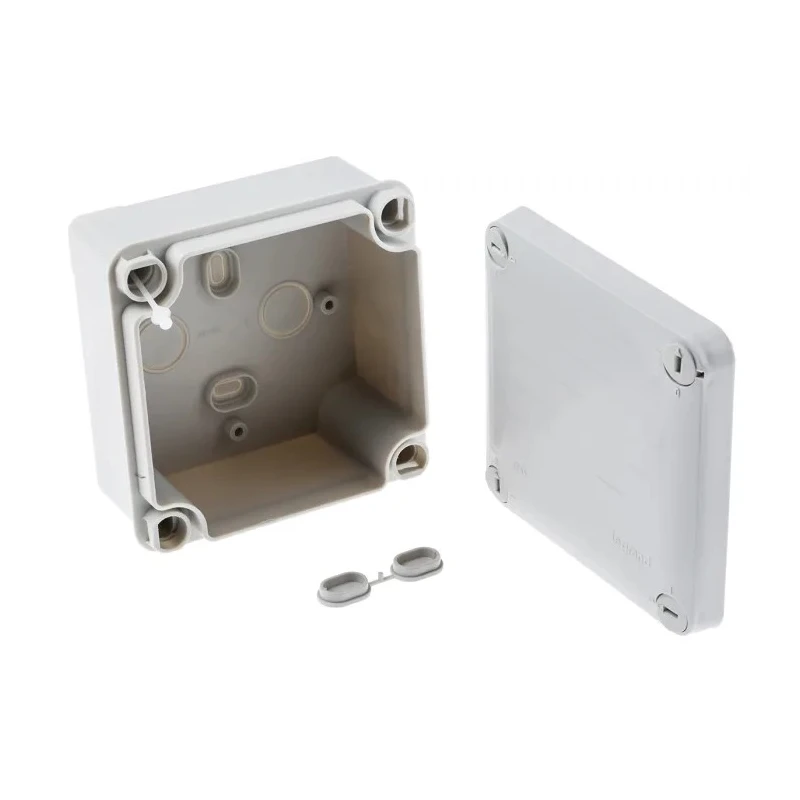

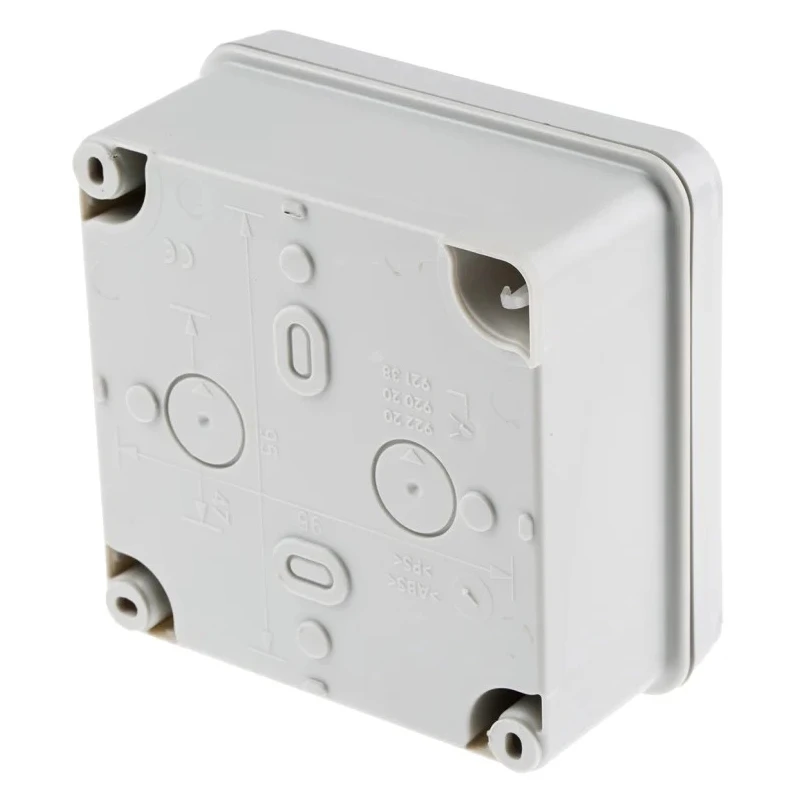

Installation is simplified with interchangeable membrane glands and pre-cut knock-outs for cable entry, alongside marking areas on the cover for easy labelling. The junction box is suitable for wall or ceiling mounting in building construction, electrical repairs, lighting extensions, and electrical circuit connections.

Made from robust ABS material for durability and electrical insulation. Features an IP55 rating for superior protection against dust and water jets. Equipped with 4 terminals facilitating secure wiring connections. Compact size of 105 mm length, 105 mm width, and 55 mm height suitable for wall or ceiling mounting.

Grey-colored housing with RAL7035 finish offers aesthetic and functional design. Operating temperature range from -25 °C to 45 °C ensuring versatility in application environments. Self-extinguishing up to 650 °C providing enhanced safety against fire hazards.

Halogen-free construction compliant with RoHS standards. IK07 impact resistance rating assures mechanical robustness. Designed for easy installation with pre-cut knock-outs and marking areas for labelling.

The Legrand Plexo Series Junction Box is ideal for electrical enclosures, distribution panels, and wiring junction needs in both commercial and industrial installations. Explore more industrial electrical enclosures and Junction Boxes on EnvMart for tailored solutions.
