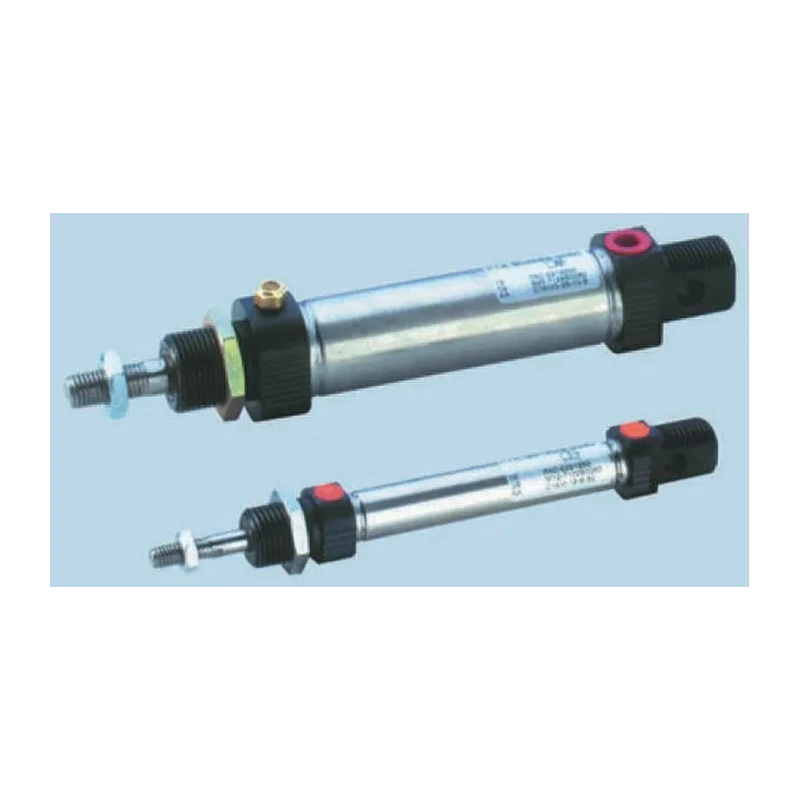

Parker 80 mm Pneumatic Piston Rod Cylinder, P1A Series, Double Acting, Both Ends Tapped Mount, Stainless P1A-S025DS-0080

Parker P1A-S025DS-0080 Pneumatic Piston Rod Cylinder from the P1A Series offers robust double acting functionality with an 80 mm stroke length and 212 mm overall length. The stainless steel construction of the barrel and piston rod provides excellent corrosion resistance, making it suitable for diverse industrial applications including manufacturing automation, fluid power systems, and pneumatic actuation tasks.

The cylinder features buffer cushioning at the end of stroke for enhanced durability and smooth operation. It is mounted both ends tapped allowing secure attachment in various orientations and configurations. Operating pressure is rated up to 10 bar max and it performs reliably within the temperature range of -20°C to +80°C.

Certified to ISO 6432 standards, this cylinder guarantees interchangeability and quality expected by industrial users. End covers are made from anodised aluminium to ensure strength while keeping unit weight low for easier handling. The piston rod includes a female thread sized M10, compatible with standard pneumatic fittings.

Seals composed of fluorocarbon and nitrile rubber provide effective sealing and longevity under compressed air mediums. The unit supports both lubricated and non-lubricated air supply, expanding suitability across pneumatic systems.

Stainless steel barrel and piston rod for corrosion resistance. Double acting piston design for controlled actuation. Buffer cushioning prolongs cylinder lifespan. Mount type: both ends tapped for flexible installation. Compatible with compressed air filtered and lubricated or non-lubricated media.

Operates under max 10 bar pressure up to 80°C max temperature. Meets ISO 6432 quality standards. Female piston rod thread M10. Compact size with 212 mm length.

This pneumatic piston rod cylinder is ideal for industrial manufacturing, automotive production lines, packaging machinery, and other automated pneumatic tool systems. The high-quality materials and compliance with industry standards ensure dependable performance in demanding environments.
