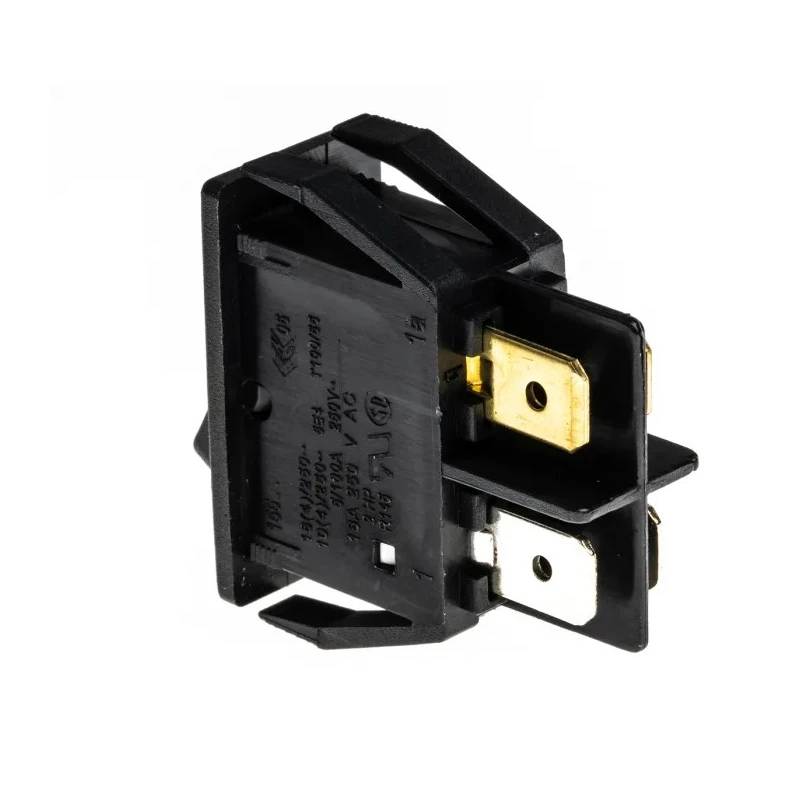

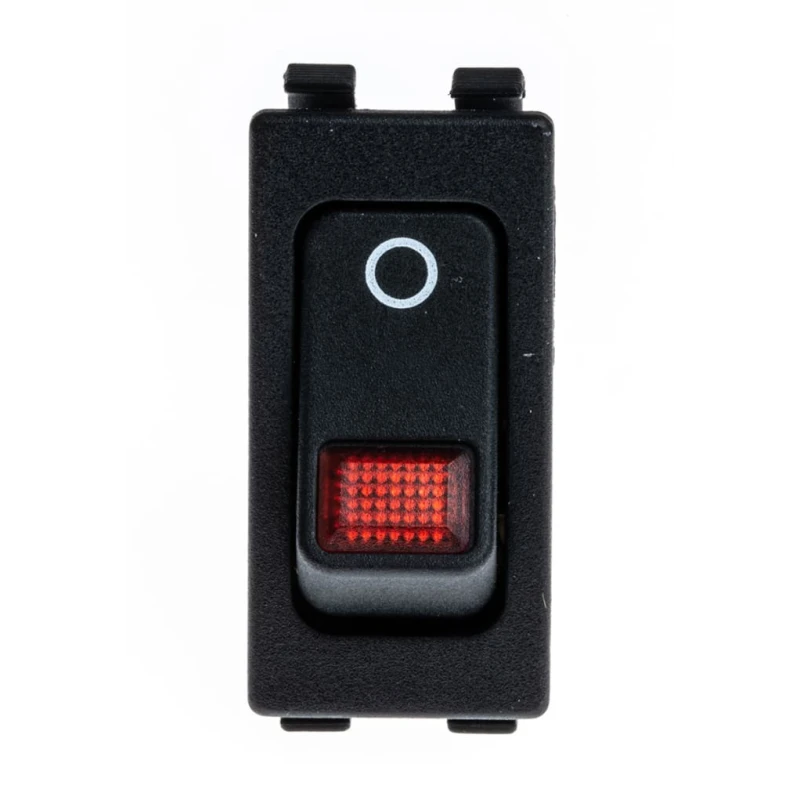

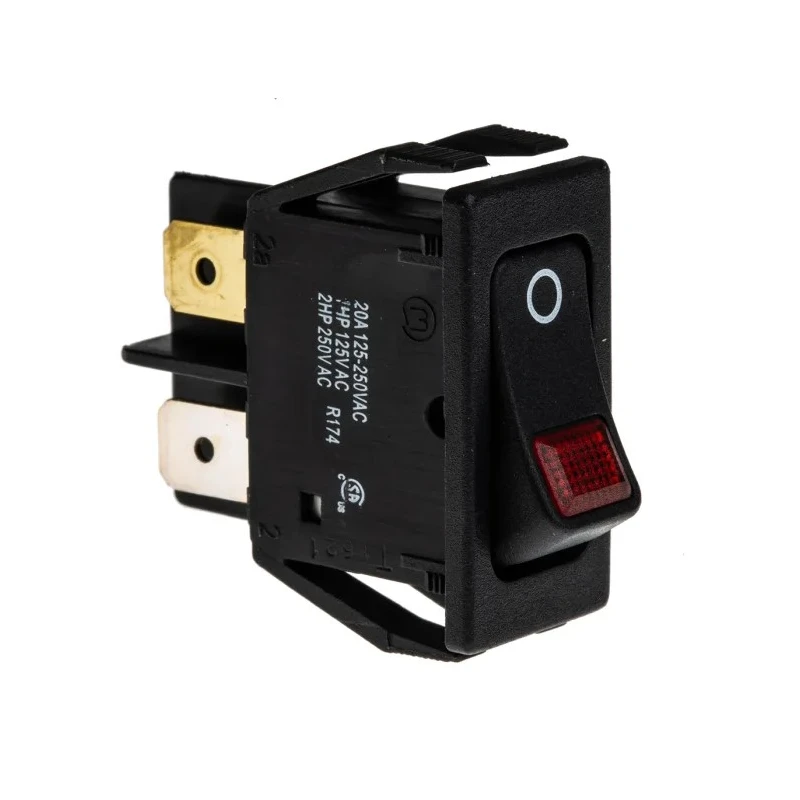

Marquardt Illuminated DPST On-Off On-Off Rocker Switch Panel 20A 250V AC 1555.3102

Marquardt 1555.3102 is an illuminated DPST (Double Pole Single Throw) On-Off On-Off rocker switch panel designed for various electrical and automation applications. Rated to handle currents up to 20 amps and voltages up to 250 volts AC, this switch ensures robust switching performance and durability.

The switch features a durable polyamide housing and a black rectangular actuator. It mounts easily on panels with a cutout size of 27.2 x 12.2 mm. Electrical connections are facilitated via quick connect Faston terminals sized at 6.3 mm, allowing for straightforward integration into control panels and devices.

The device is IP40 rated, providing protection against solid foreign objects while being suitable for indoor environments. Operating reliably within a temperature range of -25°C to 85°C, this rocker switch is suitable for demanding industrial and household environments.

Illumination in the actuator offers clear visual indication of switch status. The switch is engineered to meet several regulatory standards including CE, CSA, ENEC, RoHS, UL, and VDE, highlighting its quality and safety compliance.

This model belongs to Marquardt's 1550 series of rocker switches, known for their low contact resistance using silver contacts and high tolerance to capacitive inrush currents up to 100 amps. It is suitable for use in class II appliances and conforms to IEC/EN 60335-1 household appliance standards.

This rocker switch panel supports a high switching current of 20 amps and is rated for 250 volts AC. The actuator is rectangular, black in colour, and the housing is made of durable polyamide material. It features panel mounting with a quick connect terminal type and complies with IP40 ingress protection rating.

Operating temperature range extends from -25°C to 85°C, ensuring reliable functionality in varied conditions. The switch offers illuminated operation to indicate status clearly and has a panel cutout size of 27.2 x 12.2 mm.

The switch complies with major international standards and approvals including CE, CSA, ENEC, RoHS, UL, and VDE. Suitable for use in class II appliances and household devices according to IEC/EN 60335-1 standards. The contact resistance is low with silver contacts, ensuring efficient electrical conductivity.

Terminal connections utilize 6.3 mm Faston style quick connect terminals for ease of installation. This switch is part of the 1550 series, optimized for high inrush currents up to 100 amps and an operating force between 3 to 5 Newtons.

Ideal for industrial automation, electrical panels, and household appliance applications, this Marquardt rocker switch provides reliable and efficient switching. Browse EnvMart for more Marquardt electrical components and Rocker Switches to meet diverse industrial and commercial automation needs.
