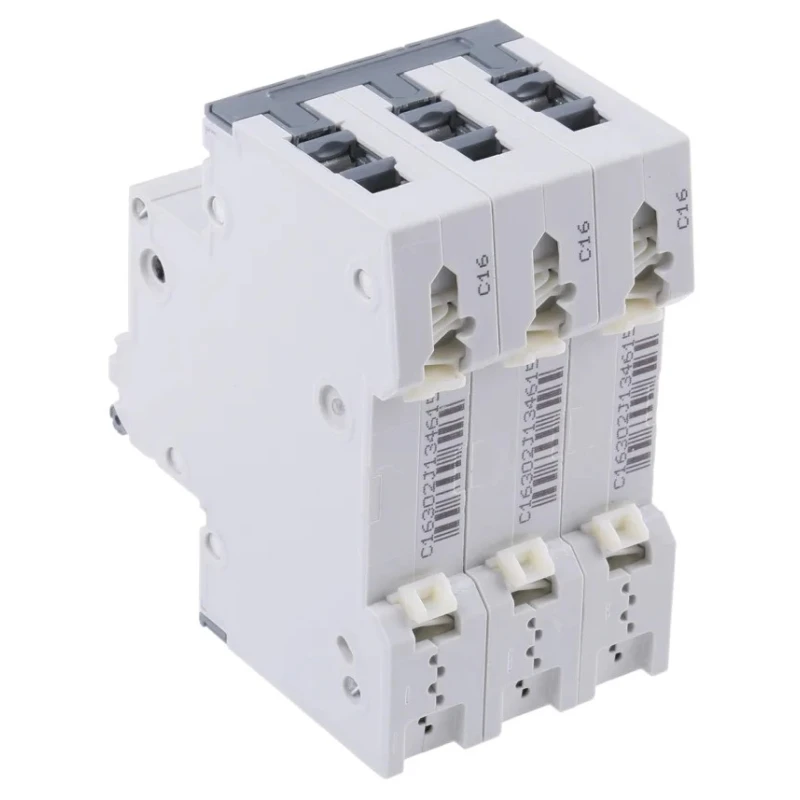

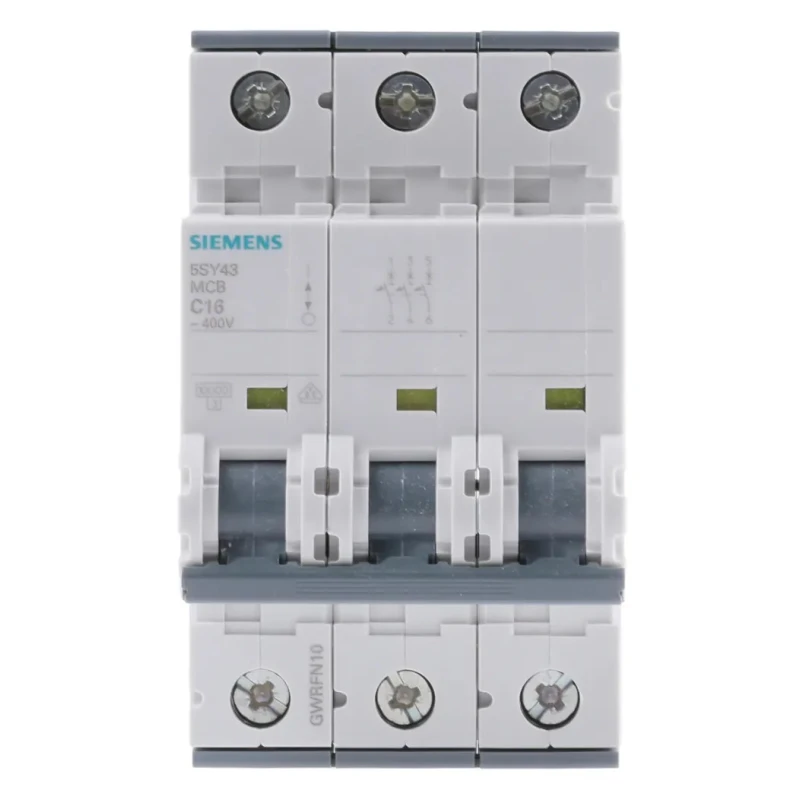

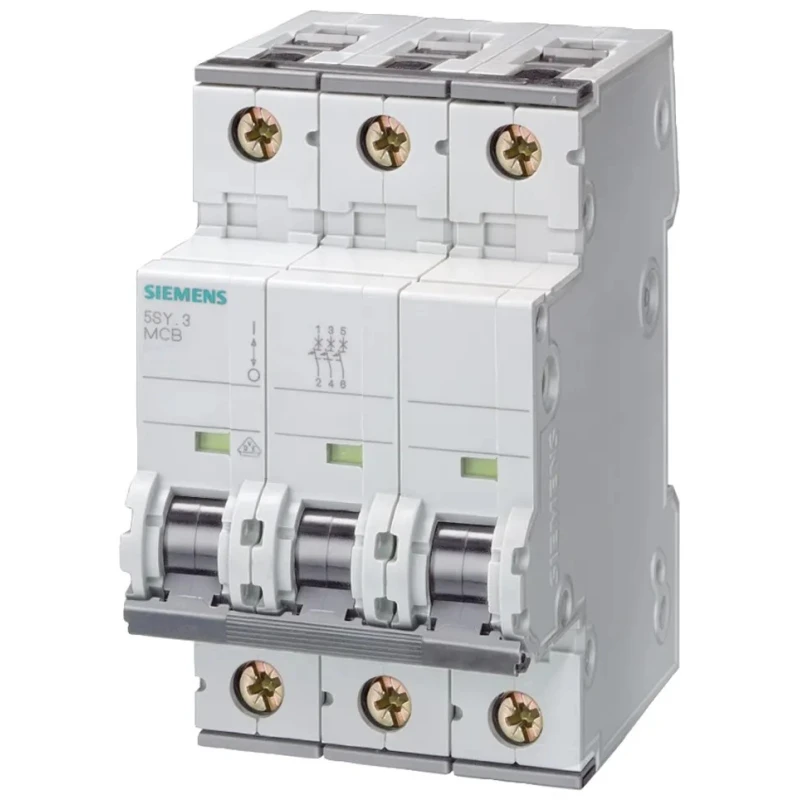

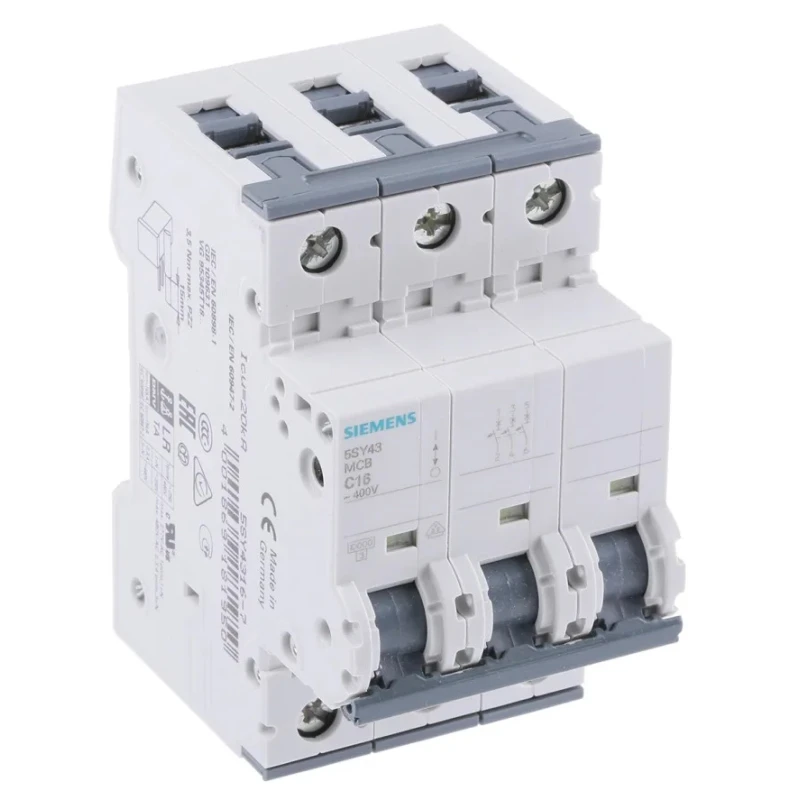

Siemens SENTRON Miniature Circuit Breaker 3-Pole 16A Type C 400V AC 60V DC 10kA Breaking Capacity 5SY4316-7

Siemens 5SY4316-7 Miniature Circuit Breaker 3-Pole 16A Type C is engineered for robust protection of 3-phase electrical installations in industrial, commercial, and residential environments. It is designed to automatically interrupt current flow in case of overload or short circuit, preventing damage to electrical components and enhancing safety.

This MCB supports rated AC voltage of 400V and DC voltage of 60V, making it suitable for diverse electrical systems. With a significant breaking capacity of 10kA, it can absorb high fault currents without sustaining damage, ensuring dependable performance during fault conditions.

Its Type C tripping characteristic provides protection tailored for standard inductive loads found in motors, transformers, and general purpose circuits. The 3-pole configuration allows simultaneous disconnection of all phases in 3-phase systems, essential for balanced load protection.

Compact in size with dimensions 90mm (height) x 53mm (width) x 76mm (depth), this circuit breaker fits easily into constrained electrical enclosures. It features screw terminals ensuring secure electrical connections and mounts on a standard DIN rail simplifying installation processes.

The unit has an IP20 ingress protection rating, giving protection against solid objects larger than 12mm while requiring complementary protection against moisture. Its mechanical service life is rated at 10,000 switching cycles, providing reliable long-term operation. Weighing 418g, it allows easy handling and installation.

Manufactured in Germany, this device complies with international standards including EN 60898 and IEC 60898, guaranteeing quality and safety in electrical circuit protection applications. Commonly used in industrial motors, manufacturing plants, and other electrical machinery, it enhances operational safety and equipment longevity.

Designed for 3 poles to protect 3-phase circuits effectively. Features a 16A current rating suitable for moderate load circuits. Type C tripping characteristic ideal for general applications. Operates at 400V AC and 60V DC voltages for versatile use.

Breaking capacity of 10kA ensures safety under high fault currents. Compact dimensions of 90mm height, 53mm width, and 76mm depth for space-saving installation. Mounts easily on a DIN rail for straightforward setup. Terminals use screw type connections for reliable wiring.

IP20 rating provides protection from solid objects over 12 mm but not from water. Manufactured in Germany ensuring high quality and reliability. Explore more quality circuit breakers and electrical protection devices at EnvMart.
