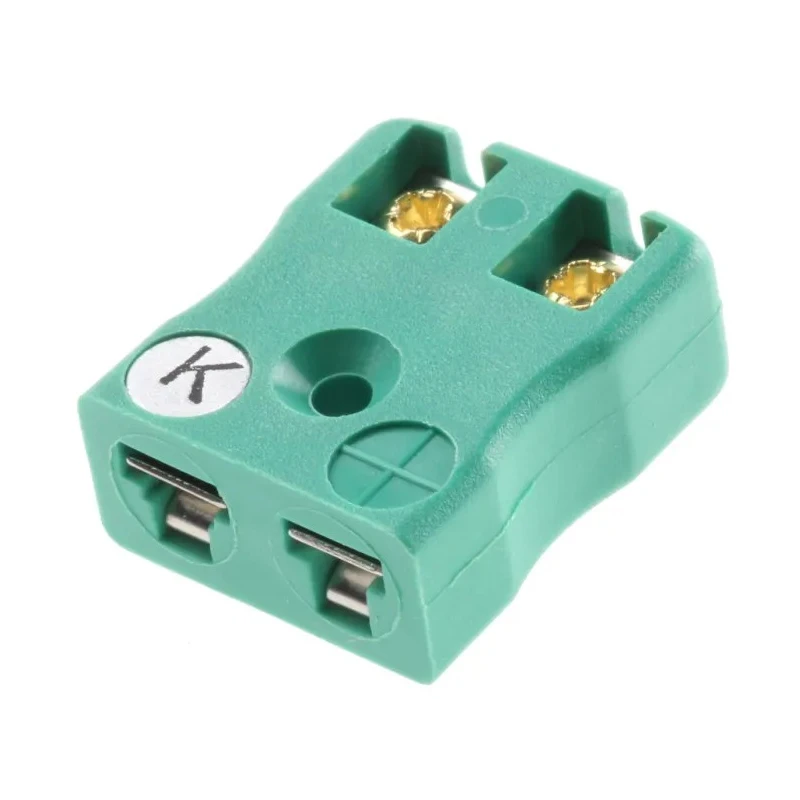

RS PRO Miniature PCB Socket Connector for Use with Type K Thermocouple IEC RoHS Compliant 381-7564
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Model | 381-7564 |
| Accessory Type | Miniature PCB Socket Connector |
| For Use With | Type K Thermocouple |
| Standards/Approvals | IEC, RoHS Compliant |
Key Features
- Constructed with solid brass PCB pins for direct mounting on printed circuit boards.
- Features a rugged glass-filled thermoplastic housing resistant to impact and temperatures up to 220°C.
- Includes provision for cold junction compensation (CJC) sensor integration.
- IEC color-coded housing clearly marks thermocouple type for easy identification.
- Compatible with stranded or solid wires and designed for flow solder assembly.
- Accepts polarized flat pin contacts ensuring an accurate and secure connection.
- Ideal for extending, connecting, or replacing Type K thermocouple sensors and cables.
- Complies with international quality standards including IEC and RoHS.
Product Description
RS PRO 381-7564 miniature PCB socket connector is specifically designed for use with Type K thermocouples, offering reliable and accurate temperature sensor connections in industrial, laboratory, and manufacturing environments. The connector is IEC standard compliant and RoHS certified, ensuring safe and environmentally responsible operations.

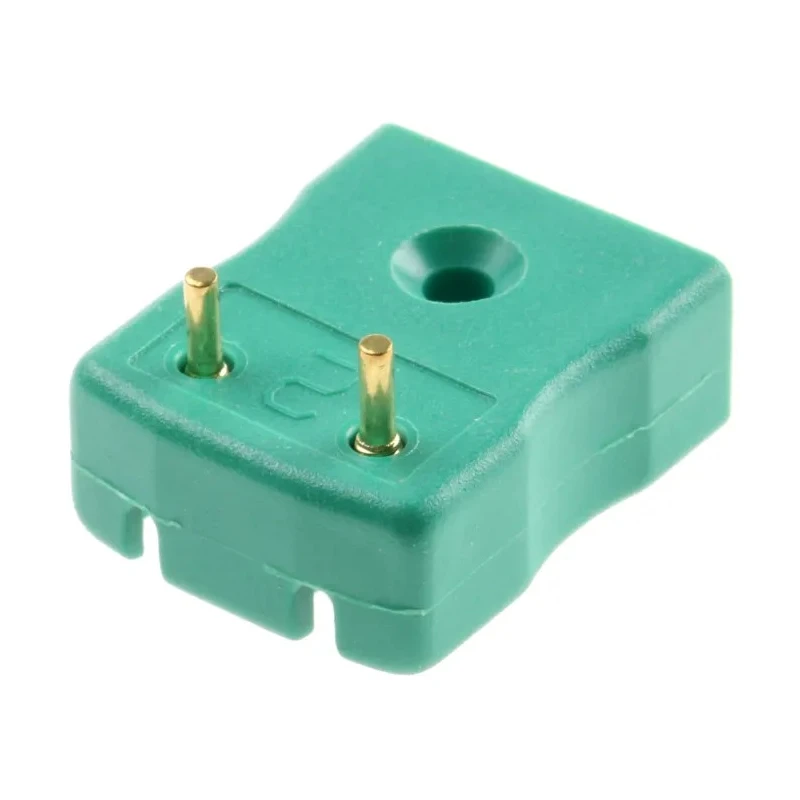

This miniature female PCB mount socket features solid brass PCB pins that allow for direct, secure mounting on printed circuit boards. Its rugged glass-filled thermoplastic body provides excellent impact resistance and can sustain operational temperatures up to 220°C. The housing is color-coded according to IEC standards with clear thermocouple type labeling for easy identification and error-free installation.
The connector includes a dedicated provision for a Cold Junction Compensation (CJC) sensor, enhancing temperature measurement accuracy. Its contact design accepts polarized flat pins to guarantee precise alignment and signal integrity. It supports both stranded and solid wire terminations and is compatible with flow solder assembly processes, making it highly versatile in various assembly lines and applications.
These miniature thermocouple socket connectors are extensively used across diverse sectors for connecting thermocouple probes to extension or compensating cables and for quick replacement of existing thermocouples. Their durable design and adherence to IEC and RoHS standards make them suitable for demanding temperature measurement tasks in industrial automation, HVAC systems, laboratory instrumentation, and manufacturing quality control.
Manufactured in the United Kingdom, this connector exemplifies high-quality construction and precision engineering. Constructed with solid brass PCB pins for secure board mounting. Rugged glass-filled thermoplastic housing withstands impact and temperatures up to 220°C.
Provision for Cold Junction Compensation (CJC) sensor integration. IEC color-coded housing with thermocouple type marking for identification. Accepts polarized flat pin contacts for accurate connections. Suitable for stranded and solid wire installations.
Compliant with IEC and RoHS standards for quality and environmental safety. Used in industrial, laboratory, HVAC, and manufacturing temperature measurements. Manufactured in the United Kingdom with reliable quality assurance.
Explore more products in EnvMart's Connector Accessory category for industrial and laboratory applications.
Explore more products in our Thermocouple Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector can sustain operational temperatures up to 220°C.
It is specifically designed for use with Type K thermocouples.
The connector features solid brass PCB pins and a rugged glass-filled thermoplastic housing.
Yes, it is IEC standard compliant and RoHS certified, ensuring safety and environmental responsibility.
It includes a dedicated provision for integrating a Cold Junction Compensation (CJC) sensor, which enhances temperature measurement accuracy.
It supports both stranded and solid wire terminations, making it versatile for various applications.
The IEC color-coded housing clearly marks the thermocouple type for easy identification and error-free installation.
Yes, it is designed for compatibility with flow solder assembly processes.
This miniature PCB socket connector is manufactured in the United Kingdom.
It is widely used in industrial automation, HVAC systems, laboratory instrumentation, and manufacturing quality control for temperature measurements.
It accepts polarized flat pin contacts, ensuring accurate alignment and signal integrity for a secure connection.
The model number is 381-7564.
