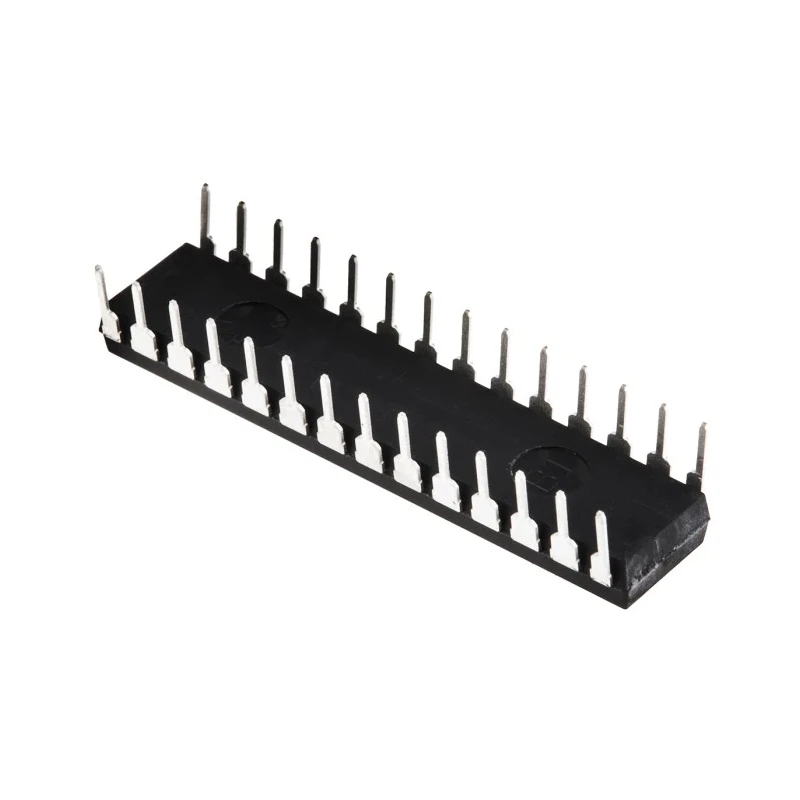

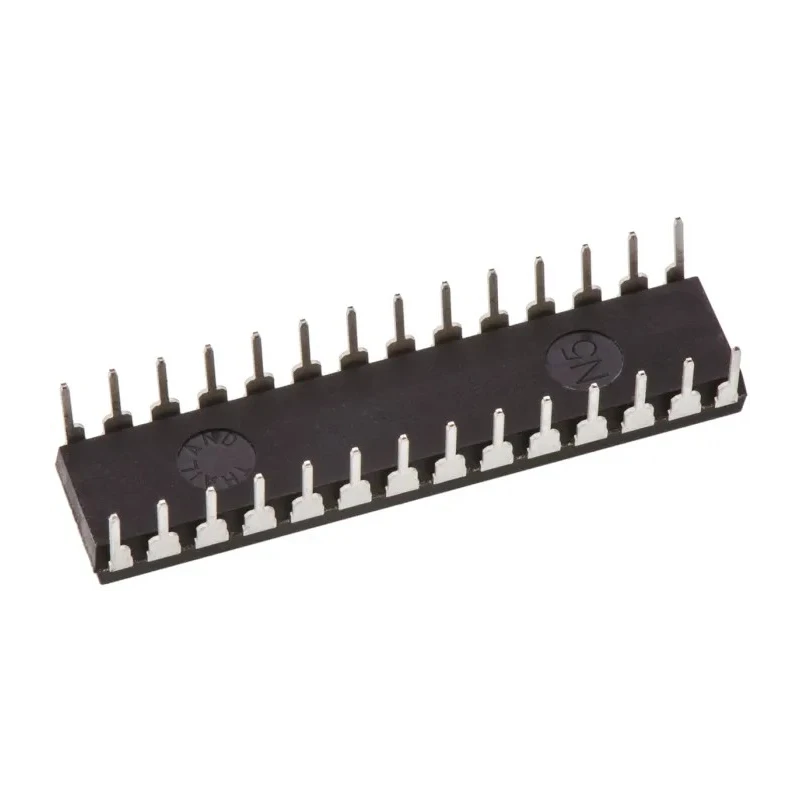

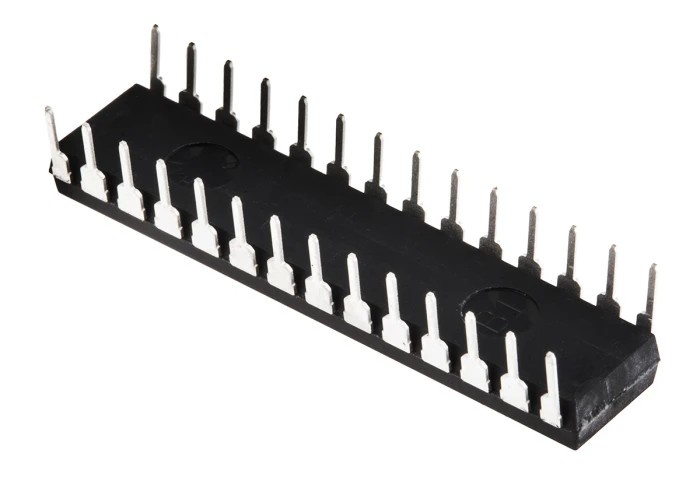

Microchip 8-bit PIC Microcontroller PIC16F872-I/SP 20 MHz 3.5kB FLASH 28-Pin SPDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.43mm |
| Length | 35.18mm |
| Model | PIC16F872-I/SP |
| Width | 7.49mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 22 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 5 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- This microcontroller operates with an 8-bit PIC architecture.
- It is housed in a 28-Pin SPDIP through-hole package.
- Supports 22 programmable I/O pins and 5-channel 10-bit ADCs.
- The device has a RAM size of 128 bits and 64 bytes of EEPROM.
- Operating voltage range is 2V minimum to 5.5V maximum.
- Designed to operate across a temperature range from -40°C to 85°C.
- Incorporates power management features like Power-On Reset and Brown-Out Reset.
- Supports In-Circuit Serial Programming and In-Circuit Debug capabilities.
Product Description
Microchip PIC16F872-I/SP is an 8-bit PIC microcontroller designed with the Mid-Range core architecture. It operates at a maximum CPU speed of 20 MHz and features 3.5 kB of FLASH program memory, 128 bits of RAM, and 64 bytes of EEPROM, making it ideal for embedded applications requiring moderate processing power and efficient memory usage.
Packaged in a durable 28-pin SPDIP through-hole format, this microcontroller offers 22 programmable input/output pins and incorporates five 10-bit analogue-to-digital converters, supporting precise sensor data acquisition. It operates within a supply voltage range of 2 V to 5.5 V and is rated for temperatures from -40°C to 85°C, suitable for industrial and commercial environments.
Key features include robust power management such as Power-On Reset, Brown-Out Reset, Power-Up Timer, and Watchdog Timer, ensuring reliability under varied conditions. The device supports In-Circuit Serial Programming and Debugging, facilitating development and troubleshooting workflows.
The PIC16F872 also integrates multiple timers, including two 8-bit and one 16-bit timer, and communication interfaces like synchronous serial ports with SPI and I2C protocols, allowing versatile connectivity options.
This microcontroller supports 35 RISC instructions and an 8-level deep hardware stack for efficient task handling. Its EEPROM and FLASH memory organize program storage and data retention effectively. Applications span industrial controls, consumer electronics, and embedded systems requiring compact microcontrollers with analog and digital features.
The SPDIP package enhances ease of prototyping and manual PCB assembly with through-hole mount capability. It complies with typical industrial operating standards but does not carry specific certifications.
Microchip products are widely trusted for reliability and flexibility in embedded design projects. Explore our range of Microcontrollers and accessories at EnvMart for comprehensive development solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this microcontroller is 20 MHz.
It features a program memory size of 3.5 kB, which is organized as FLASH memory.
This microcontroller supports 22 programmable input/output pins.
The operating voltage range for this model is from 2 V to 5.5 V.
It is designed to operate within a temperature range of -40°C to 85°C.
This microcontroller is housed in a 28-pin SPDIP through-hole package.
The PIC16F872-I/SP incorporates five 10-bit analogue-to-digital converters (ADCs).
The dimensions of this microcontroller are 35.18 mm in length, 7.49 mm in width, and 3.43 mm in height.
It includes three timers: two 8-bit timers and one 16-bit timer.
Yes, it supports In-Circuit Serial Programming and In-Circuit Debug capabilities.
The RAM size of the PIC16F872-I/SP is 128 bits.
The maximum power dissipation for this model is 1 W.
