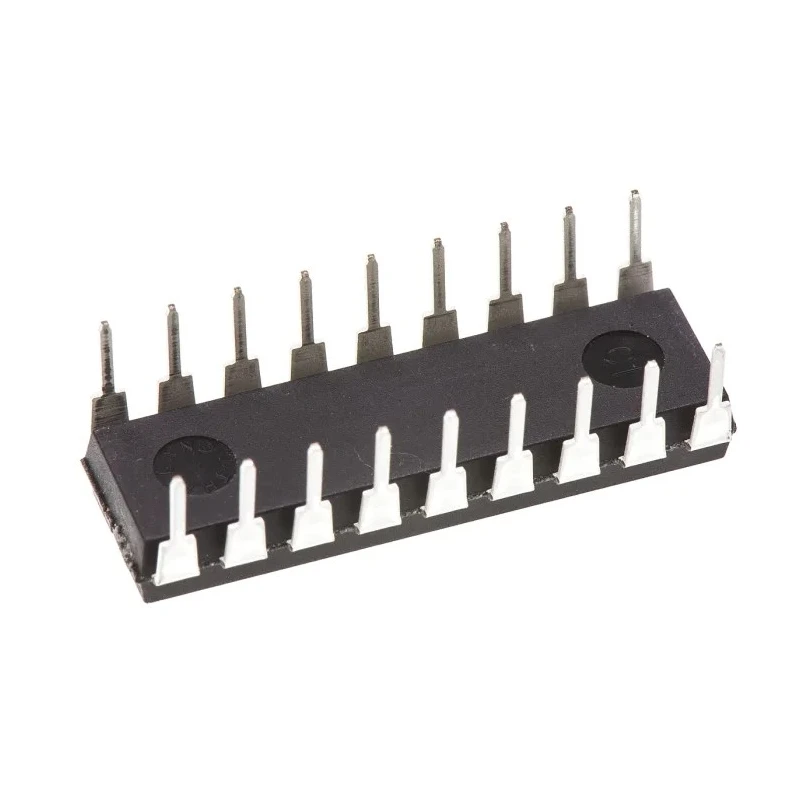

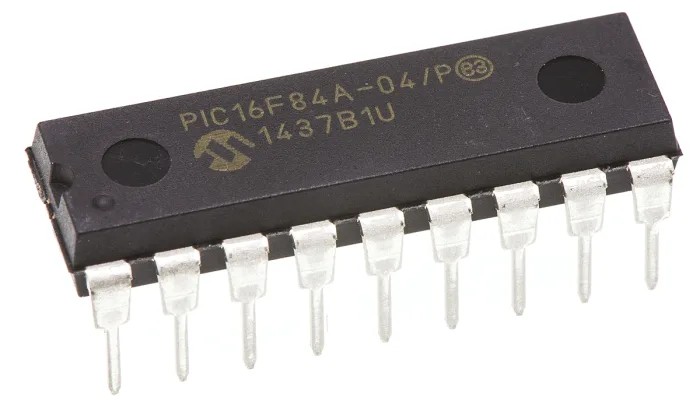

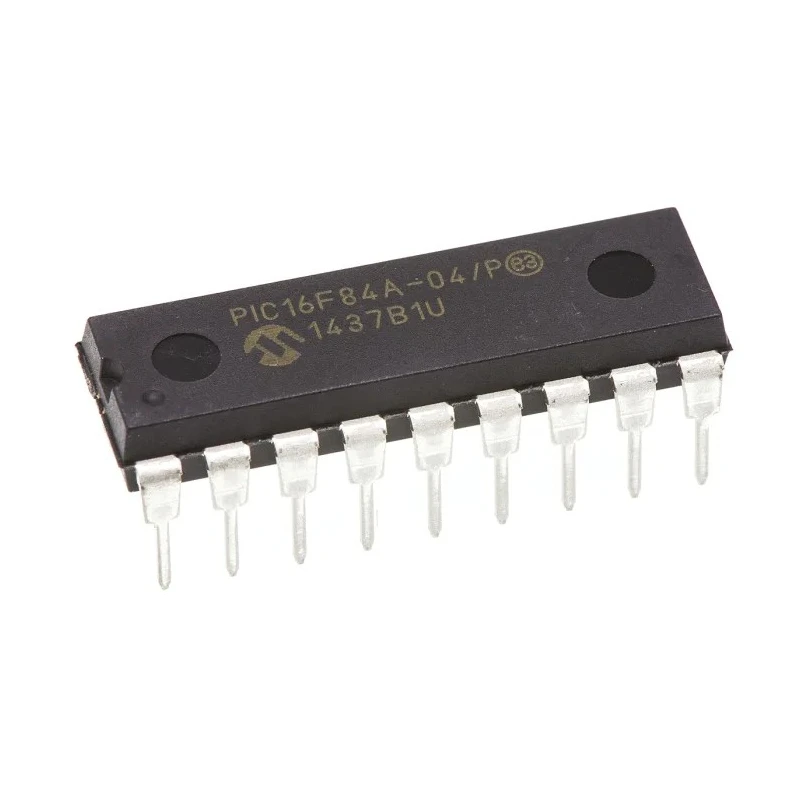

Microchip 8-Bit PIC16F Microcontroller 4 MHz 1kB Flash 18-Pin PDIP PIC16F84A-04/P
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 3.68mm |
| Length | 22.99mm |
| Model | PIC16F84A-04/P |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Ram size | 68bit |
| Interface Type | Graphical User Interface |
| Standards/Approvals | RoHS |
| Pin Count | 18 |
| Maximum Supply Voltage | 6V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 1kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 13 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 0 |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum clock frequency of 4 MHz for efficient processing.
- Features 1 kB of FLASH program memory and 68 bits of RAM.
- Includes 13 programmable input/output pins for versatile interfacing.
- Supports through-hole mounting with an 18-pin PDIP package.
- Operates within temperature range 0°C to 70°C to suit industrial environments.
- Maximum supply voltage is 6 V with a minimum supply voltage of 2 V.
- Built on RISC architecture with a 35-instruction set for optimized control.
- Includes one 8-bit timer and power-saving features like Power-On Reset and Watchdog Timer.
Product Description
Microchip PIC16F84A-04/P is a compact 8-bit microcontroller designed for embedded system applications, featuring a Flash memory of 1 kB and operating at 4 MHz clock speed. It comes in an 18-pin PDIP package suitable for through-hole mounting, providing 13 programmable input/output pins for flexible use.
Designed with Microchip's Mid-Range PIC architecture, this microcontroller supports up to 5 MIPS performance with a 35 instruction set and an 8-level deep hardware stack. The device includes 68 bits of RAM, an 8-bit timer, and supports various reliability features such as Power-On Reset (POR), Power-Up Timer (PWRT), Oscillator Start-Up Timer (OST), Brown-Out Reset (BOR), and Watchdog Timer (WDT).
The device is engineered to operate within 0°C to 70°C ambient temperature, with a maximum supply voltage of 6 V and a minimum of 2 V, making it suitable for industrial, commercial, and educational projects, including automation control, instrumentation, and communication devices.
Maximum clock frequency of 4 MHz for precise timing operations. 1 kB Flash program memory supporting in-circuit serial programming (ICSP). 13 programmable I/O pins for device interfacing and control. Robust operating voltage range from 2 V to 6 V.
Reliable operation with integrated watchdog and brown-out reset features. Compact dimensions suitable for space-constrained applications. Compliant with RoHS environmental standards. Ideal for laboratory, industrial control systems, and embedded design.
The package is designed for ease of integration on printed circuit boards via through-hole mounting, with dimensions height 3.68 mm, width 6.6 mm, and length 22.99 mm. Country of origin is Thailand.
Explore the Microchip product range and Microcontroller solutions on EnvMart for reliable embedded system components optimized for performance and efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the Microchip PIC16F84A-04/P is 4 MHz, allowing for efficient processing in embedded applications.
This model features 1 kB of FLASH program memory, suitable for various embedded system applications.
The PIC16F84A-04/P includes 13 programmable input/output pins, providing versatility for interfacing.
It operates within a temperature range of 0°C to 70°C, making it suitable for industrial environments.
This unit comes in an 18-pin PDIP package, designed for through-hole mounting on printed circuit boards.
The microcontroller operates with a minimum supply voltage of 2 V and a maximum supply voltage of 6 V.
This model is built on RISC architecture, featuring a 35-instruction set for optimized control.
It includes 68 bits of RAM, which supports its processing capabilities in embedded applications.
The dimensions of this microcontroller are height 3.68 mm, width 6.6 mm, and length 22.99 mm.
This microcontroller includes features such as Power-On Reset, Watchdog Timer, and Brown-Out Reset for enhanced reliability.
Yes, it is compliant with RoHS environmental standards, ensuring it meets safety and environmental regulations.
It is suitable for various applications including automation control, instrumentation, and communication devices.
