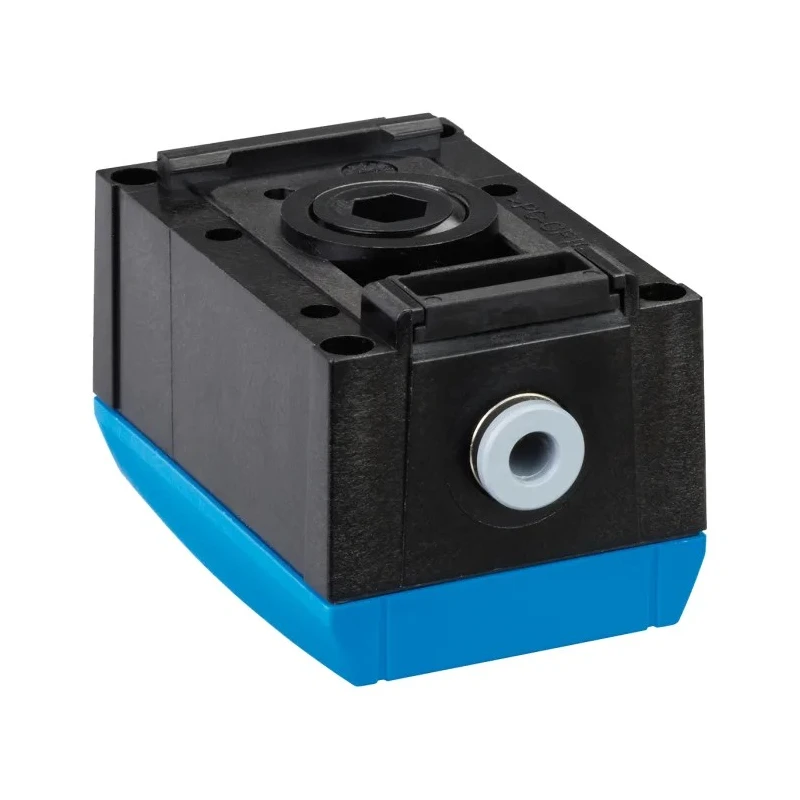

SICK Pressure Switch with Integrated Display and Transmitter, PNP IO Link Output, 30V DC, -1 to 1 bar PAC50-BCD / 1062967

SICK PAC50-BCD / 1062967 Pressure Switch combines an integrated pressure switch, transmitter, and digital display for concise and clear monitoring of pneumatic and vacuum system pressures. Operating at 30V DC, it covers a pressure range from -1 bar (vacuum) up to 1 bar (positive pressure), making it versatile for many industrial pneumatic control systems and vacuum grippers.

The device features up to two configurable switch outputs supporting PNP, NPN, or push-pull modes with IO Link V1.1 communication, enhancing connectivity and customization. The analogue output options include 4-20mA or 0-10V DC signals to integrate with process control systems seamlessly.

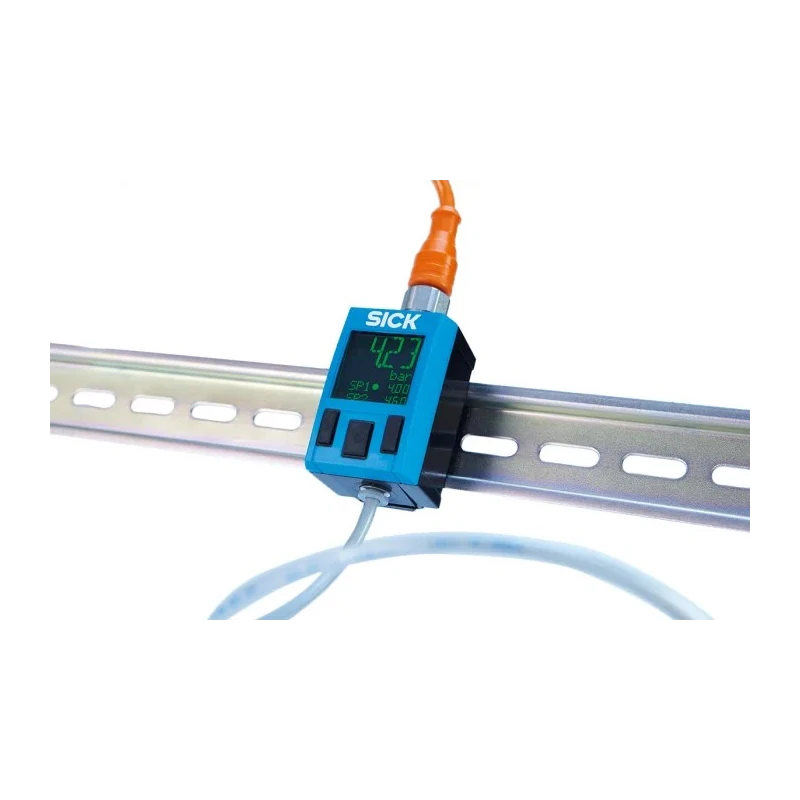

The robust IP65 and IP67 rated enclosure ensures protection against dust and water ingress, suitable for industrial environments. Mounting options include DIN rail or panel mounting (panel mounting kit available separately), facilitating easy installation.

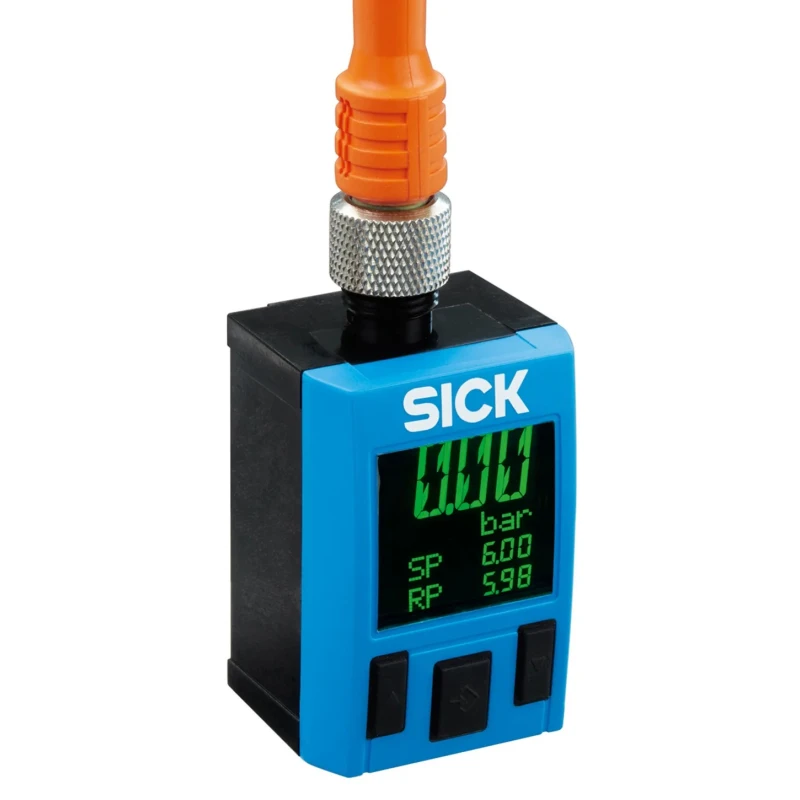

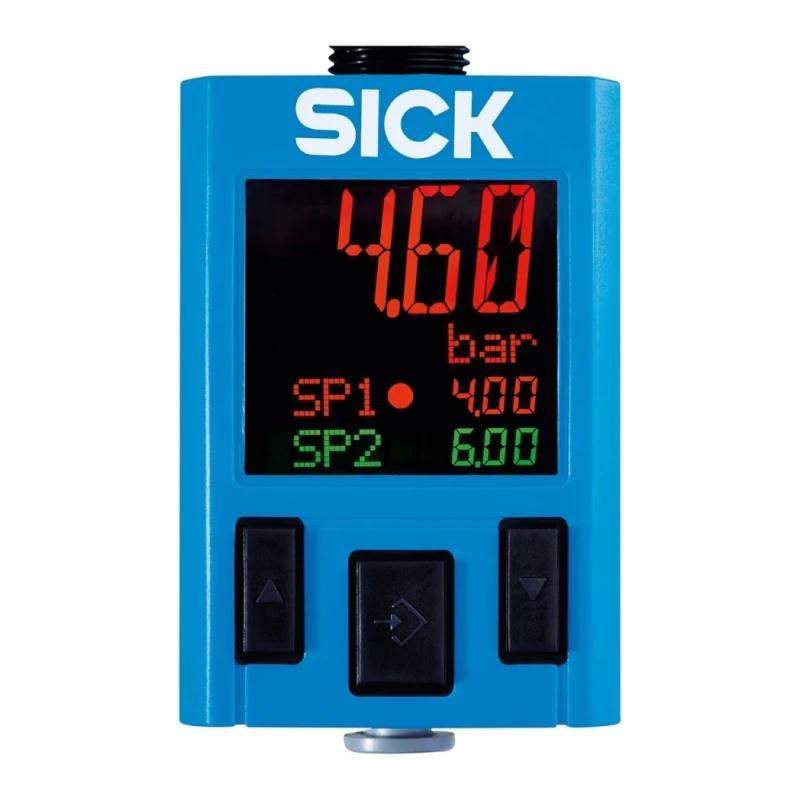

The unit includes three large front push buttons for simple programming, with a clear bi-colour display indicating both pressure and set points simultaneously. The device automatically detects analogue input types, simplifying commissioning and reducing inventory complexity.

The PAC50 series supports female port connections with metric and G thread standards, suited for air media with both negative and positive pressures. Temperature operating limits range from 0°C to 60°C.

Dimensions of this pressure switch are compact, with 63 mm height, 35 mm width, and 35 mm depth, making it fit for space-constrained applications. The device’s IEC/EN standards compliance assures quality and reliability.

This pressure switch finds applications in pneumatic control systems, vacuum handling, cylinder pressure regulation, and other industrial automation processes requiring precise pressure monitoring and control.

Overall, the SICK PAC50-BCD / 1062967 is a durable, flexible pressure switch solution with multiple outputs and a user-friendly interface, designed for demanding industrial and laboratory applications.

Explore more industrial pneumatic instrumentation and related sensors from EnvMart to complement your automation setup. Integrated Pressure Switch, transmitter, and display for clear system information. Displays applied pressure and set points simultaneously with bi-colour display.

Switch outputs configurable as NPN, PNP, or push-pull with IO Link V1.1 support. Analogue outputs configurable for 4-20mA or 0-10V signals. Robust IP65 and IP67 rated casing suitable for harsh industrial environments. Mounts easily on DIN rail or panel using accessories.

M12 standard electrical connection for efficient wiring. Suitable for air media handling negative and positive pressures. Operating temperature range from 0°C to 60°C with LED indicator for status. Compact design with dimensions 63mm height, 35mm width, and 35mm depth.
