SICK Pressure Switch for -1 bar to 1 bar Range 30V DC, PNP, IO Link, IP67 PAC50-BGD PAC50-BGD / 1062961
Specifications
| Country of Origin | Thailand |
|---|---|
| Voltage | 30V dc |
| Brand | SICK |
| Maximum Operating Pressure | 1 bar |
| Height | 63mm |
| Model | PAC50-BGD / 1062961 |
| Depth | 35mm |
| IP Rating | IP67, IP65 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | PAC50 |
| Maximum Operating Temperature | 60°C |
| Pressure Type | Positive Pressure, Negative Pressure |
| Switch output | PNP, IO link |
| Minimum Operating Temperature | 0°C |
| Analogue Output | 0 to 10 V dc, 4 to 20 mA |
| Standards/Approvals | IEC/EN |
| Connection Thread Standard | Metric, G |
| Minimum Operating Pressure | -1bar |
| Port Gender | Female |
| Suitable Medias | Air |
Key Features
- Integrated pressure switch and transmitter with clear bi-colour display.
- Switch outputs configurable as PNP, NPN, push-pull with IO Link V1.1 support.
- Selectable analogue output between 0-10 V DC and 4-20 mA signals.
- Rugged casing supports DIN rail and panel mounting options.
- Suitable for both positive and negative pressure applications.
- Operating temperature range from 0°C to 60°C with IP67/IP65 ratings.
- Compact size with dimensions 63 mm height, 35 mm width and depth.
- Equipped with LED indicators and standard M12 electrical connection.
Product Description
The SICK PAC50-BGD Pressure Switch combines an integrated pressure switch, transmitter, and display into a single compact device designed to handle pressure ranges from -1 bar to 1 bar. Operating at 30V DC, this device offers versatility with configurable switch outputs including PNP, NPN, push-pull, and supports IO Link V1.1 communication protocol, making it suitable for modern industrial pneumatic and vacuum control systems.

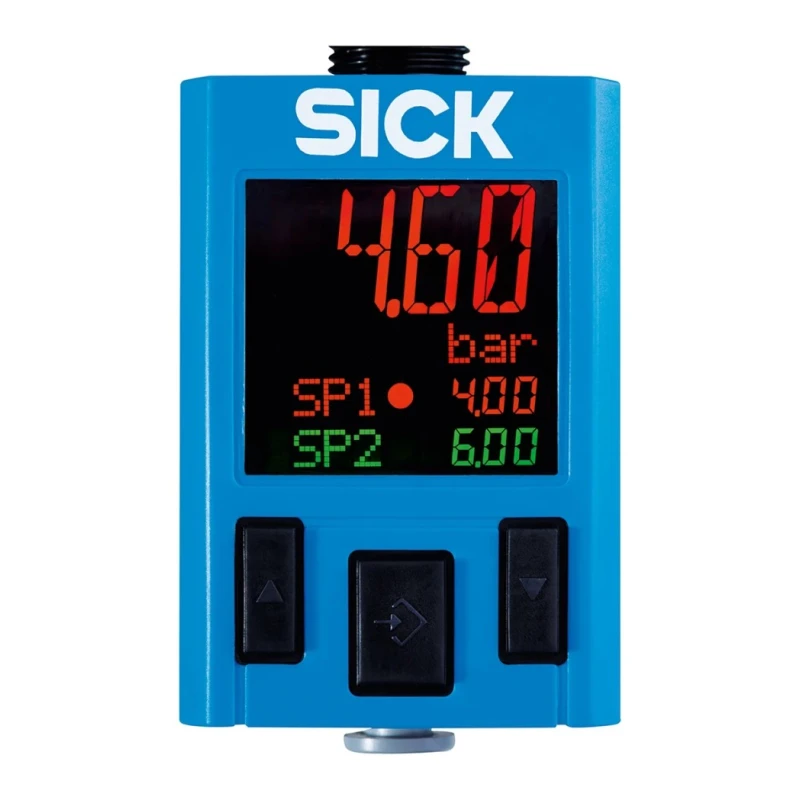

Its clear, bi-colour display simultaneously shows applied pressure and set points, enhancing system transparency and diagnostics. The device’s rugged casing and IP67/IP65 ingress protection ensure reliable functioning in demanding industrial environments including manufacturing, laboratory, HVAC, pneumatic control, and vacuum applications.
Setup and commissioning are streamlined by user-friendly programming using three front panel buttons. Mounting options include integrated DIN rail attachment and optional panel or wall mounting kits for flexible installation.
The analogue output can be selected between voltage (0 to 10 V DC) or current (4 to 20 mA) formats, which automatically detect the required signal type during installation simplifying setup and reducing inventory complexity.

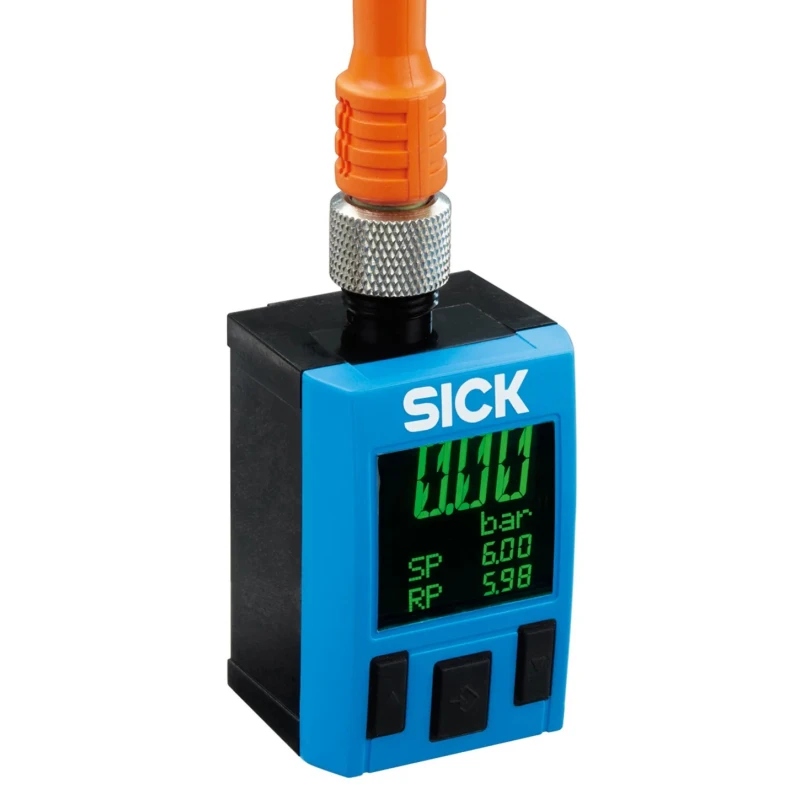

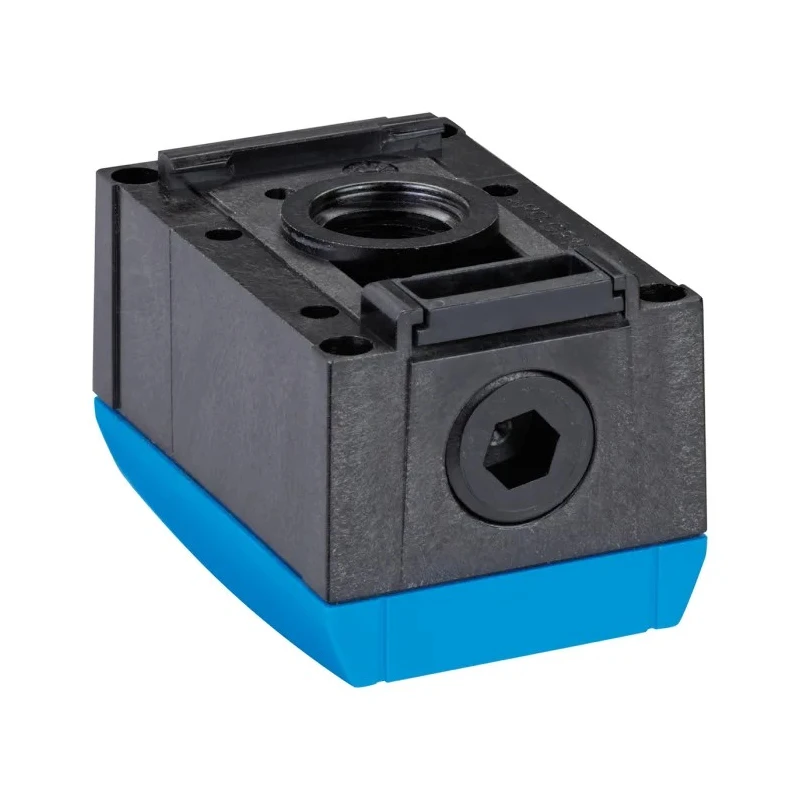

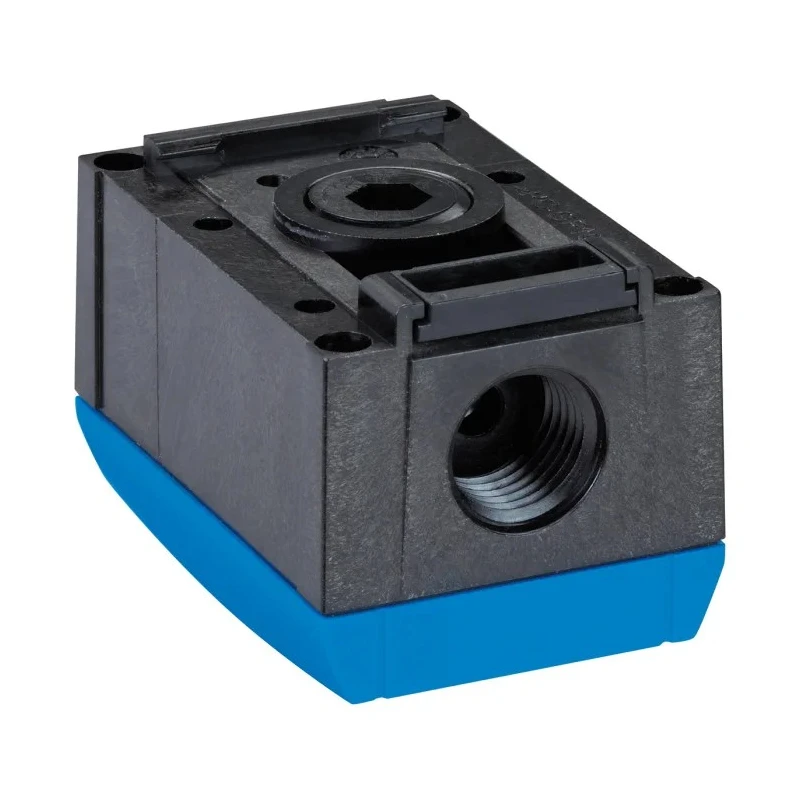

The PAC50-BGD features dual female G metric threaded ports, a standard M12 electrical connection, and LED indicators for status signaling. Its compact dimensions of 63 mm height, 35 mm width, and 35 mm depth facilitate installation in confined spaces.
Designed and manufactured in Thailand, this product complies with IEC/EN standards for safety and functionality. It does not carry hazardous area certification but is optimized for industrial pneumatic and vacuum system control, offering reliability and ease of integration.
Applications include pneumatic control systems, vacuum grippers, cylinder pressure regulation, and other industrial automation scenarios requiring precise pressure switching and measurement under both positive and negative pressure conditions.
Integrated pressure switch, transmitter, and bi-colour display. Configurable PNP, NPN, push-pull switch outputs supporting IO Link V1.1. Analogue output selectable from 0-10 V DC or 4-20 mA. DIN rail mounting and optional panel/wall mounting kit.
Compact dimensions: 63mm (H) x 35mm (W) x 35mm (D). Ingress protection IP67 and IP65 for harsh environments. M12 electrical connection with female metric G thread ports. Operating temperature range 0°C to 60°C. Complies with IEC/EN standards.
Explore EnvMart’s comprehensive collection of Pressure Switches to find precise and reliable components for industrial pneumatic and vacuum systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a pressure range of -1 bar to 1 bar.
It supports configurable switch outputs including PNP, NPN, and push-pull, along with IO Link V1.1 communication protocol.
The PAC50-BGD operates at a voltage of 30V DC.
The device has compact dimensions of 63 mm in height, 35 mm in width, and 35 mm in depth.
It can operate within a temperature range of 0°C to 60°C.
It is suitable for use with air and can handle both positive and negative pressure applications.
This model can be mounted using an integrated DIN rail attachment or optional panel/wall mounting kits.
The analogue output can be selected between 0-10 V DC and 4-20 mA signals.
The PAC50-BGD has an ingress protection rating of IP67 and IP65, making it suitable for harsh environments.
It is equipped with a standard M12 electrical connection and dual female G metric threaded ports.
The product complies with IEC/EN standards for safety and functionality.
It is designed for pneumatic control systems, vacuum grippers, and cylinder pressure regulation in industrial automation scenarios.
