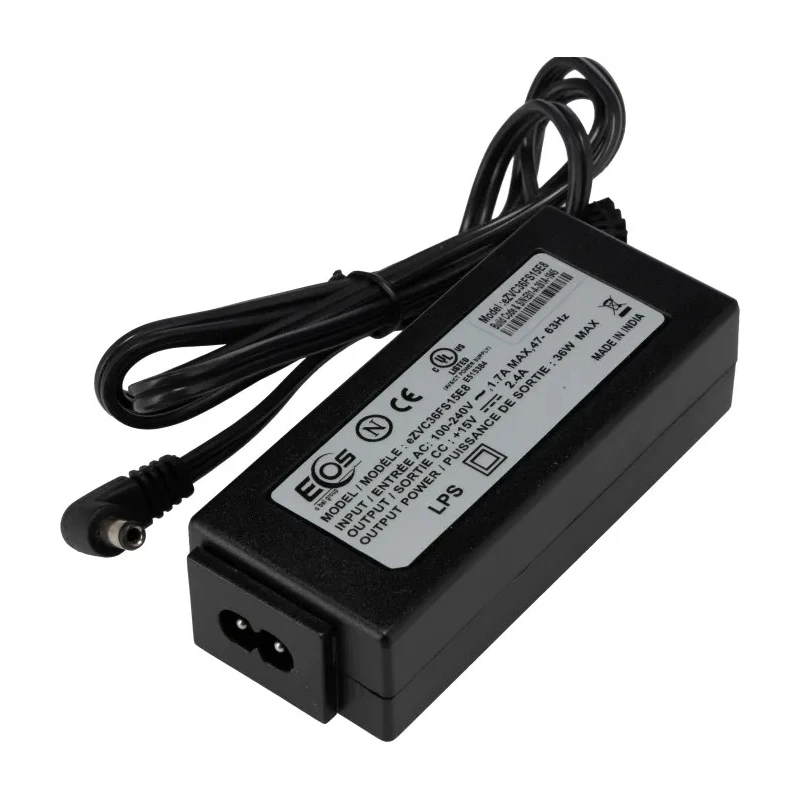

EOS AC/DC Adapter 36W 15V DC Output 2.4A 2.54 x 5.49 mm Centre Positive LFZVC36FS15E

Free Delivery in India | Lowest Global Shipping Charges

EOS AC/DC Adapter 36W 15V DC Output 2.4A 2.54 x 5.49 mm Centre Positive LFZVC36FS15E



Category Power Supplies Brand EOS Condition New

Specifications

Country of Origin	India
Brand	EOS
Power	36W
Efficiency	90%
Length	88.9mm
Model	LFZVC36FS15E
Depth	24.57mm
Cable Length	1000mm
Width	44.7mm
Series	LFZVC36
Maximum Operating Temperature	40°C
Sub Type	AC-DC Converter Power Supplies
Load Regulation	±5 %
Minimum Operating Temperature	0°C
Number of outputs	1
Maximum Input Voltage	264V ac
Output Voltage	15V dc
Minimum Input Voltage	198V ac
Output Connector Type	2.54 x 5.49 mm Centre Positive
Input Connector Type	IEC 320-C8
Adapter Current	2.4A
Energy Efficiency Level	III
RS PRO AC/DC AdapterBrand	RS PRO
Regulated/Unregulated	Regulated
PSU, auto select I/P, 110Vac, 230Vac, O/P 15V, 2A, 30WBrand	NEUTRAL

Key Features

This power supply has a 36 watt power rating suitable for various electronic applications.
It features a 15V DC output voltage with a current of 2.4 amperes.

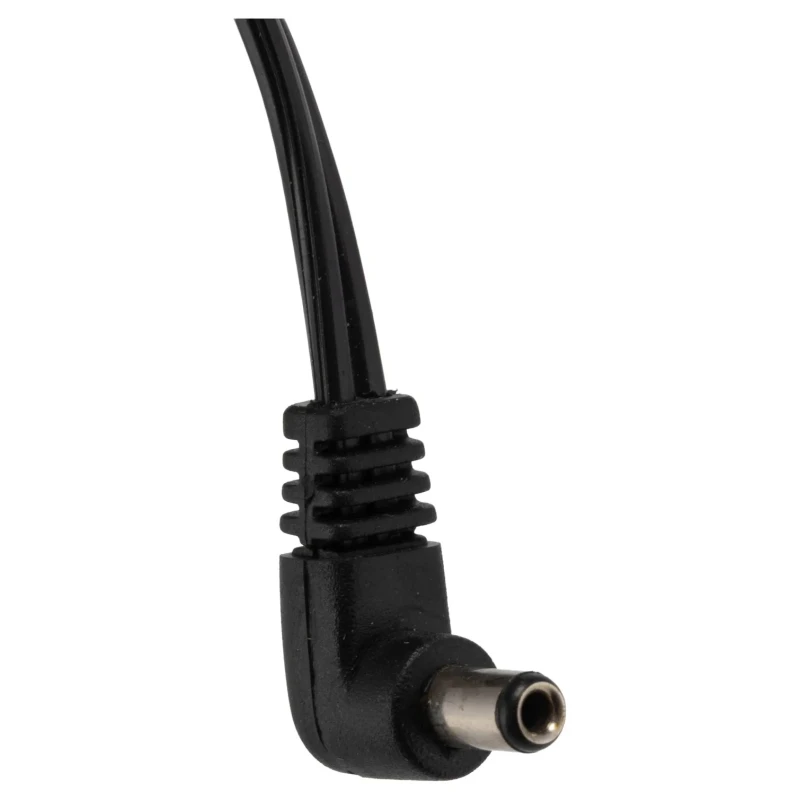

The adapter includes a 2.54 x 5.49 mm centre positive output connector.
The cable length for this adapter is 1000 mm to allow flexible placement.
Designed to operate within 0°C to 40°C, ensuring reliability in a range of environments.
It meets international standards including CSA C22.2 No. 60950, EN 60950, IEC 60950, and UL 60950 for safety and quality compliance.
The power supply boasts a 90% efficiency rating with energy efficiency level III compliance.

Product Description

EOS LFZVC36FS15E is a highly efficient AC/DC adapter power supply with a 36 watt output, delivering 15V DC at 2.4A with a 2.54 x 5.49 mm centre positive connector. This regulated switch mode desktop power supply is engineered for electronic component applications requiring a reliable and stable DC power source.

Its universal auto-select input supports a wide range of AC voltages from 198V to 264V, enabling global compatibility. Designed with a compact form factor featuring dimensions of 88.9 mm in length, 44.7 mm in width, and 24.57 mm in depth, it is well suited for desktop and embedded system uses.

The device includes EMI/RFI filtering to meet EMC requirements including EN55022-B and FCC2/15-B standards, ensuring minimal interference in sensitive environments. Operating temperature ranges between 0°C and 40°C make it suitable for typical office or industrial ambient temperatures.

This power supply is compliant with safety approvals including UL, VDE, and NORDICS certifications, ensuring robust electrical and fire safety. It also features fully regulated output with ±5% load regulation for stable operation under varying loads.

36W power output with regulated 15V DC voltage at 2.4A current. 2.54 x 5.49 mm centre positive connector with a 1 meter output cable. Universal AC input voltage range 198 to 264V AC with IEC 320-C8 connector. Compact dimensions: 88.9 mm (L) x 44.7 mm (W) x 24.57 mm (D).

EMI/RFI filtered outputs compliant with EN55022-B and FCC2/15-B. Energy efficiency level III with approximately 90% efficiency rating. Operating temperature range: 0°C to 40°C. Meets international safety standards including UL 60950, IEC 60950, and CSA C22.2 No. 60950.

Manufactured in India, this EOS LFZVC36FS15E power supply is ideal for applications in electronic devices, control systems, and laboratory equipment requiring a dependable AC to DC conversion.
