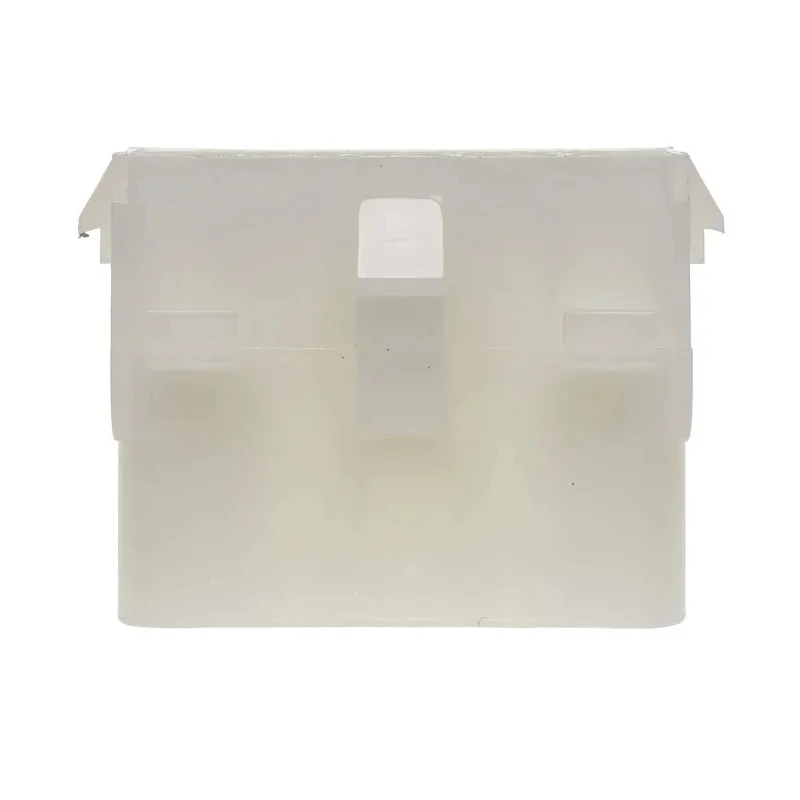

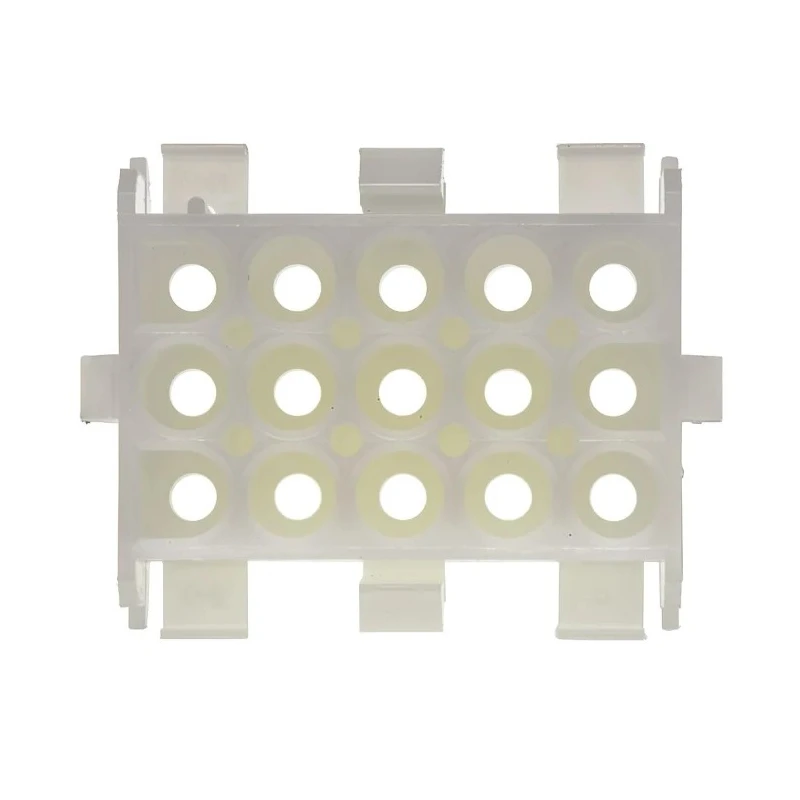

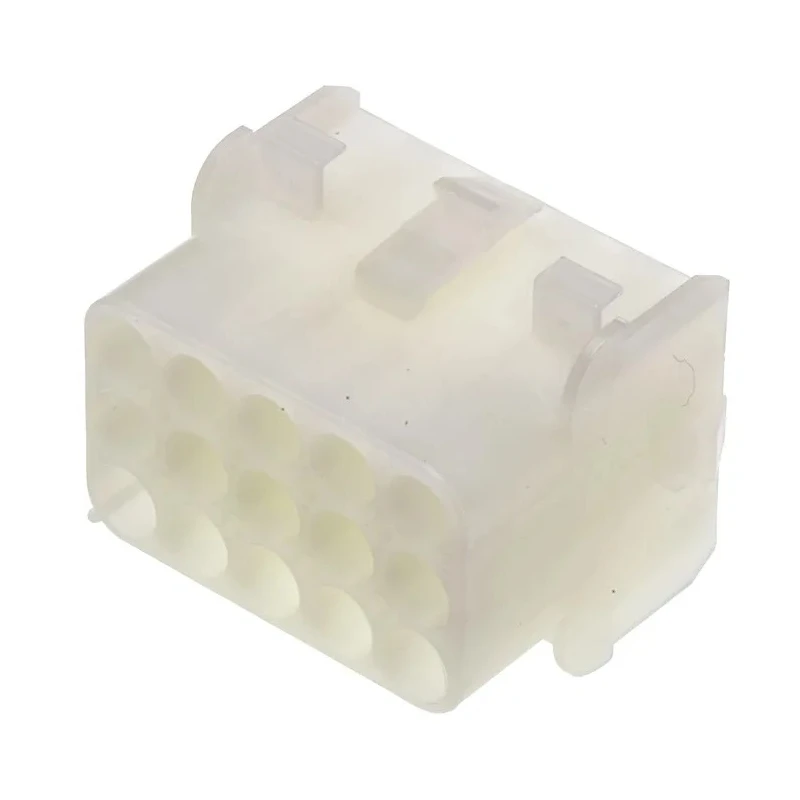

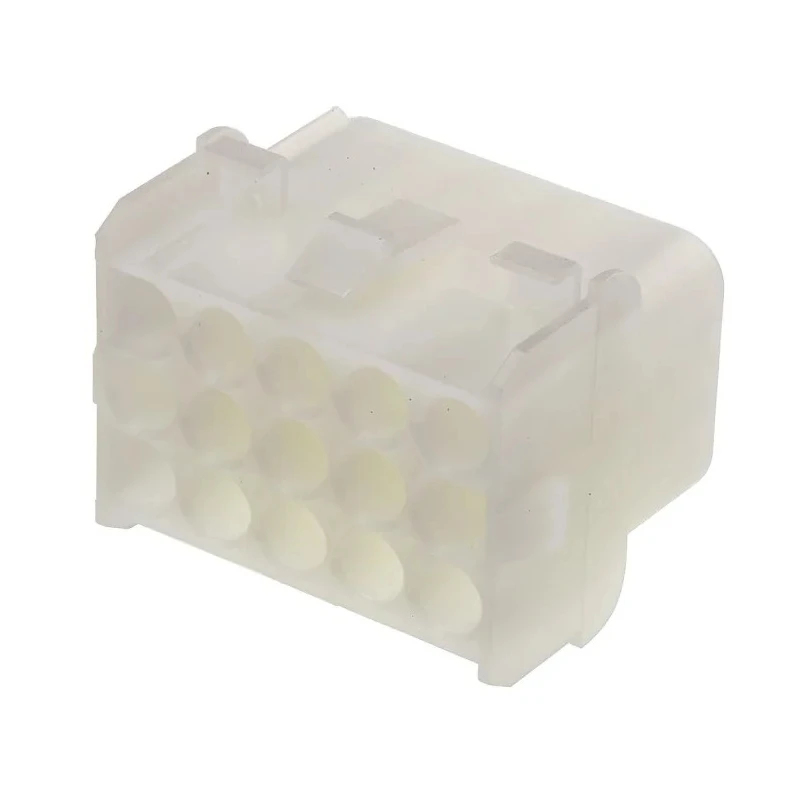

TE Connectivity Universal MATE-N-LOK Female Connector Housing 6.35 mm Pitch 15 Way 3 Row Straight 1-480711
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 27.43mm |
| Model | 1-480711 |
| Width | 25.91mm |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | Universal MATE-N-LOK |
| Number of Rows | 3 |
| Pitch | 6.35mm |
| For Use With | 6.35 mm Centerline Soft Shell Pin & Socket Connector |
| Number of Contacts | 15 |
| Connector Gender | Female |
| TE Connectivity, MATE-N-LOK Female PCB Housing, 6.35mm Pitch, 15 Way, 3 RowBrand | TE Connectivity |
Key Features
- Constructed from strong Nylon 66 housing material for durability.
- Features snap-lock latches providing quick and secure mating.
- Designed with polarization to ensure accurate connector mating.
- Panel mount type suitable for wire to wire and wire to panel applications.
- Compact design with locking mechanism and audible click confirmation.
- Compatible with 6.35 mm centerline soft shell pin and socket connectors.
- UL94V-0 and UL94V-2 flammability rated for safety compliance.
- Robust and reliable connectors ideal for commercial and electronic uses.
Product Description
TE Connectivity 1-480711 Universal MATE-N-LOK Female Connector Housing features a 6.35 mm pitch with 15 contact positions arranged in 3 rows in a straight orientation. This connector housing is manufactured from durable Nylon 66 material, offering excellent mechanical strength and flammability resistance with UL94V-0 and UL94V-2 ratings.
Its compact design includes snap-lock latches that ensure a quick and secure connection with an audible click to confirm proper mating, along with polarization features to prevent mismating during assembly.
This panel-mount female connector housing is intended for use with 6.35 mm centerline soft shell pin and socket connectors, making it suitable for wire to wire, wire to panel, or wire to board connections. It finds broad applications across consumer electronics, commercial equipment, power supplies, HVAC systems, lighting solutions, and portable devices.
The robust and reliable design supports a wide variety of environments and industrial settings, providing dependable electrical connections. Made from Nylon 66 for high strength and flame resistance. Snap-lock latch for secure and quick release.
Polarisation ensures accurate mating every time. Panel mount style for flexible installation. Suitable for 6.35 mm pitch, 15 way, 3 row connectors. Compatible with soft shell pin and socket connectors. UL94V-0 and UL94V-2 flame retardant housing.
Applications include consumer electronics, power supplies, and HVAC.
This product is an essential component within TE Connectivity's Universal MATE-N-LOK range, renowned for quality and reliability in industrial and commercial connector applications. For additional technical resources and support, TE Connectivity provides comprehensive documentation and design tools.
Explore more in the Connectors category for high-quality wiring and connector solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector housing features a pitch of 6.35 mm.
It supports 15 contact positions arranged in 3 rows.
The housing is constructed from Nylon 66, providing mechanical strength and flammability resistance.
It is suitable for applications in consumer electronics, commercial equipment, power supplies, HVAC systems, lighting solutions, and portable devices.
The connector housing has a straight orientation.
This model has a panel mount type, making it suitable for various installation scenarios.
The housing measures 27.43 mm in length and 25.91 mm in width.
It has UL94V-0 and UL94V-2 flammability ratings for safety compliance.
Yes, it is designed with polarization to ensure accurate connector mating and prevent mismating during assembly.
The country of origin for this connector housing is India.
