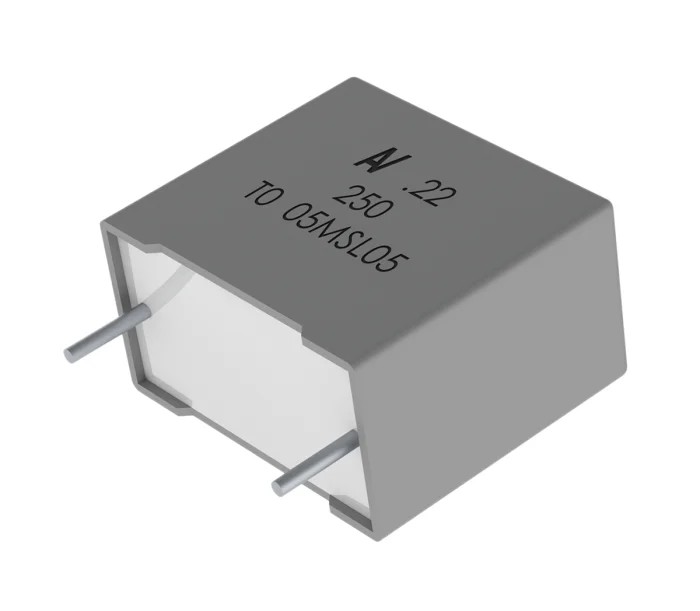

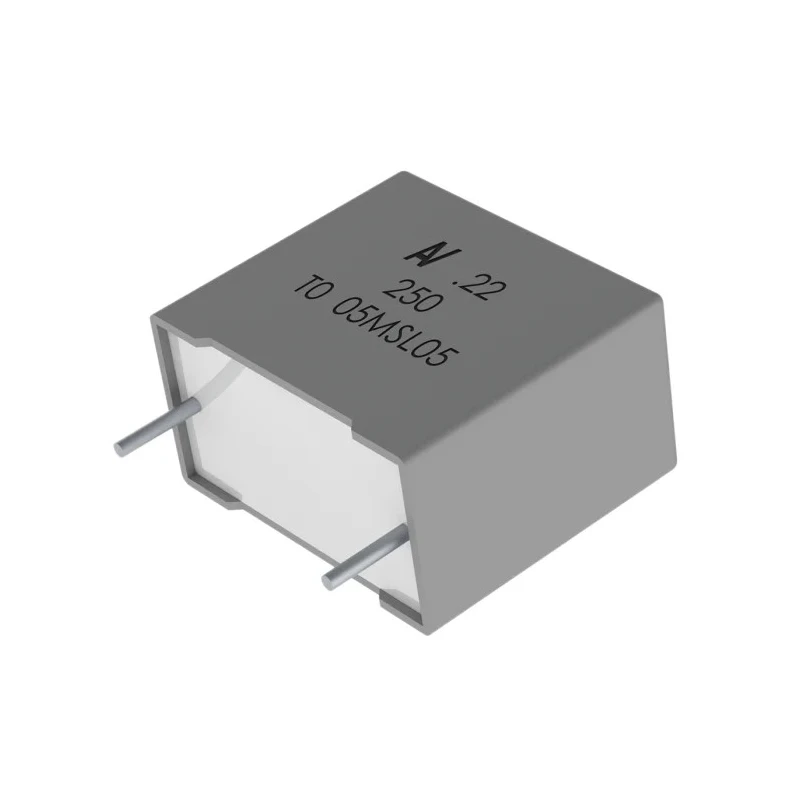

KEMET R60 Film Capacitor, 22 nF ±5 %, Rated 630 V DC 220 V AC Through Hole Mount R60PF2220AA30J

Free Delivery in India | Lowest Global Shipping Charges

KEMET R60 Film Capacitor, 22 nF ±5 %, Rated 630 V DC 220 V AC Through Hole Mount R60PF2220AA30J

Name: KEMET R60 Film Capacitor, 22 nF ±5 %, Rated 630 V DC 220 V AC Through Hole Mount R60PF2220AA30J
Brand: KEMET
SKU: 180983
Price: 20.22 USD
Availability: InStock



Category Film Capacitors Brand KEMET Condition New

Specifications

Country of Origin	India
Capacitance Range	0.001 μF - 150.0 μF
Voltage Range	50 to 1000 V dc
Brand	KEMET
Height	11mm
Length	13mm
Model	R60PF2220AA30J
Packaging	Bag
Width	5mm
Mount Type	Through Hole
Series	R60
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	22nF
Minimum Operating Temperature	-55°C
Climatic category	55/105/56
Lead Length	25mm
Standards/Approvals	RoHS, IEC 60286-2, UL 94V-0
Package/Case	Plastic
Pin Count	2
Rated AC Voltage	220V ac
Rated DC Voltage	630V dc
Lead Pitch	10mm
Lead Diameter	0.6mm
Automotive Standard	AEC-Q200
Capacitance tolerance	±5%, ±10%, ±20%
Lead Spacing	10.0 to 37.5 mm

Key Features

Rated for 630 V dc and 220 V ac voltage to ensure versatile electrical compatibility.
Through hole mount type with a lead pitch of 10 mm and lead length of 25 mm.
Operates reliably across a wide temperature range from -55°C to 105°C.
Constructed with a plastic case and meets UL 94V-0 flammability standard for safety.
AEC-Q200 compliant automotive grade ensuring suitability for automotive applications.
Pin count of 2 with lead diameter of 0.6 mm for secure mounting.
Meets RoHS, IEC 60286-2 standards for environmental and quality compliance.

Product Description

KEMET R60PF2220AA30J is a polyester film capacitor featuring a capacitance of 22 nF with a tight tolerance of ±5 %. Designed for through-hole mounting, this capacitor supports rated voltages of 630 V dc and 220 V ac, making it suitable for low voltage electronic circuits requiring stable and reliable capacitance.

This capacitor is housed in a robust plastic case that complies with the UL 94V-0 flammability standard, providing excellent safety characteristics. It is equipped with radial tinned wire leads spaced at 10 mm pitch and 25 mm lead length, facilitating secure installation on printed circuit boards.

Engineered to operate efficiently within a broad temperature range of -55°C to 105°C, it supports demanding environmental conditions commonly found in automotive and industrial electronics. The product also adheres to the automotive industry standard AEC-Q200, guaranteeing high reliability under automotive operational stresses.

Typical applications include oscillator, timing, blocking, bypassing, coupling, and interference suppression in low voltage and automotive electronics. The capacitor's plastic film construction offers self-healing capabilities and resistance to solvents, enhancing durability and longevity.

Rated voltage up to 630 V dc and 220 V ac for versatile usage. Capacitance tolerance of ±5 % ensures consistent electrical performance. Meets RoHS environmental standards and international IEC 60286-2 test standards. Automotive grade certification AEC-Q200 supports use in harsh automotive environments.

Plastic case with UL 94V-0 compliance ensures fire resistance. Compact dimensions enable efficient PCB space utilization. Leads designed for through-hole mounting provide sturdy connectivity.

These capacitors are ideal for use in industrial equipment, automotive electronics, consumer electronics, and laboratory instrumentation where stable capacitance under challenging conditions is essential.
