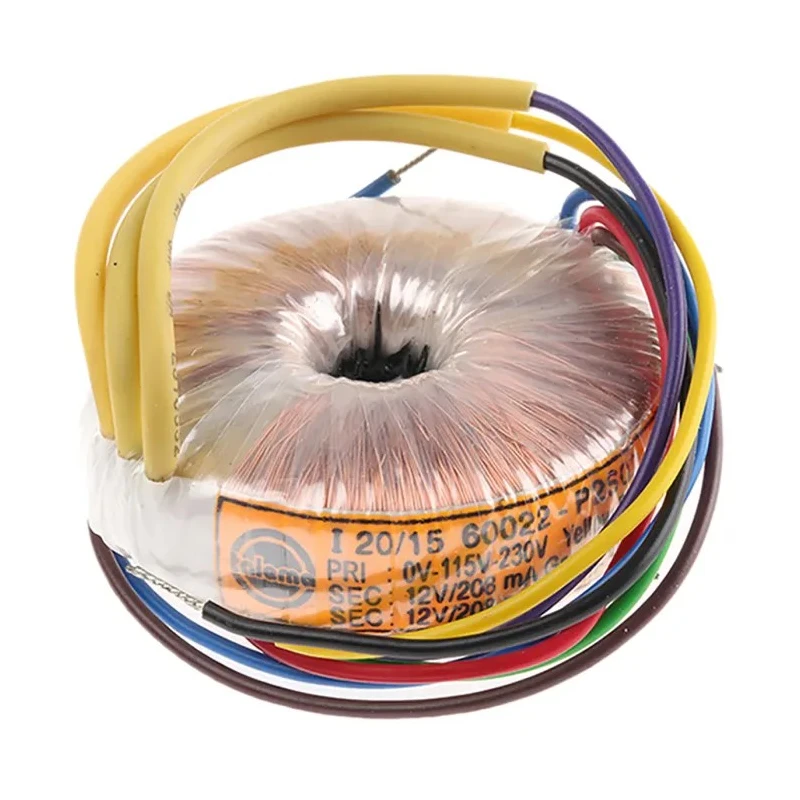

Nuvotem Talema Toroidal Transformer 230 V AC Primary 2 x 12 V AC Secondary 5 VA 60022

Nuvotem Talema 60022 is a high-quality toroidal transformer designed for industrial and electronic applications requiring reliable power conversion at 230 V AC primary voltage. This model offers two secondary outputs at 2 x 12 V AC with a power rating of 5 VA, suitable for low-power circuits.

The transformer features a mini open style form factor with a low profile measuring 49 mm in diameter and 19 mm in height, making it ideal for compact installations. It operates efficiently within an operating frequency range of 50 Hz to 60 Hz and a maximum operating temperature of 180°C, ensuring robustness under demanding conditions.

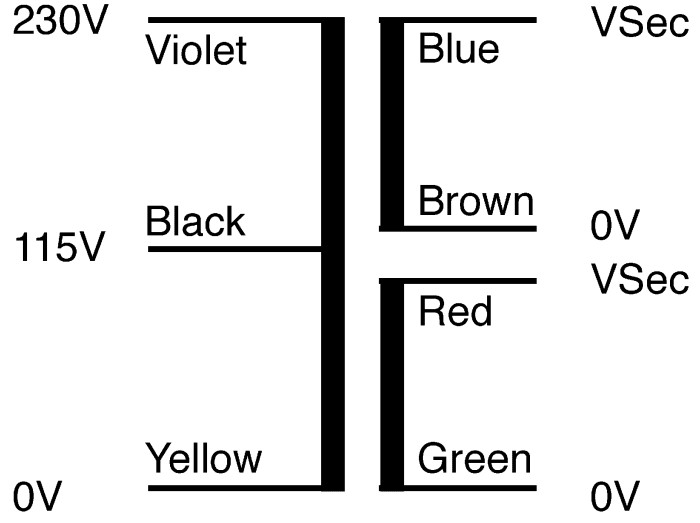

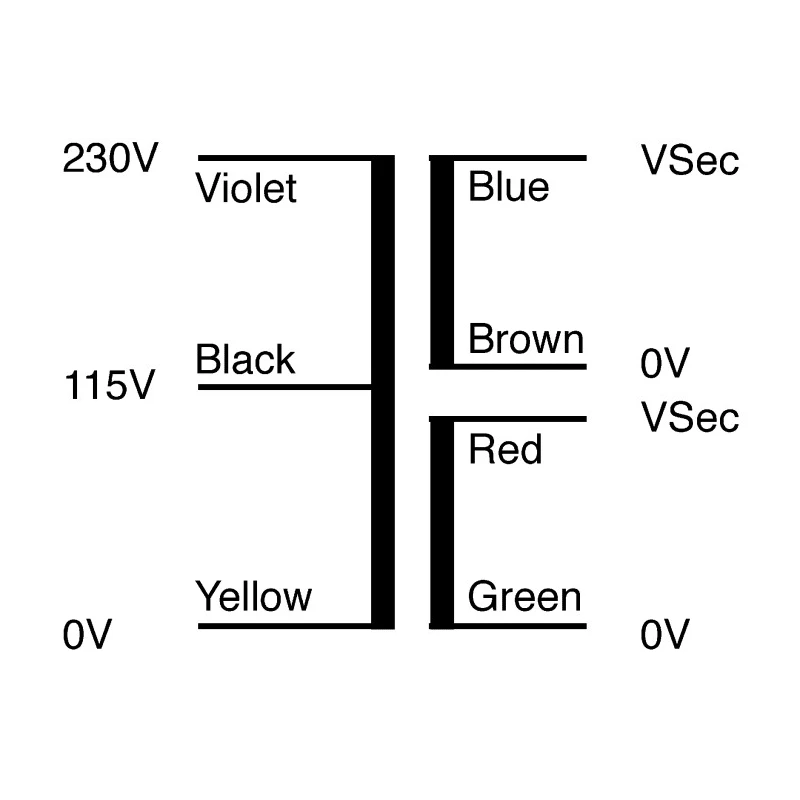

Featuring dual standard tapped primary windings at 115/230 V AC, it offers flexibility of voltage input. The potted centre with an M4 fixing hole allows straightforward and secure mounting. Its design emphasizes low radiated magnetic fields and very low induced noise (hum), making it suitable for use in sensitive electronic equipment and commercial devices.

This transformer meets multiple international safety standards including EN60065 (IEC65), VDE0550, BS415, VDE0551, EN60950, UL506, and EN60742, and is UL recognized and ENEC05 approved. It is subjected to thorough electrical and flash tests to ensure high reliability and performance.

Applications include industrial equipment, laboratory instruments, HVAC systems, manufacturing machinery, and commercial electronic devices where clean, efficient power conversion is required.

High quality toroidal transformer with dual output windings. Compact and lightweight design with 49mm diameter and 19mm height. Operates safely at frequencies from 50Hz to 60Hz. Maximum operating temperature up to 180°C for reliable performance.

Low radiated magnetic field and minimal noise for sensitive applications. Dual standard tapped primary winding for 115/230 V AC compatibility. Easy mounting with potted centre and M4 fixing hole. 100% electrical and flash tested for safety and durability.

Complies with EN60065, VDE, BS415, UL506, and EN60742 approvals. Explore the full range of high-performance Toroidal Transformers at EnvMart to find solutions tailored for your specific industrial, commercial, or laboratory power needs.
