Hi-Force Portable General Purpose Hydraulic Cylinder Single Acting 4.5t 50mm Stroke, 700 bar Maximum Pressure HSS52

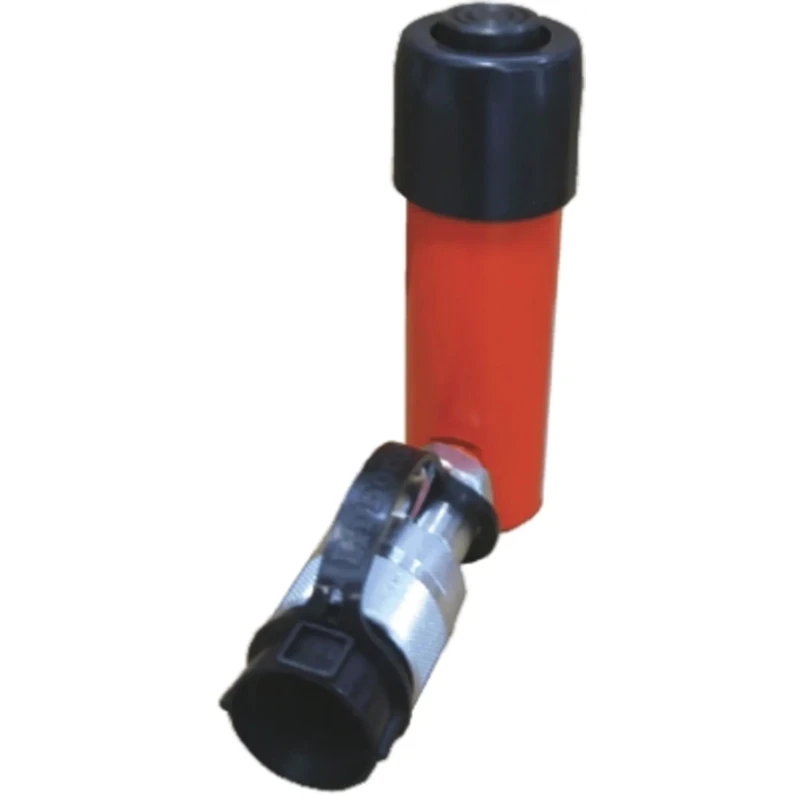

Hi-Force HSS52 Portable General Purpose Hydraulic Cylinder is a robust single acting hydraulic cylinder with a capacity of 4.5 tonnes and a stroke length of 50 mm. Manufactured from high strength alloy steels, this cylinder provides a safety factor of at least 3:1 to ensure dependable performance in demanding industrial environments.

The piston rod is chrome plated to resist corrosion and is equipped with pressure activated anti-extrusion seals for enhanced reliability. Non-metallic bearings on the piston rod and stop ring reduce friction while providing excellent wear resistance and the ability to withstand high side loads. Heavy duty return springs assist the piston to retract fully after operation.

Designed primarily for lifting and pushing operations requiring flexibility and high cycle capability, this hydraulic cylinder is widely applicable across industries such as mining, power generation, railways, shipbuilding, and steel manufacturing. All port connectors are sized at 3/8 inch NPT and fitted with a high flow, quick release female half coupler as standard equipment.

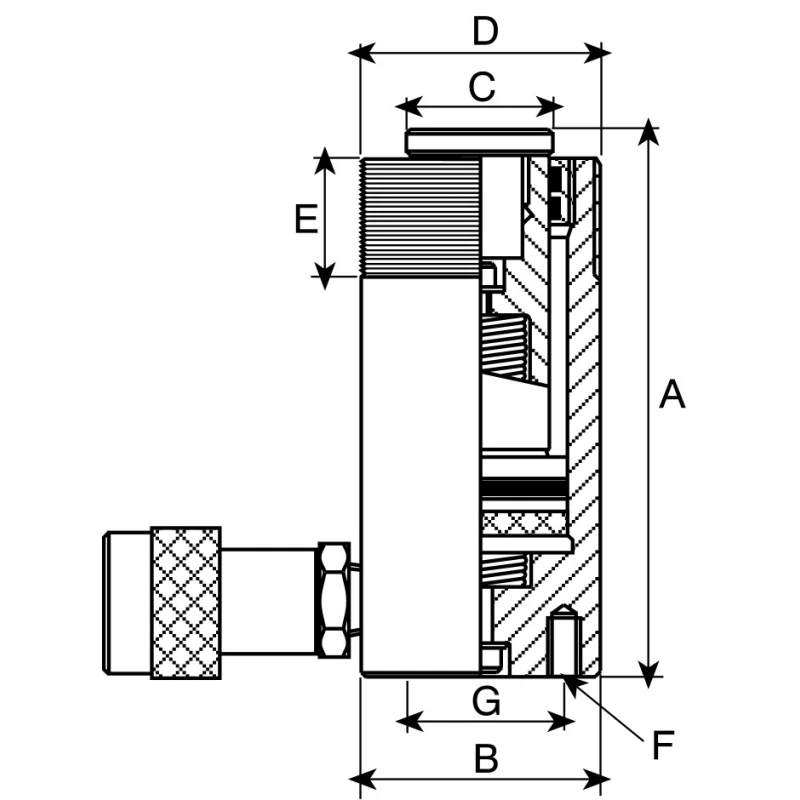

The HSS52 model is compact and portable, measuring 132 mm in closed height and extending to 182 mm when fully stroked. It offers an effective cylinder area of 14.4 cm² and an oil capacity of 32 cm³, operating at a maximum pressure of 700 bar.

Service and repair seal kits are available to maintain performance and prolong service life. This cylinder is ideal for industrial, construction, mining, and maintenance applications where precise hydraulic force and portability are required.

Constructed from high strength alloy steel with a minimum 3:1 safety factor. Chrome plated piston rods with anti-corrosion properties. Non-metallic bearings reduce friction and offer high side load capacity. Heavy duty return springs provide efficient piston retraction.

3/8 inch NPT port connections with quick release female half couplers. Individually pressure tested at 125% of working pressure with test certification. Compact dimensions ensure versatility and portability. Oil capacity of 32 cm³ and cylinder effective area of 14.4 cm².

Maximum operating pressure of 700 bar for demanding applications. Suitable for mining, power stations, railways, shipyards, and steelworks. Explore more Hydraulic Cylinders in the Hi-Force range on EnvMart for specialized industrial tools and equipment.
