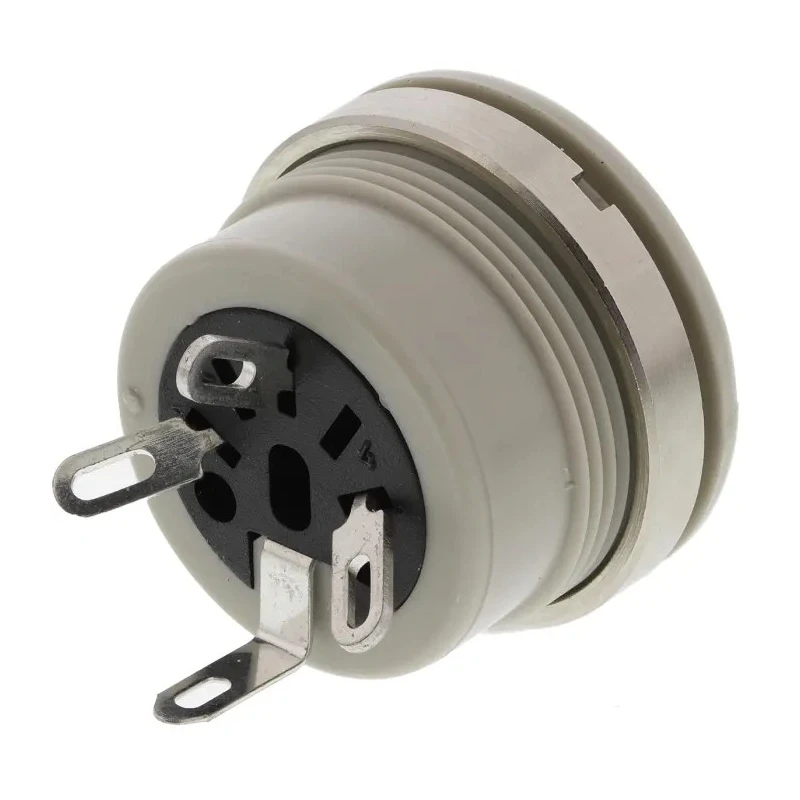

Hirschmann MAB 3 Pole Straight Standard DIN Socket DIN 41524, 4A, 34 V ac/dc, IP30, Screw Lock, Panel Mount Female 776-088
Specifications
| Country of Origin | Hungary |
|---|---|
| Voltage | 34, 34V ac |
| Brand | Hirschmann |
| Orientation | Straight |
| Current | 4A |
| Model | 776-088 |
| IP Rating | IP30 |
| Mount Type | Panel Mount |
| Housing Material | Polyethylene |
| Contact Material | Brass |
| Series | MAB |
| Termination Type | Solder |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Shield Type | Unshielded |
| Pole Format | 3 |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Connector Gender | Female |
| Mating Type | Screw Lock |
| Connector Size | Standard |
| DIN Number | DIN 41524 |
Key Features
- This DIN socket features a straight orientation with screw lock mating for secure cable connections.
- The housing is made of flame-retardant polyethylene, ensuring safety in fire-prone environments.
- Tin-plated brass contacts provide reliable and high-quality signal transfer.
- It operates safely within a temperature range of -20°C to +60°C in demanding industrial settings.
- The connector is designed according to DIN 41524 standards with a standard size connector.
- It supports cable diameters up to 5.5mm for versatile industrial use.
- Its female contact gender and unshielded design make it suitable for commercial lighting and digital video equipment.
- The IP30 rating shields the socket against tools and wires larger than 2.5mm, protecting connections.
Product Description
Hirschmann 776-088 MAB 3 Pole Straight Standard DIN Socket is a high-quality panel mount female connector rated at 4 amperes and 34 volts AC/DC. This socket complies with DIN 41524 standards and offers reliable, secure connections in commercial, industrial, and digital equipment applications.
The connector features a straight orientation with a screw lock mating type, ensuring durable mechanical and electrical stability by preventing accidental disconnections. The flame-retardant polyethylene housing minimizes fire risks in challenging environments, while tin-plated brass contacts guarantee excellent conductivity and corrosion resistance.
Operating safely across a wide temperature range from -20°C to +60°C, this DIN socket is suited for harsh industrial conditions including commercial lighting, distribution centers, and digital video equipment setups. The IP30 rating provides protection against ingress from tools and wires larger than 2.5 mm, ensuring safe and uninterrupted operation.
Cable accommodation goes up to 5.5mm diameter, supporting a variety of commonly used industrial cables. Its unshielded design and female contact gender facilitate compatibility with numerous Hirschmann and compatible plugs for modular industrial installations.
This unit is made in Hungary and supplied brand-new, assuring reliable product condition and authenticity. This connector enhances secure panel cable connections in industrial environments. Its screw lock ensures tight attachment preventing accidental unplugging.
Flame-retardant polyethylene housing boosts operational safety. Tin-plated brass contacts improve signal transfer quality. Wide operating temperature suitability from -20°C to +60°C. IP30 protection guards against intrusion of tools and large wires.
Supports cable sizes up to 5.5 mm diameter for flexibility. Compliant with DIN 41524 standard for industrial applications. Manufactured in Hungary with confirmed new product condition.
This Hirschmann DIN Socket is ideal for use in industrial, commercial lighting, manufacturing, and digital video equipment environments. Browse related connectors and accessories on EnvMart to complete your setup.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This DIN socket is rated for a maximum voltage of 34V AC/DC.
It operates safely within a temperature range of -20°C to +60°C.
This model features a panel mount design.
The connector has an IP30 rating, which protects against the ingress of tools and wires larger than 2.5mm.
The housing is made of flame-retardant polyethylene, and the contacts are made of tin-plated brass.
This unit features a female contact gender.
The screw lock mating type ensures secure cable connections and prevents accidental disconnections.
This connector complies with DIN 41524 standards.
This unit is manufactured in Hungary.
