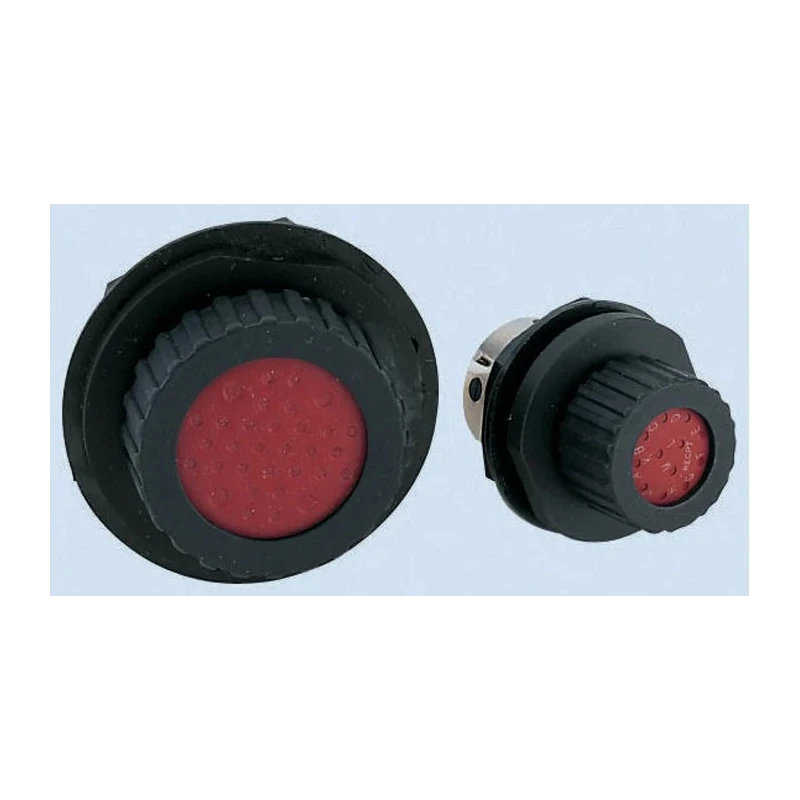

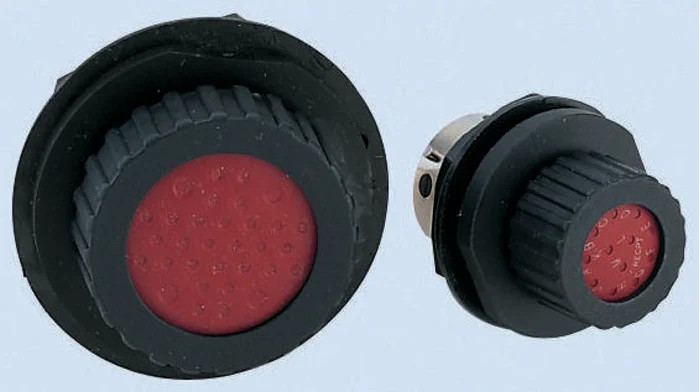

ITT Cannon Circular Connector 19 Contacts Panel Mount Socket Female IP67 Trident Neptune TN7S16-0019S1L / 192900-0490
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 25V |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 30A |
| Model | TN7S16-0019S1L / 192900-0490 |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Polymer |
| Contact Material | Copper |
| Series | Trident Neptune |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 19 |
| Contact Plating | Nickel |
| Number of Contacts | 19 |
| Contact Gender | Female |
| Shell Size | 16 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- Designed for panel mount applications with a robust bayonet coupling system.
- Suitable for harsh environments with IP67 ingress protection.
- Features 19 nickel-plated copper contacts providing reliable electrical conductivity.
- Operates at a nominal voltage of 25V and current rating of 30A.
- Constructed with polymer housing for durability and lightweight handling.
- Temperature range from -55°C to 105°C for extended operational environments.
- Mating type is bayonet ensuring secure and quick connections.
- Termination is via crimp, ideal for reliable cable attachments.
Product Description
ITT Cannon TN7S16-0019S1L / 192900-0490 circular connector is a panel mount socket female connector featuring 19 contacts from the Trident Neptune series. It operates at 25V with a maximum current rating of 30A and features straight orientation and bayonet mating type. This connector is designed for industrial and harsh environment applications with an IP67 ingress protection rating.
The connector has a 16 mm standard shell size with polymer housing material, providing a resilient yet lightweight structure ideal for automotive, marine, and process control industries. It maintains performance under temperature extremes from -55°C to 105°C. Contact material is copper with nickel plating to ensure corrosion resistance.
Panel mounting is achieved via jam nut fixing and the connector is mounted from the rear of the panel through a single "D" hole. Rubber cable seals, O-ring interface seals, and seal securing nuts maintain environmental protection and IP67 rating. The connector allows in-line installations, making it versatile for complex wiring configurations.
The Neptune series combines power and signal contacts via a strong bayonet coupling system with standard and reversed pin/socket combinations. Its durable construction and versatile mounting options make it suitable for industrial tools, manufacturing equipment, HVAC systems, and electrical power distribution environments.
Designed for panel mount applications with a robust bayonet coupling system. IP67 rating guarantees protection against dust and water ingress. Nickel-plated copper contacts ensure excellent conductivity and corrosion resistance.
Wide operating temperature range supports versatile industrial environments. Crimp termination for secure and reliable cable connection. Polymer housing material provides durability and electrical insulation. 16 mm shell size standardizes compatibility with industrial interfaces.
Application sectors include automotive, marine, industrial machinery, and process controls. Explore our range of Industrial Circular Connectors for reliable and durable connectivity solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a nominal voltage of 25V and has a maximum current rating of 30A.
This connector has an IP67 ingress protection rating, ensuring it is protected against dust and water ingress.
It features crimp termination, which is ideal for secure and reliable cable attachments.
The operating temperature range is from -55°C to 105°C, allowing it to function in extreme environments.
This model features 19 contacts, providing reliable electrical connectivity.
The housing is made of polymer, while the contacts are copper with nickel plating for corrosion resistance.
It is designed for panel mount applications, secured via jam nut fixing.
The mating type is bayonet, which allows for secure and quick connections.
It has a standard shell size of 16 mm, which standardizes compatibility with industrial interfaces.
It is suitable for applications in automotive, marine, industrial machinery, and process controls.
The connector features a straight orientation, facilitating easy installation in various setups.
Yes, it is designed for industrial and harsh environments, supported by its IP67 rating and robust construction.
