SMC 10 mm Pneumatic Piston Rod Cylinder Aluminium Alloy Body, Double Acting, Clevis Mount, 121mm Length CD85

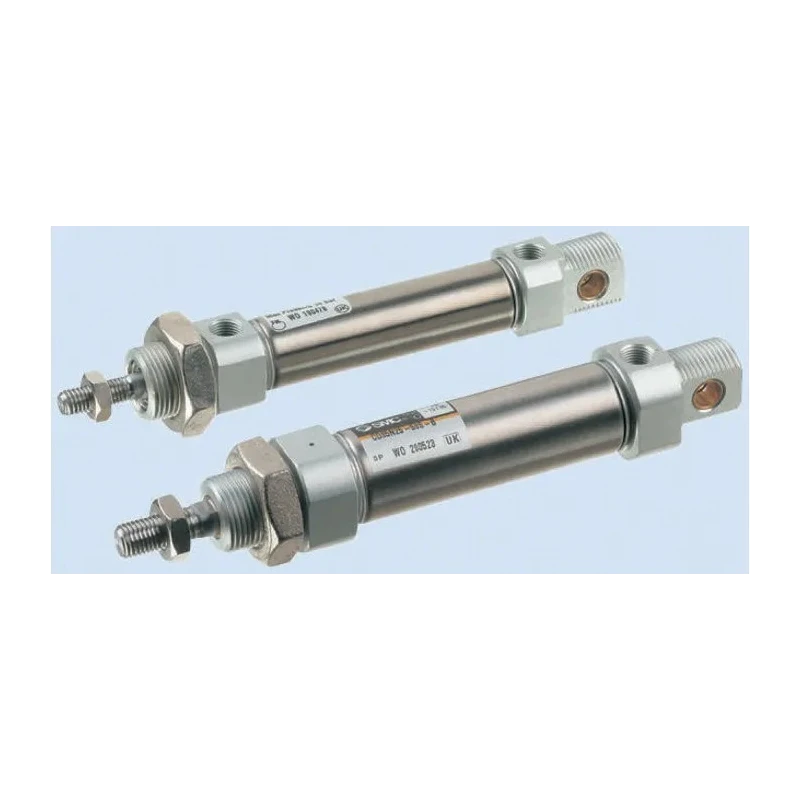

SMC CD85N16-10-B pneumatic piston rod cylinder provides reliable and compact double acting pneumatic linear motion with a 10 mm stroke length and 121 mm overall length. Constructed with an aluminium alloy body, this cylinder is designed for applications requiring precise reciprocating motion in confined spaces such as automation, robotics, and mechanical assembly systems.

This cylinder features a clevis mount for straightforward pivoted attachment to mechanical linkages, enhancing installation flexibility. The unit incorporates rubber bumper cushioning to reduce noise and impact, prolonging operational life and improving workplace comfort. The single male piston rod has a metric M6 thread to facilitate simple mechanical coupling.

With a maximum piston speed of 1500 mm/s, the device supports rapid cycling suitable for high-speed automation processes. It is rated for operation up to +60°C, making it viable for use in warm industrial environments. Adherence to ISO 6432 ensures compatibility with a broad range of pneumatic cylinder fittings and accessories.

Common applications include use in pick-and-place modules in electronics assembly, miniature transfer mechanisms within automation cells, valve actuation in electrical control panels, positioning tasks in test rigs, and integration with robotic grippers in end-effector tools.

Compact aluminium alloy body reduces weight for easy handling. Double acting operation allows controlled push and pull strokes. Clevis mount supports pivoted attachment for mechanical linkage. Rubber bumper cushioning minimizes impact and noise during operation.

10 mm stroke length suitable for short, repeatable travel applications. Single male piston rod with metric M6 thread ensures mechanical compatibility. Maximum piston speed of 1500 mm/s supports rapid cycling. Operation temperature up to +60°C suitable for warm environments.

Conforms to ISO 6432 standard for cylinder sizing and interchangeability.

This Pneumatic Piston Rod Cylinder is ideal for industrial, manufacturing, automation, laboratory, and mechanical engineering sectors requiring dependable pneumatic actuation components. Explore more pneumatic cylinder products from SMC and other trusted brands at EnvMart.
