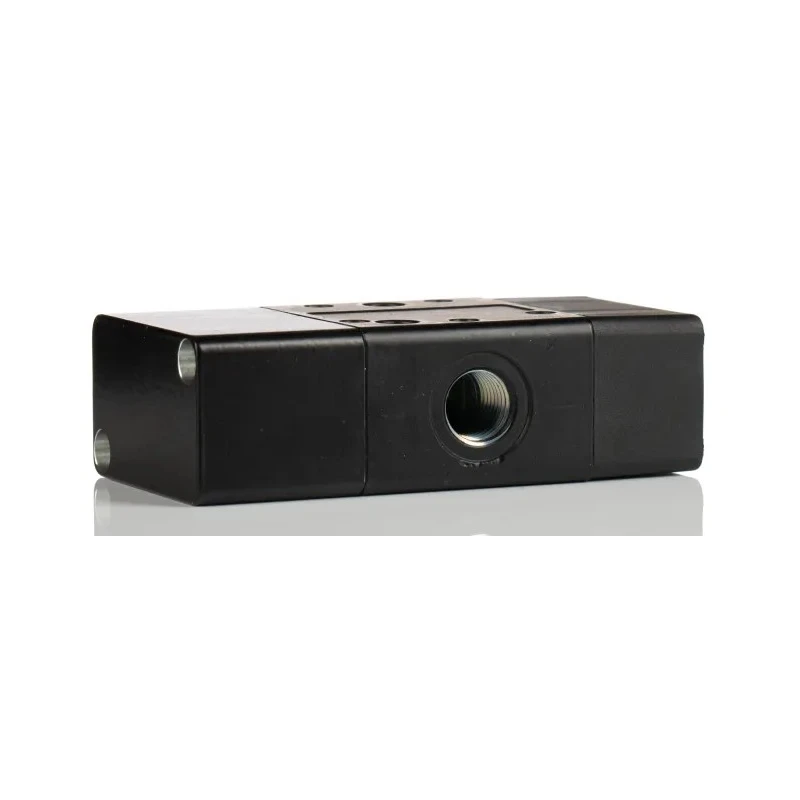

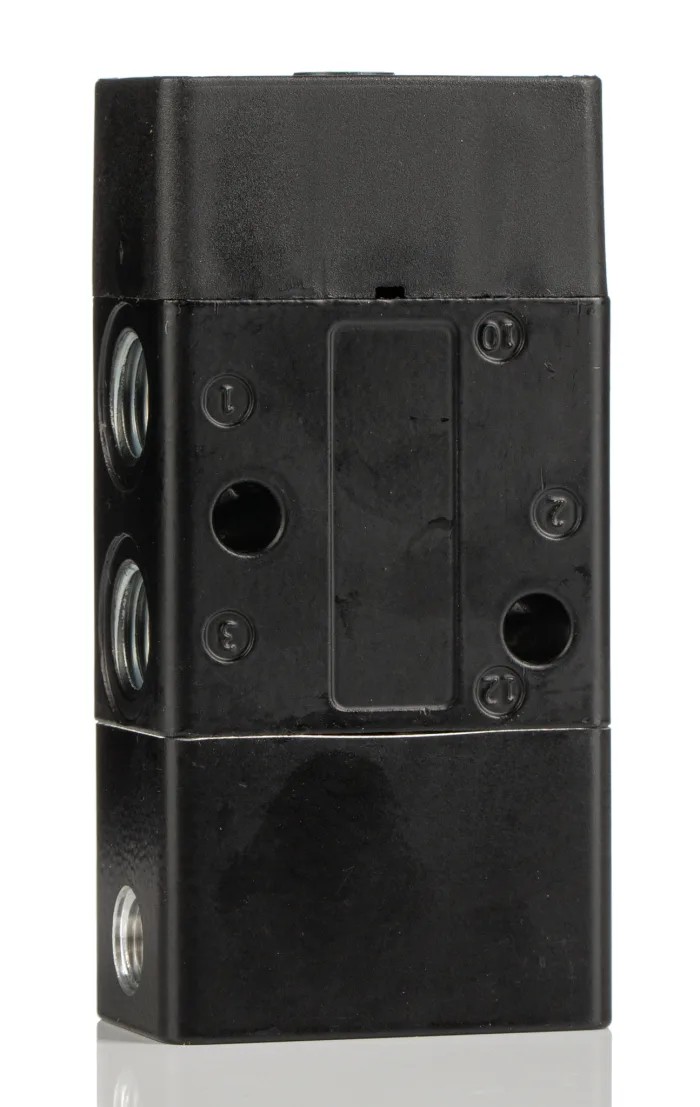

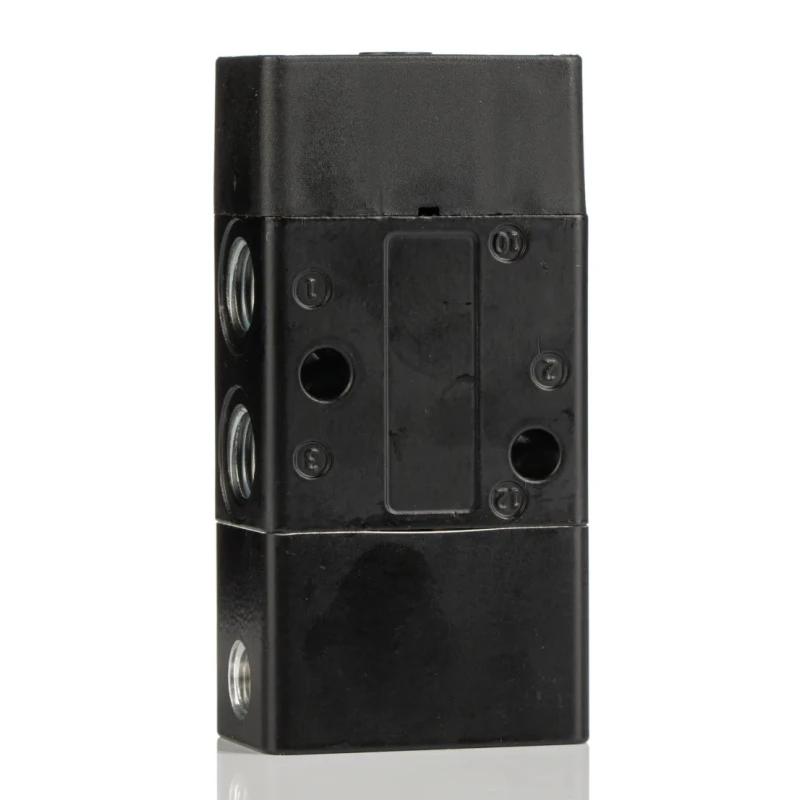

Norgren Pneumatic Solenoid Valve Pilot/Spring Actuation M14 x 1.5 Thread 5/2, 3/2 NC Function 965L/min Flow SUPER X 03060102
Specifications
| Country of Origin | China |
|---|---|
| Brand | Norgren |
| Body Material | Die Cast Zinc |
| Maximum Operating Pressure | 10 bar |
| Model | 03060102 |
| Mount Type | Through Hole |
| Series | SUPER X |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 70°C |
| Thread Size | 1/4 in |
| Number of Positions | 2 |
| Port Size | 1/4 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | 0°C |
| Actuation Type | Pilot/Spring |
| Maximum Flow Rate | 965L/min |
| Connection Thread Standard | M14 x 1.5 |
| Minimum Pilot Pressure | 2bar |
| Valve Function | 5/2, 3/2 NC |
Key Features
- Features a 5/2 and 3/2 NC valve function for flexible airflow routing.
- Operates efficiently between 2 and 10 bar pilot pressure with maximum operating pressure of 10 bar.
- Compact design with M14 x 1.5 connection thread and 1/4 inch port size.
- Flow rate of up to 965 litres per minute ensures strong performance in demanding applications.
- Constructed from die-cast zinc body and nitrile rubber (NBR) seals for durable industrial use.
- Suitable for operating temperature range from 0°C to 70°C in industrial environments.
- Through hole mount type for secure installation and integration.
- Designed for use with filtered or compressed air, lubricated or non-lubricated mediums.
Product Description
Norgren 03060102 Pneumatic Solenoid Valve with pilot/spring actuation type offers reliable control of compressed air flow in automated industrial manufacturing and fluid power systems. This valve belongs to the SUPER X series and uses a pressure difference mechanism to open and close the valve without electrical power switching, enhancing energy efficiency.
The valve features a compact M14 x 1.5 thread connection and a 1/4 inch port size, making it compatible with a wide range of pneumatic components. It is constructed with a durable die cast zinc body and nitrile rubber (NBR) seals to withstand industrial conditions and ensure a long service life. The valve provides swift airflow direction switching with its 5/2 and 3/2 NC function options and operates within a pilot pressure range of 2 to 10 bar, with a maximum operating pressure of 10 bar.
With a maximum flow rate of 965 litres per minute, it supports demanding air tool applications, actuators, and controllers in areas such as food and drinks production and automated manufacturing.
Operational in temperatures between 0°C and 70°C, it is suitable for moderate industrial environments. The through hole mount type secures robust attachment for stable performance. This valve handles both lubricated and non-lubricated filtered or compressed air flows, offering versatility in pneumatic system designs.
5/2 and 3/2 NC valve functions enable flexible airflow control. Durable die-cast zinc body and nitrile rubber seals ensure reliable use. High flow rate of 965 L/min supports intensive applications. Operates within 2 to 10 bar pilot pressure and maximum 10 bar operating pressure.
Compact M14 x 1.5 thread with 1/4 in ports offers compatibility. Suitable for operating temperature range from 0°C to 70°C. Through hole mount type for secure installation. Designed for filtered or compressed air, including lubricated media.
This Pneumatic Solenoid Valve is ideal for industrial, laboratory, manufacturing, HVAC, and commercial automation applications requiring precise and energy-efficient airflow management. Explore more quality pneumatic valves and accessories in the Norgren series on EnvMart to optimize your fluid power systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 10 bar.
This model has a maximum flow rate of 965 litres per minute.
It features an M14 x 1.5 connection thread and a 1/4 inch port size.
The operating temperature range is from 0°C to 70°C.
It is designed for use with filtered or compressed air, including both lubricated and non-lubricated mediums.
This valve uses pilot/spring actuation for controlling airflow.
It offers 5/2 and 3/2 normally closed (NC) valve functions for flexible airflow routing.
The body is made from die-cast zinc, and it features nitrile rubber (NBR) seals.
This model has a total of 3 ports.
It utilizes a through hole mount type for secure installation.
The minimum pilot pressure required is 2 bar.
The country of origin for this valve is China.
