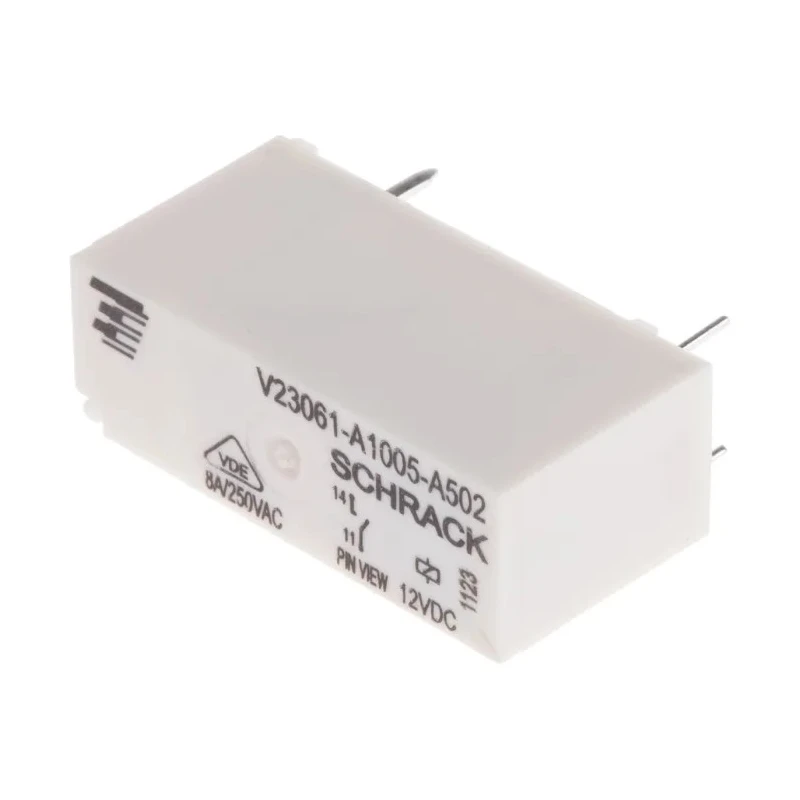

TE Connectivity Power Relay 12V DC Coil 15A Switching Current SPST PCB Mount MSR Series V23061A1005A502

TE Connectivity V23061A1005A502 is a high-quality power relay designed for PCB mounting applications with a coil voltage of 12V DC and a switching current rating of 15A. This relay features a Single Pole Single Throw (SPST) contact configuration suitable for switching tasks in diverse electrical and electronic equipment.

With compact dimensions of 28.6mm length, 15mm height, and 10mm width, the relay integrates easily onto printed circuit boards. The coil resistance is 652 ohms, consuming only 221mW coil power, contributing to energy-efficient operation.

The relay is engineered to operate reliably across a wide temperature range of -40°C to 85°C, making it ideal for demanding industrial, automation, and control systems. It supports switching of AC voltages up to 400V AC and power ratings up to 2kVA.

Contact materials are silver nickel alloy with AgSnO to ensure high durability and support for high inrush currents. The relay uses solder terminals allowing secure mounting on PCBs. Protection class II and washproof features add robustness for extended service life.

Compliant with major international standards such as EN60730-1, IEC 60335-1, IEC 61810-1, UL 508, and certified by VDE, UL, CSA, SEV, SEMKO, and SETI, this relay meets strict quality and safety requirements.

Manufactured in the Czech Republic, the V23061A1005A502 relay is suited for industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and other commercial applications requiring reliable relay switching performance.

High reliability with silver nickel alloy contacts for durable switching. Compact dimensions: 28.6mm length, 15mm height, 10mm width for easy PCB integration. Coil resistance of 652Ω with low coil power consumption of 221mW.

Wide operating temperature range from -40°C to 85°C suitable for industrial environments. Supports switching AC voltage up to 400V AC and power up to 2kVA. Complies with international standards including EN60730-1, IEC 60335-1, IEC 61810-1, UL 508, and VDE certification.

Features solder terminal types for secure PCB connections. Designed for high inrush currents with AgSnO contact material. Protection class II and washproof design for enhanced longevity. Manufactured in Czech Republic ensuring quality assurance.
