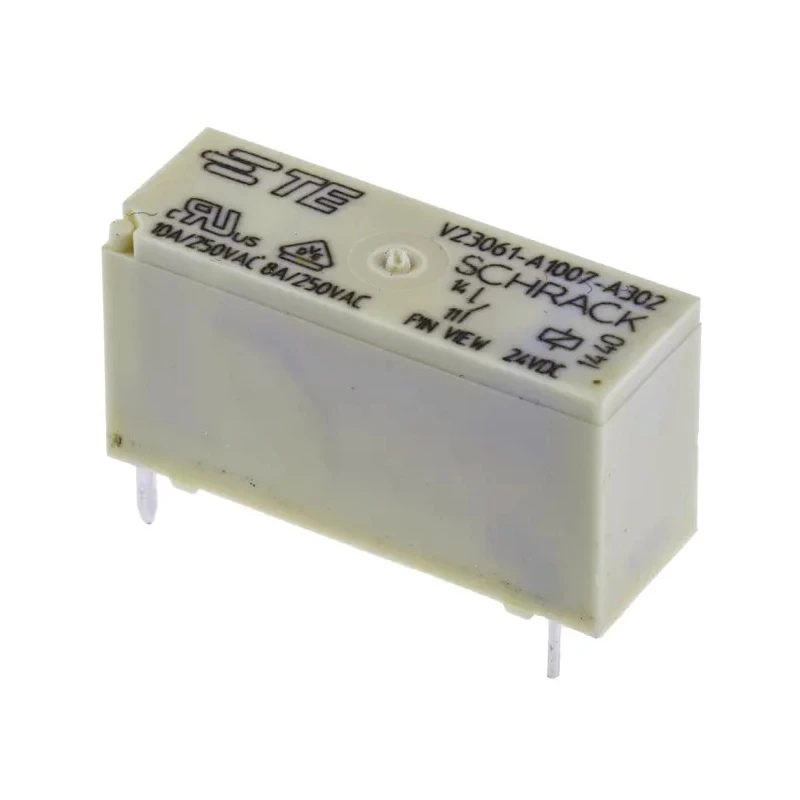

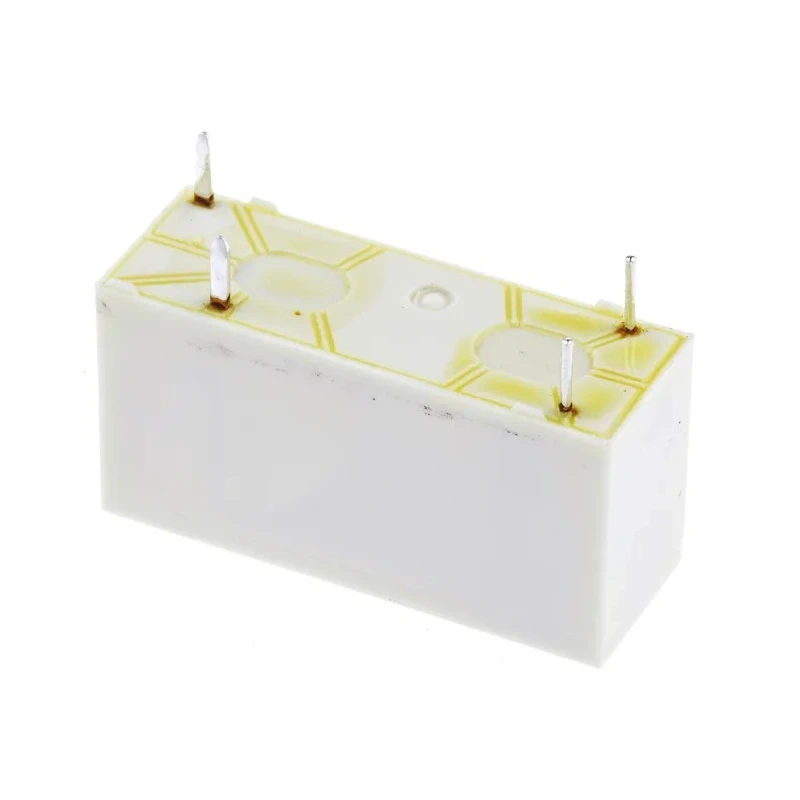

TE Connectivity Power PCB Relay, 24V DC Coil, 8A Switching Current, SPST, MSR Series V23061A1007A302

TE Connectivity presents the V23061A1007A302 Power PCB Relay, designed for robust and precise switching operations in industrial electrical and automation systems. This relay features a 24V DC coil and supports a switching current of up to 8 amps, making it suitable for controlling moderate loads on printed circuit boards.

Constructed with a Single Pole Single Throw (SPST) contact configuration, the relay enables straightforward on-off control in various industrial circuits. Its coil resistance measures 2.3 kiloohms, and it operates at a coil power of 254 milliwatts, ensuring efficient low-power actuation.

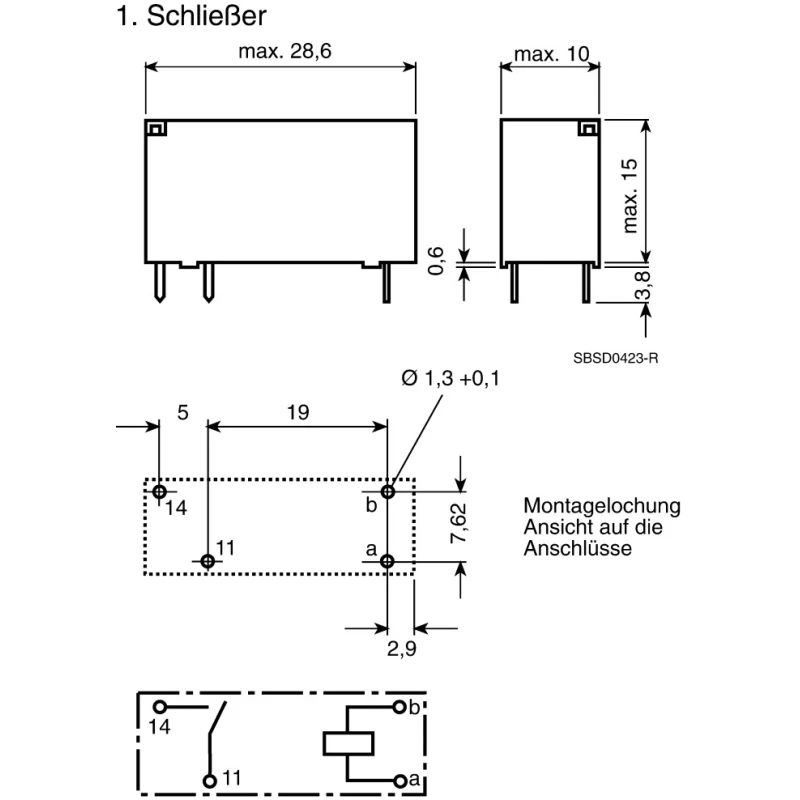

The relay's durable silver alloy contacts withstand high inrush currents, maintaining reliable switching at AC voltages up to 400 volts. It features a compact size with a length of 28.6mm, height of 15mm, and width of 10mm, facilitating space-saving PCB mounting. The device is built to endure operating ambient temperatures from -40°C to a maximum of 85°C, extending its usability in challenging industrial environments.

This MSR series relay is washproof and offers 4 kV / 8 mm coil contact protection and protection class II, ensuring long operational life and compliance with stringent quality standards. Certifications include VDE, UL, CSA, SEV, SEMKO, and SETI, confirming its industrial-grade reliability.

This relay features a 24V DC coil voltage designed for PCB mount applications. The contact configuration is Single Pole Single Throw (SPST) for simple switching circuits. Rated switching current is 8 amperes with a switching AC voltage of up to 400V AC.

Built with silver alloy contacts and a coil resistance of 2.3 kiloohms for durability. Operates reliably in temperatures ranging from -40°C to 85°C. Compact form factor with dimensions 28.6mm length, 15mm height, and 10mm width.

Coil power consumption is 254 milliwatts, ensuring low power usage. This MSR series relay is RoHS compliant and certified to standards including VDE, UL, CSA, SEV, SEMKO, and SETI.

This product is ideal for applications in electrical automation, industrial control systems, manufacturing equipment, and signal conditioning circuits. TE Connectivity's PCB Power Relay stands as a dependable component for engineers looking to integrate an efficient relay solution within PCB systems.
