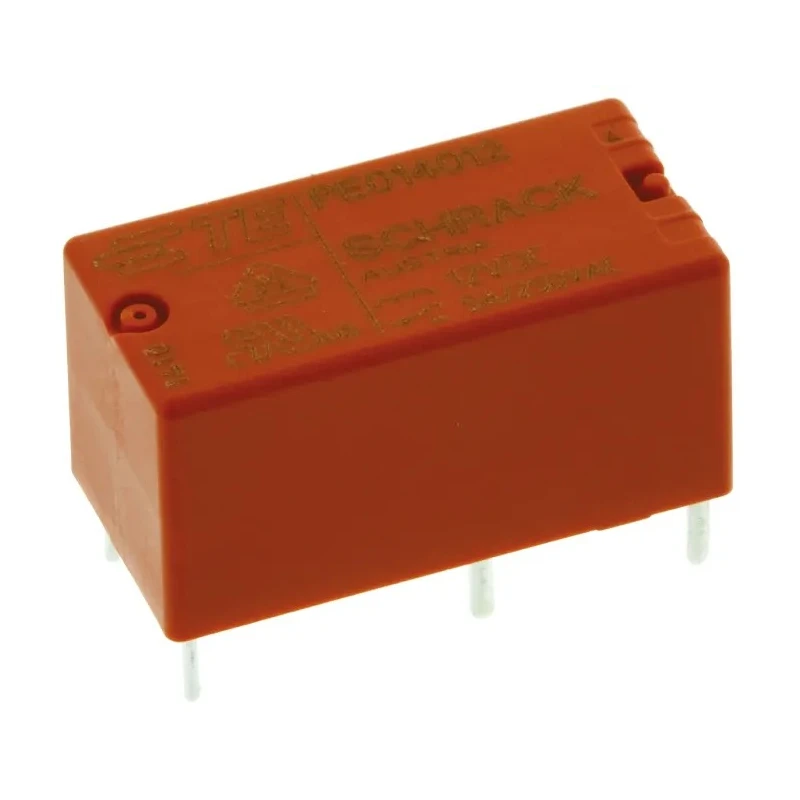

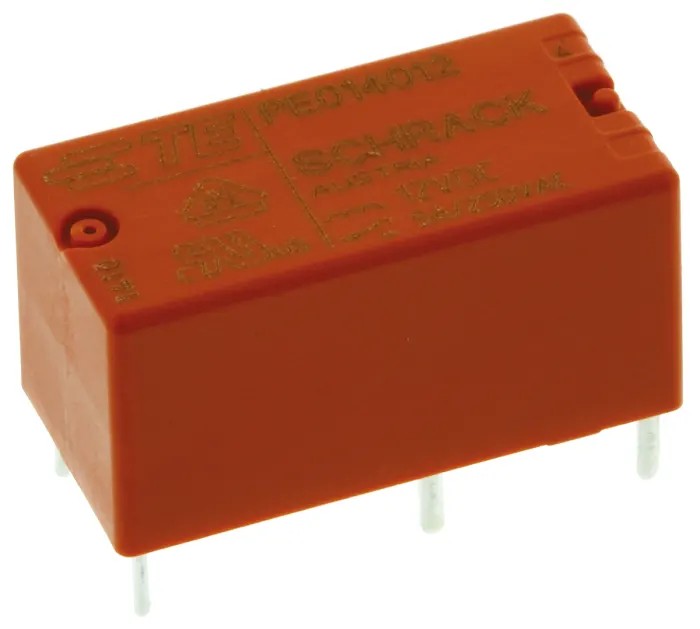

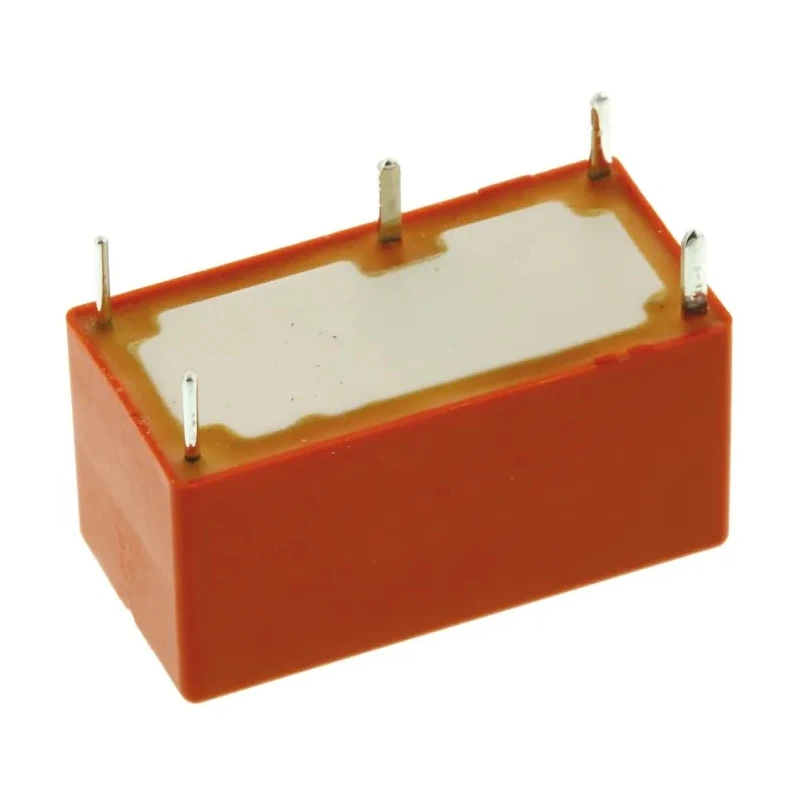

TE Connectivity PCB Power Relay, 12V dc Coil, 5A Switching Current, SPDT PE014012
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 10mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 20mm |
| Model | PE014012 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Standards/Approvals | VDE, cULus |
| Coil Resistance | 685Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 210mW |
| High Coil sensitivity | 200mW |
Key Features
- Coil voltage of 12V dc ensures compatibility with standard power supplies.
- Single Pole Double Throw (SPDT) contact configuration for versatile switching.
- Switching current rated at 5A accommodates moderate load currents.

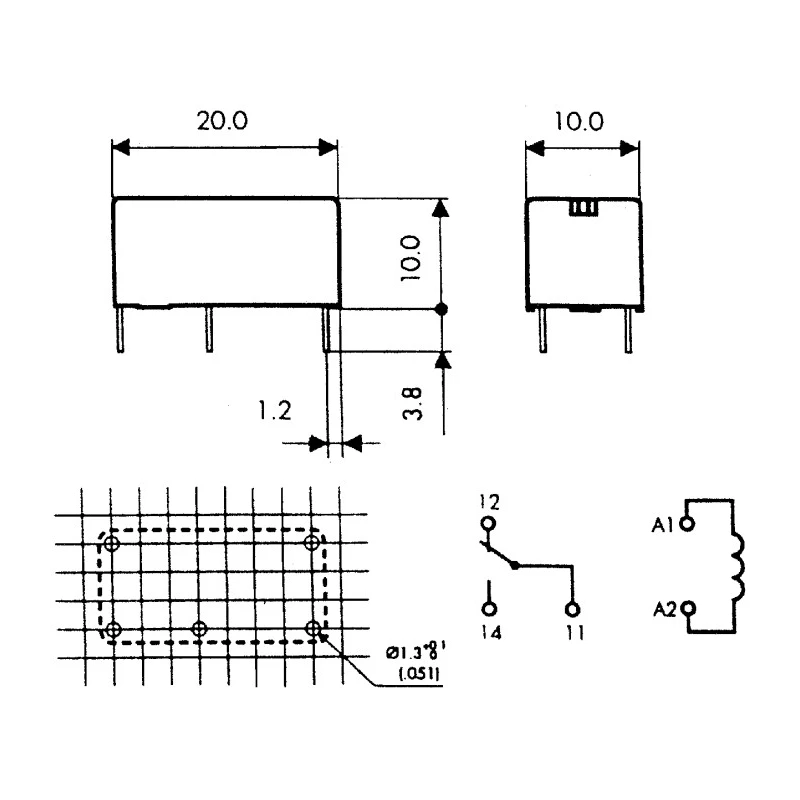

- Compact dimensions with length 20mm, width 10mm, and height 10mm for PCB mounting.
- Coil resistance of 685Ω and coil power consumption of 210mW for energy efficiency.
- Operating temperature range from -40°C to 85°C suitable for harsh environments.
- Contact material made of silver nickel alloy for reliable conductivity.
- High coil sensitivity of 200mW enables low power triggering.
Product Description
TE Connectivity PE014012 PCB Power Relay is a compact and reliable relay designed for PCB mounting with a 12V dc coil and SPDT contact configuration. It supports a switching current of 5A and switching power of 1.3 kVA, making it ideal for various electrical, automation, and control applications in industrial and household environments.
The relay features a coil resistance of 685Ω and a low coil power consumption of 210mW, reflecting high energy efficiency. Its operating temperature range from -40°C to +85°C allows reliable performance under extreme conditions. The contacts are made of silver nickel alloy, providing excellent conductivity and durability.
With precise dimensions of 20mm length, 10mm width, and 10mm height, this relay fits standard PCB mount specifications and utilizes solder-type terminals for secure connections. The PE series relay ensures high coil sensitivity at 200mW to enable efficient switching control.
The product complies with major industry standards including VDE, cULus, UL, CSA, SEMKO, SEV, and OVE, underscoring its quality and safety for use in critical applications. Coil voltage of 12V dc ensures compatibility with standard power supplies.
Single Pole Double Throw (SPDT) contact configuration for versatile switching. Switching current rated at 5A accommodates moderate load currents. Compact dimensions with length 20mm, width 10mm, and height 10mm for PCB mounting.
Coil resistance of 685Ω and coil power consumption of 210mW for energy efficiency. Operating temperature range from -40°C to 85°C suitable for harsh environments. Contact material made of silver nickel alloy for reliable conductivity.
High coil sensitivity of 200mW enables low power triggering. Switching AC voltage up to 400V ac and switching power of 1.3 kVA. PCB mount type with solder terminals facilitates secure installation.
This PCB Power Relay is suitable for industrial electronic equipment, household appliances, and various control devices requiring dependable switching functionality. Explore similar high-quality relays and components on EnvMart for your electronics and industrial automation needs.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 5A, accommodating moderate load currents.
The coil voltage for this relay is 12V dc, ensuring compatibility with standard power supplies.
This relay has compact dimensions of 20mm in length, 10mm in width, and 10mm in height, suitable for PCB mounting.
It features a Single Pole Double Throw (SPDT) contact configuration for versatile switching applications.
The operating temperature range is from -40°C to +85°C, allowing reliable performance in harsh environments.
The coil resistance is 685Ω, contributing to its energy efficiency.
The coil power consumption is 210mW, indicating low energy usage during operation.
The contacts are made of silver nickel alloy, which provides reliable conductivity.
It complies with major industry standards including VDE and cULus, ensuring quality and safety for critical applications.
The relay can switch AC voltage up to 400V ac, making it suitable for various applications.
This model is designed for PCB mounting and utilizes solder-type terminals for secure connections.
The relay has a high coil sensitivity of 200mW, enabling efficient low power triggering.
