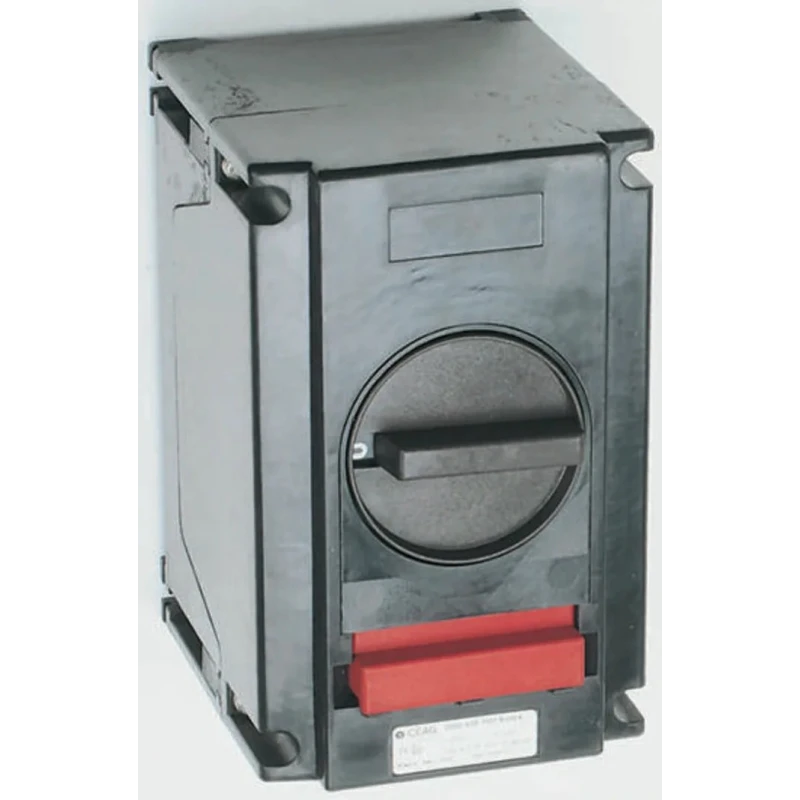

Eaton DOL Starter, 25A Current Rating, IP66 Protection, 690V AC Voltage, GHG6351101R0105

Eaton GHG6351101R0105 DOL Starter is a robust motor starter designed for industrial and automation control applications requiring reliable performance and protection. Operating at a maximum voltage of 690V AC with a current rating of 25A, it is suitable for a wide range of motor control scenarios including HVAC, manufacturing, water treatment, and electrical panels.

The starter features an IP66 rated enclosure compliant with EN60529, providing superior protection against dust and high-pressure water jets, making it ideal for harsh industrial environments. It incorporates single-phase failure protection using thermal electromagnetic trips, safeguarding connected motors from damage.

Terminals are protected to prevent accidental contact and support conductor cross sections up to 10mm², allowing secure and flexible wiring options. The external enclosure contours enable convenient access to terminals from all sides, facilitating easy installation and maintenance activities.

This manual DOL starter gives clear visible indication of the switch position, enhancing operational safety. It also includes a padlocking facility via a red button to prevent unauthorized operation. Eaton’s GHG635 series complies with CE and EAC standards and is certified for use in ATEX hazardous zones, ensuring compliance with international safety norms.

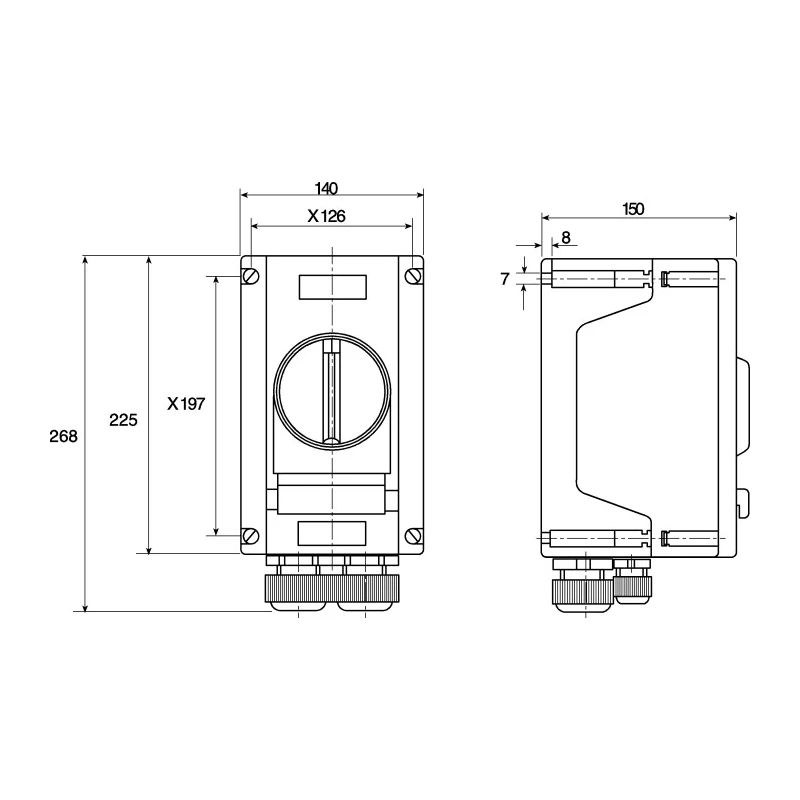

With compact overall dimensions of 225mm length, 140mm width, and 156mm depth, the starter can be conveniently integrated into control panels. Manufactured in Germany, it upholds premium quality and durability standards.

This product is suitable for industrial automation, electrical control panels, manufacturing setups, and other motor control applications demanding high ingress protection and safety features.

Supports maximum voltage of 690V AC ensuring compatibility with high voltage systems. IP66 rated enclosure provides dust tight and powerful water jet protection. Includes single-phase failure protection through thermal electromagnetic trips.

Terminals offer protection against accidental contact and accept conductor cross sections up to 10mm². Clear switch position indication with a red button padlocking facility to enhance safety. Compliant with CE and EAC standards and certified for ATEX hazardous areas.

Easy terminal access from all sides simplifies installation and maintenance. Compact dimensions of approximately 225mm (L) x 140mm (W) x 156mm (D) for flexible mounting. Manufactured in Germany ensuring high-quality build standards.
