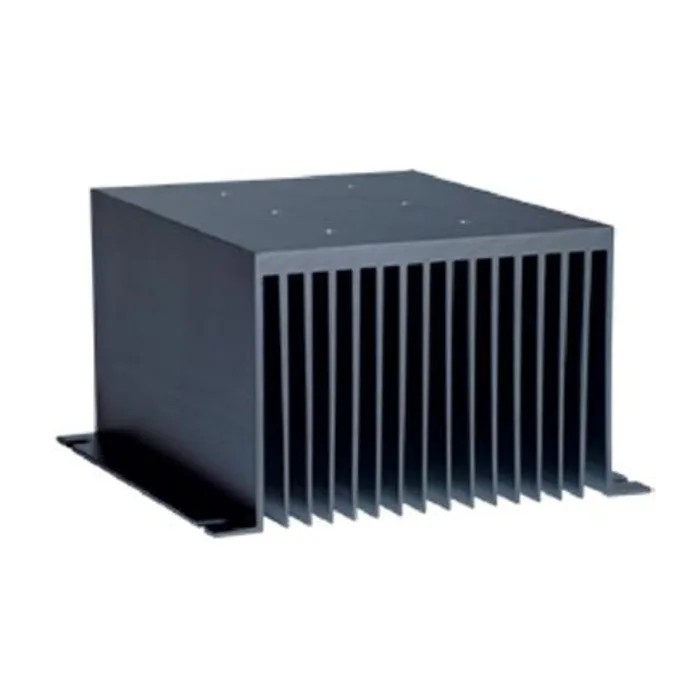

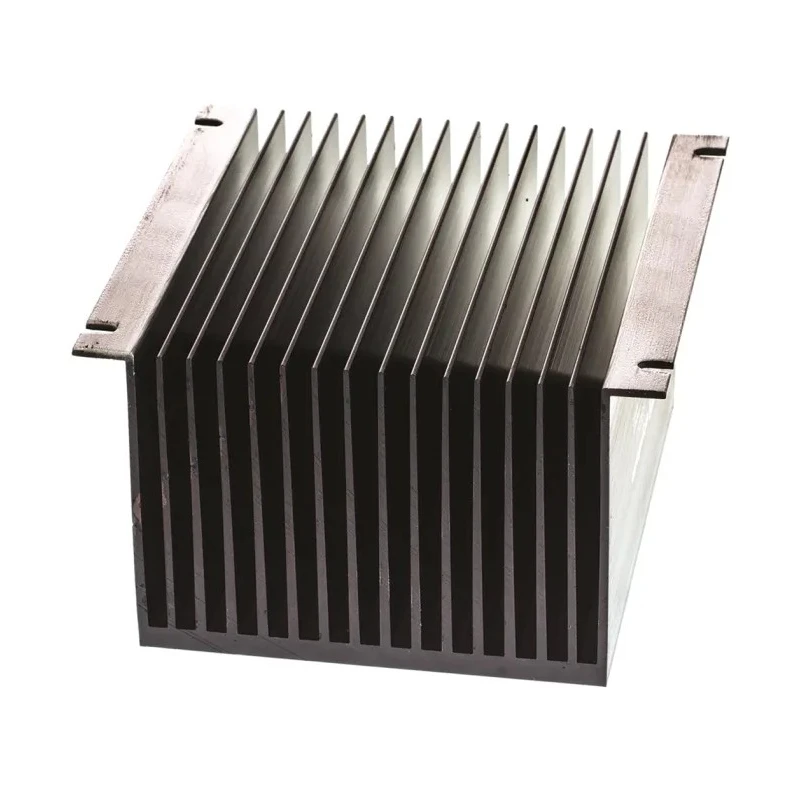

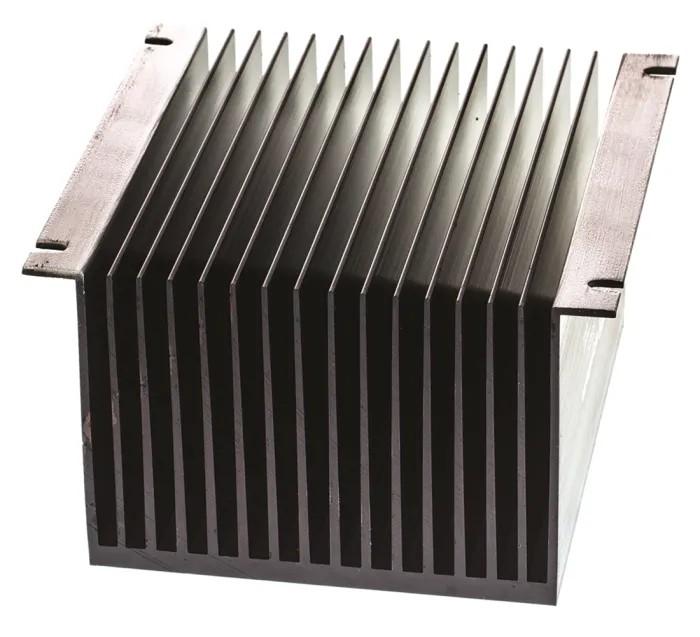

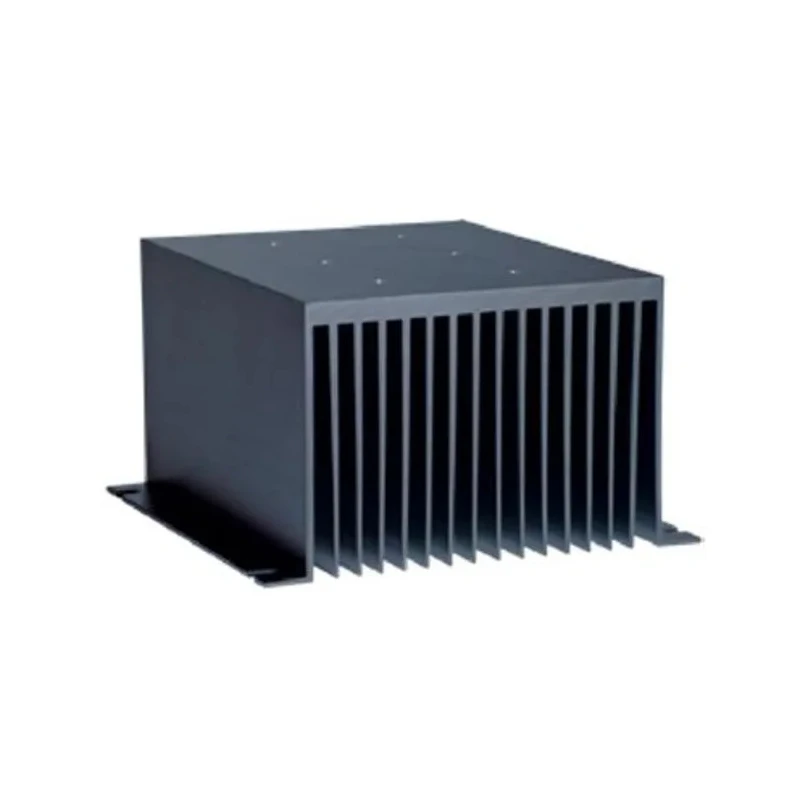

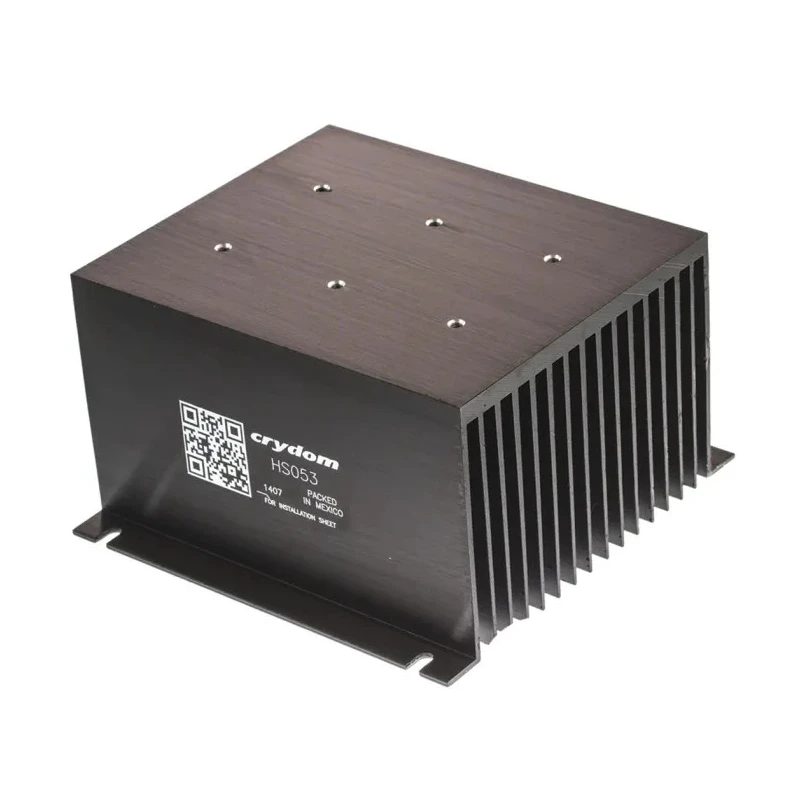

Sensata / Crydom Panel Relay Heatsink Aluminium Housing Panel Mount Low Thermal Resistance 0.5°C/W HS053

Sensata / Crydom HS053 Panel Relay Heatsink features an aluminium housing designed to efficiently prevent overheating of solid-state relays. Its low thermal resistance rating of 0.5°C/W ensures rapid heat transfer, maintaining device stability and optimal relay performance in industrial environments.

The heatsink supports fan installation ranging from 1 mm to 80 mm in size, allowing customizable cooling solutions based on system needs. Suitable for one, two, or three single or dual solid-state relays (SSRs) and 3-phase relays, it offers versatility for various industrial relay configurations.

Constructed with black anodised aluminium, the heatsink resists corrosion and wear in harsh industrial conditions. The lightweight design of approximately 1.4 kg means minimal mechanical strain when mounted on control panels.

Mounting is straightforward using panel screws with recommended torque between 1.7 and 2.2 Nm, ensuring a secure and stable installation. The fins on the heatsink create a large surface area, promoting efficient airflow and heat dissipation by expelling heated air into the environment.

This product is commonly used in computer networking and telecommunication appliances requiring reliable thermal management for solid-state relays. Certification to CSA, UL, EAC, CE, and RoHS standards underscores its compliance and suitability for demanding industrial applications.

Black anodised aluminium housing provides resistance to corrosion and wear. Low thermal resistance of 0.5 degrees Celsius per watt improves heat transfer. Supports mounting of 1 to 80 mm size fans for additional cooling.

Compatible with 1 to 3 SSRs or 3-phase relay configurations. Lightweight with an approximate weight of 1.4 kilograms. Secure panel mounting using screws with torque 1.7 to 2.2 Newton-meters. Finned design promotes effective ventilation and heat dissipation.

Ideal for use in telecommunications and computer networking equipment. Certified to multiple safety and environmental standards including CSA, UL, EAC, CE, and RoHS. Explore more Relay Accessories and heatsinks designed for industrial electrical systems at EnvMart.
