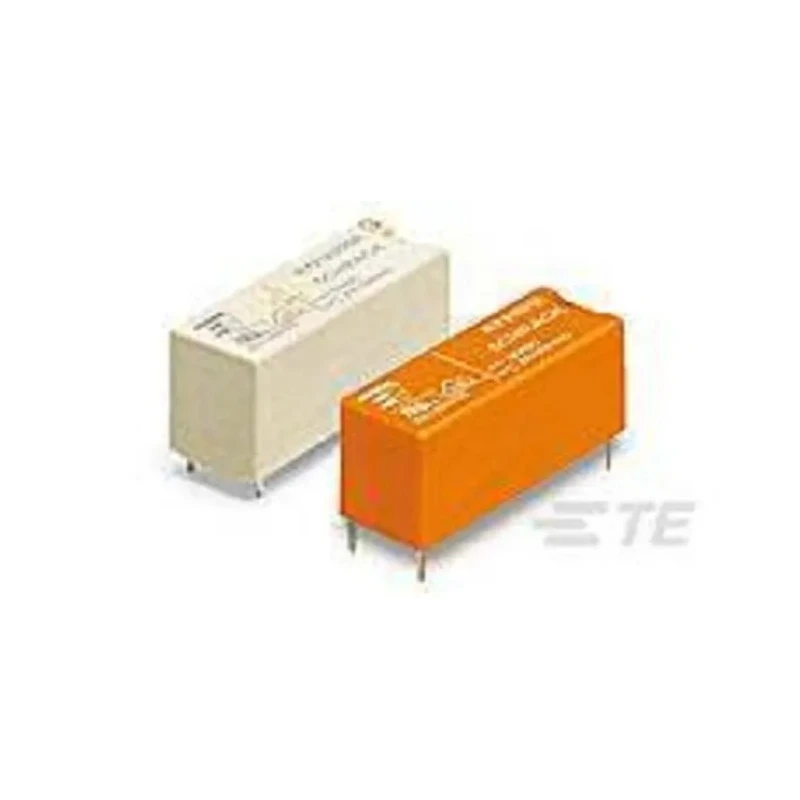

TE Connectivity PCB Monostable Relay, 24V DC Coil, 8A Switching Current, SPDT RY211024R / 1956164-1
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20mm |
| Model | RY211024R / 1956164-1 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS, UL |
| Coil Resistance | 100Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- The relay features a Single Pole Double Throw (SPDT) contact configuration suitable for various switching tasks.
- Designed for PCB mounting with solder-type terminals ensuring reliable electrical connections.
- Operates efficiently within temperatures from -40°C to 85°C.
- Rated for switching DC voltages up to 30V and AC voltages up to 250V.
- Constructed with silver alloy contacts to ensure durability and low contact resistance of 50 milliohms.
- Compact dimensions of 20mm length, 10mm width, and 15mm height allow integration into space-constrained circuits.
- The coil resistance is 100 ohms, consuming 400mW power for operation.
- Complies with RoHS and UL standards ensuring environmental and safety requirements.
Product Description
TE Connectivity RY211024R / 1956164-1 PCB Monostable Relay is engineered for reliable performance with a 24V DC coil and 8A switching current capacity. This compact power relay is designed to facilitate efficient switching in electronic circuits requiring a SPDT configuration.
Designed for PCB mounting with solder terminals, it ensures ease of integration into printed circuit boards in industrial and automation equipment. The relay operates safely over a wide temperature range from -40°C to 85°C, enabling use in challenging environments.
The relay's silver alloy contacts provide excellent conductivity combined with minimal contact resistance of 50 milliohms, optimizing signal integrity and operational longevity. It supports switching of DC voltages up to 30V and AC voltages up to 250V, suitable for a variety of electrical applications.
With precise coil specifications of 100 ohms resistance and a 400mW power rating, this monostable relay ensures stable actuation. Compliance with RoHS and UL standards guarantees adherence to environmental and safety norms.
Manufactured in the Czech Republic, this relay serves well in applications across industrial, automotive, HVAC, manufacturing, and control system domains. Its miniature size allows installation in compact assemblies without compromising performance.
The relay features a Single Pole Double Throw (SPDT) contact configuration suitable for diverse switching requirements. Coil voltage is rated at 24V DC for compatibility with common control voltages. Switching current capacity is 8 amps, appropriate for power relay applications.
Compact form factor with 20mm length, 10mm width, and 15mm height dimensions. Solder terminal type facilitates stable and secure PCB connections. Durable silver alloy contact material ensures reliability under electrical load.
Wide operating temperature range from -40°C to 85°C supports harsh environmental conditions. Compliant with RoHS and UL safety and environmental standards. Product weight is 8 grams, suitable for lightweight circuit designs.
Discover more power Relays at EnvMart to suit your electronics manufacturing and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This monostable relay has a switching current capacity of 8A, making it suitable for various power relay applications.
The coil voltage rating for this relay is 24V DC, which is compatible with common control voltages in electronic circuits.
This model has compact dimensions of 20mm in length, 10mm in width, and 15mm in height, allowing for integration into space-constrained circuits.
It features a Single Pole Double Throw (SPDT) contact configuration, suitable for a variety of switching tasks.
The maximum operating temperature for this relay is 85°C, enabling its use in challenging environments.
The relay is constructed with silver alloy contacts, which provide excellent conductivity and low contact resistance.
The contact resistance is rated at 50 milliohms, ensuring optimal signal integrity during operation.
This relay is rated for switching DC voltages up to 30V and AC voltages up to 250V, making it versatile for different applications.
It features solder-type terminals that ensure reliable electrical connections for PCB mounting.
The coil resistance is 100 ohms, and it consumes 400mW of power for operation.
This relay complies with RoHS and UL standards, ensuring it meets environmental and safety requirements.
This model is manufactured in the Czech Republic, ensuring adherence to quality manufacturing practices.
