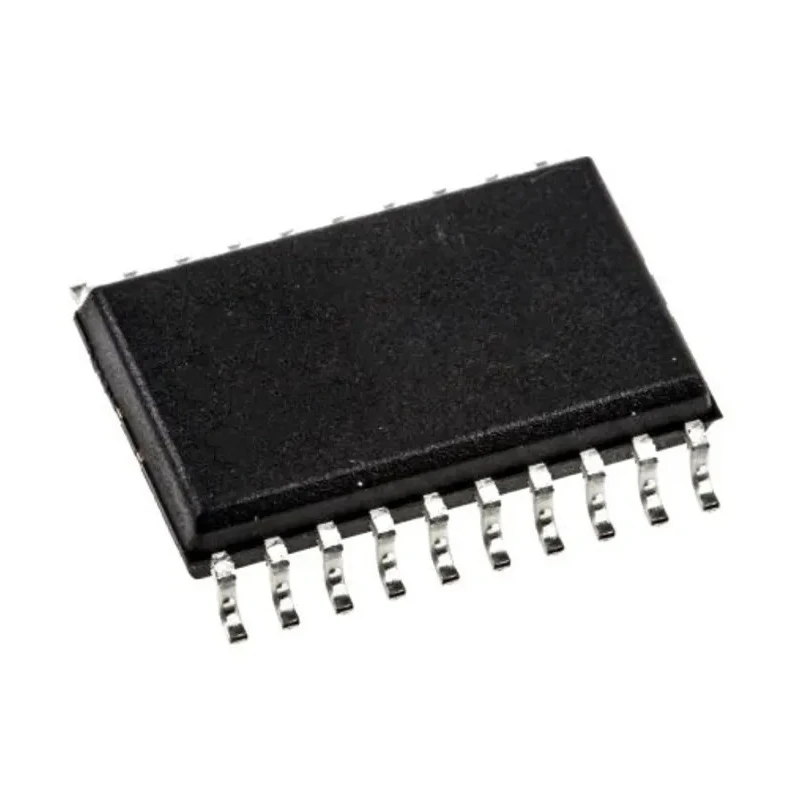

Microchip 12-bit AVR ATTINY Microcontroller 20 MHz 8kB FLASH 20-Pin SOIC ATTINY826-SU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | ATTINY826-SU |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | ATTINY |
| Package Type | SOIC |
| Ram size | 1kB |
| Standards/Approvals | REACH, RoHS3 |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | AVR |
| Program Memory Size | 8kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 18 |
| Analogue Comparators | 1 |
| Number of Timers | 3 |
| Instruction Set Architecture | AVR |
| ADCs | 15 x 12 Bit |
| Program Memory Type | FLASH |
| Serial communication interfaces | 2x USART, SPI, I2C |
Key Features
- Features 12-bit AVR CPU with hardware multiplier.
- Operates at maximum clock frequency of 20 MHz.
- Includes 8 kB Flash program memory and 1 kB SRAM.
- Equipped with 15 channels 12-bit ADC and 1 analog comparator.
- Offers 2 USARTs, SPI, and I2C serial communication interfaces.
- Comes in 20-pin SOIC package with surface mount type.
- Supports supply voltage range from 1.8V to 5.5V.
- Incorporates Core Independent Peripherals with low power features.
Product Description
Microchip ATTINY826-SU is a high-performance 12-bit AVR microcontroller designed for embedded systems requiring compact size and efficient processing. The 20 MHz maximum clock frequency enables responsive execution for control and signal processing tasks. Its 8 kB Flash memory and 1 kB SRAM provide sufficient resources for firmware and data handling in various industrial, consumer, and commercial applications.
This microcontroller supports a 20-pin SOIC surface mount package making it suitable for PCB assembly in compact spaces. The device core is based on the AVR architecture enhanced with a hardware multiplier for optimized arithmetic operations. It features a 12-bit differential ADC with programmable gain amplifier (PGA) for precise analog signal acquisition, supported by an analog comparator with an internal DAC reference.
The microcontroller provides multiple serial interfaces including 2 USARTs, SPI, and I2C, enabling flexible communication with external peripherals and sensors. It incorporates 3 timer/counter modules, supporting timing and counting operations essential for embedded control systems.
Designed with low power consumption in mind, the ATTINY826-SU includes core independent peripherals and an event system that allows advanced peripheral interactions without CPU intervention, enhancing efficiency in battery-powered and time-critical applications.
Commonly used in industrial automation, consumer electronics, HVAC controls, and measurement devices, this microcontroller meets REACH and RoHS3 standards ensuring environmental compliance.
Features 12-bit AVR CPU with hardware multiplier. Operates at maximum clock frequency of 20 MHz. Includes 8 kB Flash program memory and 1 kB SRAM. Equipped with 15 channels 12-bit ADC and 1 analog comparator. Offers 2 USARTs, SPI, and I2C serial communication interfaces.
Comes in 20-pin SOIC package with surface mount type. Supports supply voltage range from 1.8V to 5.5V. Incorporates Core Independent Peripherals with low power features. Includes 3 timers and an EEPROM of 128 bytes. Explore the Microchip Microcontroller series on EnvMart for a wide range of embedded system solutions tailored to your technological needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 20 MHz.
It includes 8 kB of Flash program memory.
This microcontroller is equipped with 15 channels of 12-bit ADC.
It offers 2 USARTs, SPI, and I2C serial communication interfaces.
It supports a supply voltage range from 1.8V to 5.5V.
The ATTINY826-SU comes in a 20-pin SOIC package.
This model includes 1 kB of SRAM.
It has a pin count of 20.
This microcontroller includes 3 timer/counter modules.
It meets REACH and RoHS3 standards for environmental compliance.
The width of this model is 7.5 mm.
It utilizes the AVR device core architecture.
