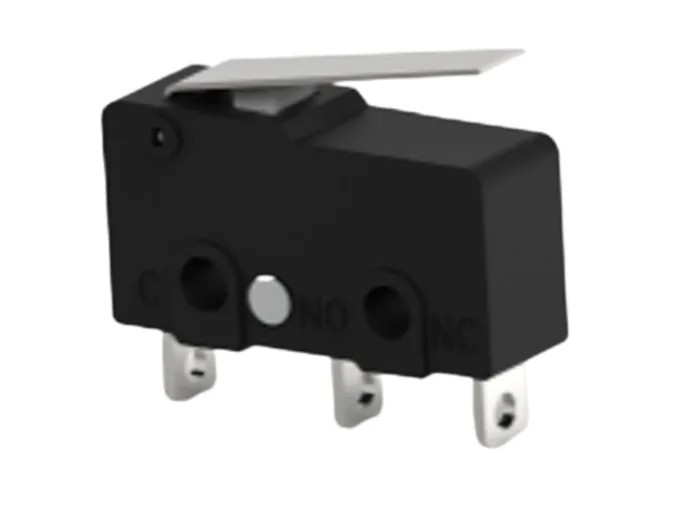

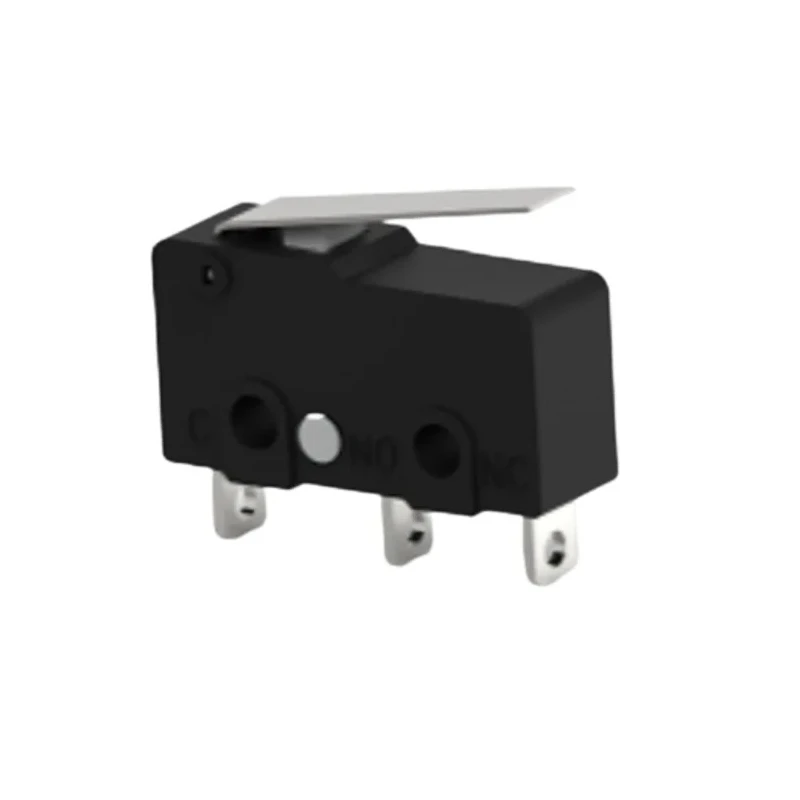

TE Connectivity Lever Snap Action Micro Switch, Solder Terminal, 3A, 250 V AC, 30 V DC, SPDT SAJ25YXHL0147SDTSEQ
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ25YXHL0147SDTSEQ |
| Series | SAJ2 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPDT |
| Actuator Type | Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 3A |
| Operating Force | 1.47N |
| Mechanical Life | 10000000Cycles |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Miniature |
Key Features
- Compact miniature microswitch with lever actuator for precise switching.
- Solder terminal type ensures secure and reliable connections.
- Rated current of 3A at 250 V AC and 30 V DC for versatile electrical use.
- Single pole double throw (SPDT) contact configuration for switching flexibility.
- Operating force of 1.47N suitable for sensitive mechanical actuation.
- Wide operating temperature range from -40°C to 75°C for diverse environments.
- Mechanical life expectancy of 10,000,000 cycles for high durability.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
TE Connectivity SAJ25YXHL0147SDTSEQ lever snap action micro switch is a precision miniature switch designed to convert mechanical motions into electrical signals. Featuring a lever actuator and solder terminals, it is suitable for a variety of applications including home appliances, consumer electronics, factory automation, and other industrial uses. The compact form factor makes it compatible with existing designs and systems.
The switch supports a contact current of 3A and operates safely at voltages up to 250V AC and 30V DC. Its SPDT configuration allows versatile switching operations. The operating force of 1.47N enables sensitive and reliable triggering. With a broad temperature range from -40°C to 75°C, it fits demanding environments and conditions.
Designed for longevity, the switch has a mechanical life rated at 10 million cycles. It meets RoHS compliance, ensuring eco-friendly manufacturing standards. The solder terminal type ensures a secure and durable electrical connection for reliable performance over time.
This micro switch finds extensive use in industrial automation, electrical control systems, manufacturing equipment, and consumer electronics. It is especially valued for its precision, compact size, and high reliability.
Compact miniature microswitch with lever actuator. Solder terminal for secure electrical connection. 3A current rating at 250V AC and 30V DC voltage rating. SPDT contact configuration for flexible switching. Operating force is 1.47N for sensitive actuation.
Temperature range from -40°C to 75°C. Mechanical life of 10 million cycles. RoHS compliant for environmental safety. Explore the range of Micro Switches and related electrical components on EnvMart for your industrial and domestic automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this micro switch is 75°C.
This model has a rated current of 3A and operates at voltages up to 250V AC and 30V DC.
It features a lever actuator, which allows for precise mechanical actuation.
The switch has a single pole double throw (SPDT) contact configuration, providing flexible switching options.
The operating force required for actuation is 1.47N, suitable for sensitive triggering.
The mechanical life expectancy of this micro switch is rated at 10 million cycles.
The minimum operating temperature is -40°C, allowing it to function in diverse environments.
It uses solder terminals, ensuring secure and reliable electrical connections.
Yes, it is compliant with RoHS standards, ensuring environmental safety.
This micro switch is suitable for applications in home appliances, consumer electronics, and industrial automation.
The model number of this micro switch is SAJ25YXHL0147SDTSEQ.
This micro switch belongs to the SAJ2 series.
