Accuride Rack Rail Telescopic Slide Steel Construction 406 mm Depth 100kg Max Load DZ3607-0016

Free Delivery in India | Lowest Global Shipping Charges

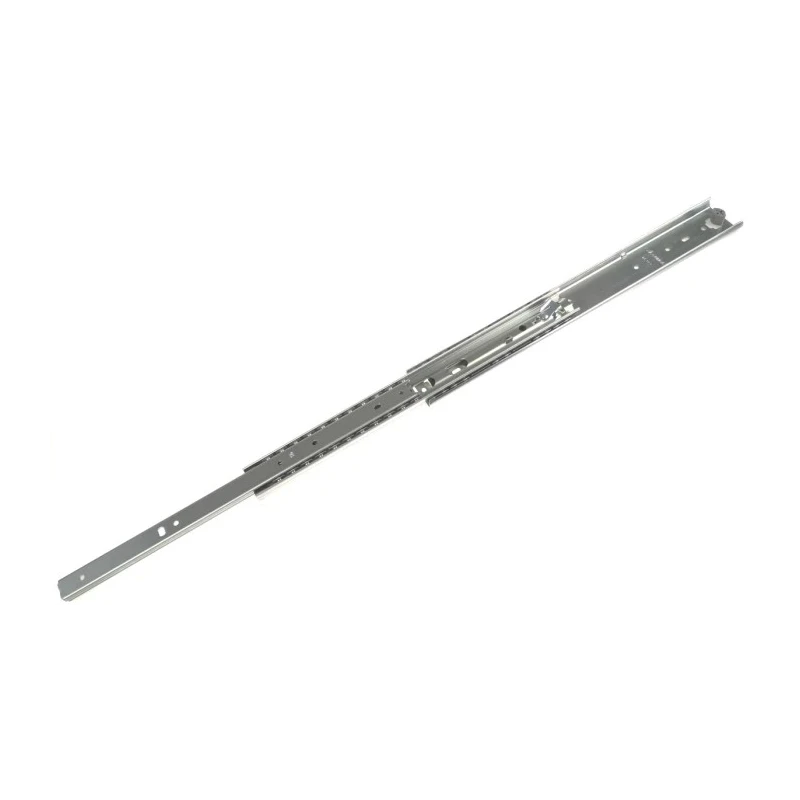

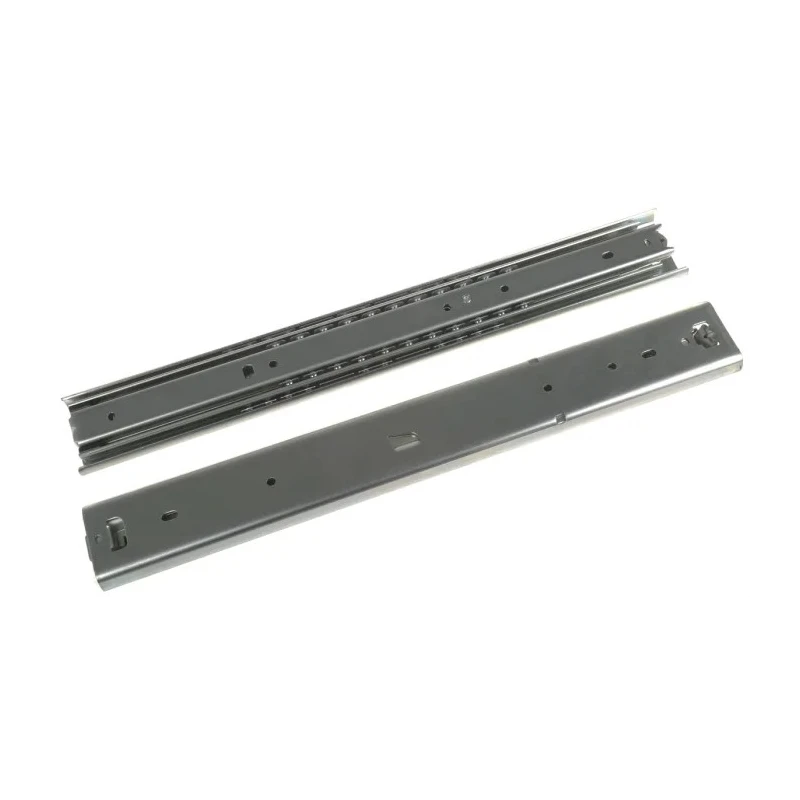

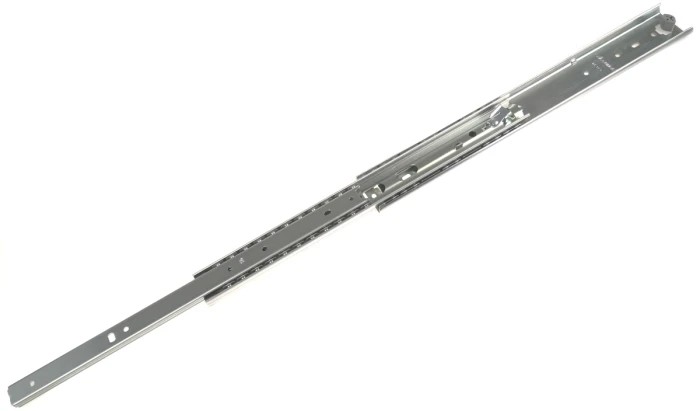

Accuride Rack Rail Telescopic Slide Steel Construction 406 mm Depth 100kg Max Load DZ3607-0016

Name: Accuride Rack Rail Telescopic Slide Steel Construction 406 mm Depth 100kg Max Load DZ3607-0016
Brand: Accuride
SKU: 176785
Price: 166.63 USD
Availability: InStock



Category Rack Rail Brand Accuride Condition New

Specifications

Country of Origin	India
Brand	Accuride
Material	Steel
Height	53.1mm
Model	DZ3607-0016
Depth	406mm
Width	19.1mm
Series	DZ3607
Maximum Load	100kg
Sub Type	Telescopic Slide
Closed Slide Length	406mm
Accuride Telescopic Rail, 356mm Depth, 90kg Max LoadBrand	Accuride

Key Features

Strong steel construction with electro zinc plating and clear chromate finish ensures durability.
Precision high performance bearings provide smooth operation.
Hold-in detent and lockout features enhance installation and safety.
Closed slide length is 406mm allowing full extension for racks.
Supplied without mounting brackets; recommended fixings are M4 cheese head screws.
Flat mounting reduces load capacity to approximately 25% of maximum rating.
Front disconnect and lockout features available on compatible models.
Ideal for server racks and electrical enclosures requiring secure, heavy-duty slides.

Product Description

Accuride DZ3607-0016 is a high-quality rack rail telescopic slide designed for electrical enclosures and server rack applications. Constructed from strong steel with an electro zinc plated and clear chromate finish, this slide offers excellent corrosion resistance and longevity in industrial environments.

The slide supports a maximum load of 100kg and has a depth of 406 mm. Its compact width of 19.1 mm and height of 53.1 mm make it suitable for a wide variety of enclosure and rack designs. The closed slide length of 406 mm affords full extension and smooth access to internal components.

Featuring precision high performance bearings, the slide provides smooth movement and reliable operation under heavy loads. The hold-in detent function helps secure the slide in position, while the lockout feature ensures safe maintenance and installation procedures.

Mounting brackets and fittings are not included and should be sourced separately. Installation requires M4 cheese head screws up to 2.5 mm high and 9.6 mm diameter according to DIN 85 standards. It is essential to use all fitting positions to maintain the maximum load rating, as flat mounting reduces capacity significantly.

This telescopic slide is ideal for industrial, electrical, automation, server rack, and data centre applications where robust, reliable sliding mechanisms are critical. It supports demanding environments including manufacturing and commercial electrical enclosures.

Strong steel construction with corrosion-resistant plating. Supports up to 100kg load capacity. Precision high performance bearings for smooth operation. Dimensions: 406 mm depth, 19.1 mm width, 53.1 mm height. Closed slide length: 406 mm allowing full extension.

Hold-in detent and lockout safety features. Mounting bracket sold separately; use recommended M4 screws. Suitable for server racks, enclosures, and industrial electrical applications. Recommend use in electrical automation and commercial installations.
