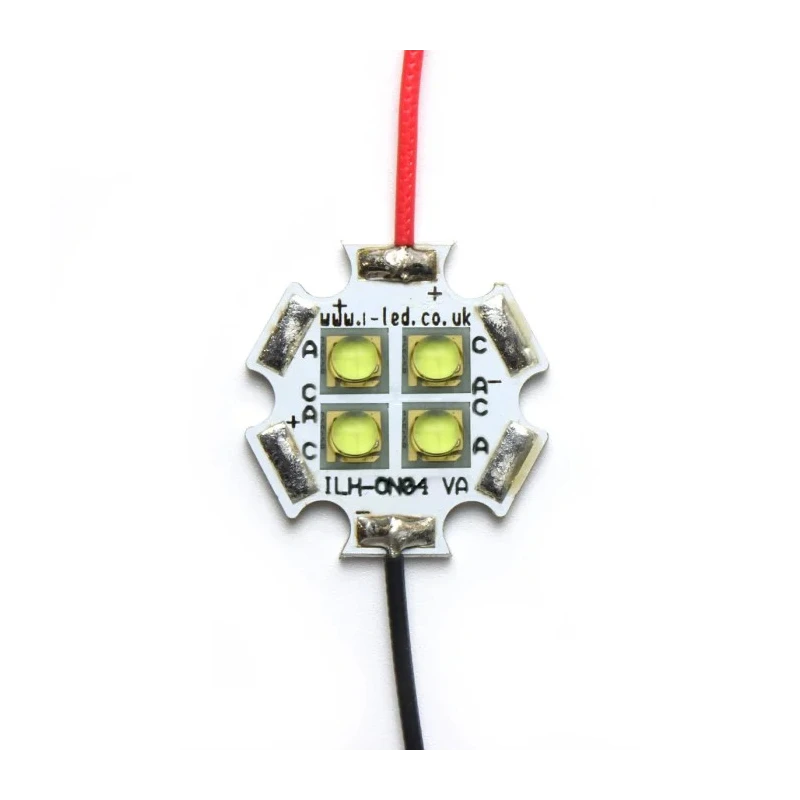

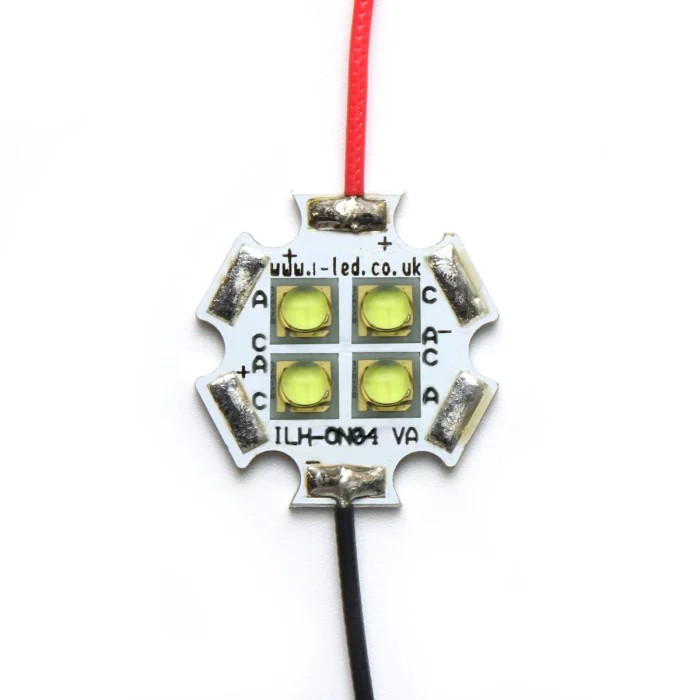

Intelligent LED Solutions OSLON 80 4+ PowerStar LED Array 4-LEDs White LED 5700K ILH-ON04-STWH-SC211-WIR200.
Specifications
| Country of Origin | India |
|---|---|
| Brand | Intelligent LED Solutions |
| Current | 1A |
| Model | ILH-ON04-STWH-SC211-WIR200. |
| Connection Type | Solder |
| Output type | Constant Current |
| Series | OSLON 80 4+ PowerStar |
| Outside diameter | 20mm |
| Number Of Leds | 4 |
| Power Dissipation | 8.68W |
| Standards/Approvals | RoHS |
| Colour Temperature | 5700k |
| LED Colour | White |
| Fixing Hole Diameter | 2mm |
| Better World Verification | UK Energy Efficiency Label C |
| LED Voltage | 10.8, 14V |
| Typical Luminous Flux | 576lm |
| PowerStar size (L x W x H) | 20mm x 20mm x 3.85mm |
Key Features
- Includes four Oslon SSL 80 ThinGan LEDs integrated in a compact 20 mm square array.
- LED array operates at a current of 1 amp, delivering a typical luminous flux of 576 lumens.
- Features constant current output with 10.8 to 14 volts LED voltage range for stable operation.
- Constructed with aluminium substrates and equipped with integral 80° silicone resin lenses for optimal thermal management and light dispersion.
- Onboard driver and secondary optics included to enhance lighting performance and ease of installation.
- Pre-wired with 200 mm connecting wires and mounting holes for M3 screws for straightforward mounting.
- Power dissipation is rated at 8.68 watts ensuring efficient energy use.
- Designed for general lighting, decorative, task, spot, retail, downlighting and entertainment lighting applications.
Product Description
Intelligent LED Solutions ILH-ON04-STWH-SC211-WIR200. LED Array combines advanced OSLON 80 4+ PowerStar LED technology incorporating 4 high-performance white LEDs with a colour temperature of 5700K, suitable for a variety of professional lighting applications. This LED array operates efficiently at a current of 1 amp and voltage range of 10.8 to 14 volts with constant current output, ensuring stable and reliable illumination.
Manufactured on aluminium substrates, the design optimizes thermal dissipation, supported by a low thermal resistance of 7 K/W. The compact size of 20 mm x 20 mm x 3.85 mm makes it ideal for embedded applications requiring powerful yet small footprint lighting solutions. Secondary optics with integral 80° silicone resin lenses deliver superior light distribution and beam shape control.
The product is prewired with 200 mm connecting wires and includes mounting holes for M3 screws, facilitating easy installation across diverse applications including general lighting, decorative lighting, task lighting, spot lighting, retail displays, downlighters, and entertainment lighting setups.
Power dissipation is 8.68 watts, balancing brightness with efficiency, while onboard driver circuitry provides additional operational reliability. The LEDs offer up to 100,000 hours of service life to 70% of the original brightness, underlining the product's durability for industrial and commercial usage.
Safety notes specify proper heat sinking requirements to prevent overheating and damage, emphasizing the need for appropriate power supply selection for reliable operation. Includes four high-efficiency Oslon SSL 80 LEDs within a compact array.
Current rating of 1 amp and voltage range of 10.8 to 14 volts. Durable aluminium substrate construction for thermal management. Integral 80° silicone lens secondary optics optimize light output. Onboard driver and prewired 200mm leads simplify electrical integration.
Mounting holes for M3 screws enable secure installation. Rated for extended lifespan up to 100,000 hours at 70% brightness. Power dissipation of 8.68 watts supports efficient operation. Applicable in multiple lighting use cases including retail and entertainment.
Explore the Intelligent LED Solutions range of LED Arrays at EnvMart for reliable, high-performance lighting components designed for professional and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The typical luminous flux of this LED array is 576 lumens.
This model operates within a voltage range of 10.8 to 14 volts.
The current rating for this LED array is 1 amp.
The dimensions of this LED array are 20 mm x 20 mm x 3.85 mm.
It uses a solder connection type.
The LED array is constructed with aluminium substrates for optimal thermal management.
The power dissipation rating is 8.68 watts.
The colour temperature of the LEDs in this array is 5700K.
This LED array is suitable for general lighting, decorative lighting, task lighting, spot lighting, retail displays, downlighters, and entertainment lighting setups.
Yes, it includes integral 80° silicone resin lenses as secondary optics for optimal light dispersion.
The LEDs offer a lifespan of up to 100,000 hours at 70% of the original brightness.
Proper heat sinking is required to prevent overheating and damage, along with appropriate power supply selection for reliable operation.
