Intelligent LED Solutions 18W 1 Output Constant Current Dimmable LED Driver, 26V to 52V, 350mA IP20
Specifications
| Country of Origin | China |
|---|---|
| Brand | Intelligent LED Solutions |
| Model | IP20 |
| IP Rating | IP20 |
| Mount Type | Screw |
| Series | IZC |
| Configuration | Encapsulated |
| Sub Type | LED Driver |
| Operating Modes | Constant Current |
| Number of outputs | 1 |
| Terminal type | Screw |
| Maximum Output Power | 18W |
| Input Voltage | 220, 240V |
| Output Voltage | 26, 52V |
| Power Dissipation | 18W |
| Primary Type | AC-DC |
| Driver Current | 350mA |
| LED Voltage | 240V |
| Standards/Approvals EN55105, EN61347-1 | 2001, EN61347-2-13:2001, EN61547 |
| ILS, 15 → 52V Output, 18W Output, 350mA Output, Constant CurrentBrand | Intelligent LED Solutions |
Key Features
- Operates with input voltage ranging from 220V to 240V AC.
- Provides an output voltage range of 26V to 52V with a constant current of 350mA.
- Maximum output power rating is 18 watts for efficient energy use.
- Features IP20 rated encapsulated housing suitable for indoor installations.
- Supports 1-100% triac dimming with leading and trailing edge operation.
- Equipped with overload, short circuit, and thermal protection for durability.
- Class II rated with captive terminal screws for easy and secure mounting.
- Includes snap lock cable strain relief for installation convenience.
Product Description

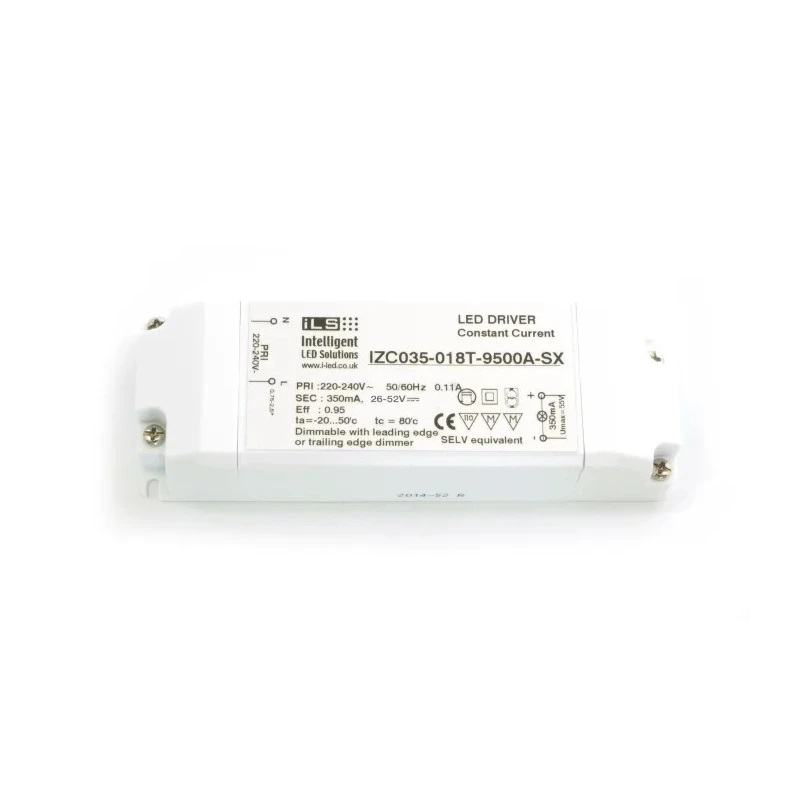

Intelligent LED Solutions IZC035-018T-9500A-SX is an 18W, single output, dimmable constant current LED driver designed primarily for indoor LED lighting. It operates with an input voltage of 220 to 240V AC and delivers a regulated output voltage ranging between 26V to 52V at a driver current of 350mA, ensuring stable LED performance.
This LED driver is encapsulated with an IP20 rating, making it suitable for residential, retail, mood lighting, LED backlighting, and light sculptures where protection against solid objects is required but not water.
The device incorporates triac dimming functionality allowing brightness adjustment from 1% to 100%, compatible with both leading and trailing edge dimmers. It maintains a high power factor of 0.95, enhancing electrical efficiency.
Its robust design includes overload, short circuit, and thermal protections, ensuring reliable and safe operation. Installation is simplified via captive terminal screws and snap lock cable strain relief, facilitating secure mounting and connection.
Compliance with international standards such as EN55105, EN61347-1:2001, EN61347-2-13:2001, and EN61547 guarantees the product's electrical safety and electromagnetic compatibility.
Operates on 220-240V AC input voltage. Outputs constant current of 350mA with variable output voltage from 26V to 52V. Rated maximum output power of 18W supporting efficient energy consumption. IP20 encapsulated mount type suitable for indoor lighting applications.
Triac dimmable with 1-100% brightness control, compatible with both leading and trailing edge dimmers. Protective features include overload, short circuit, and thermal protection. Class II rating providing extra electrical insulation for safety.
Equipped with captive terminal screws and snap lock cable strain relief for ease of installation. Conforms to EN55105, EN61347-1, EN61347-2-13, and EN61547 standards to ensure quality and safety.
This LED driver is ideal for diverse industrial and commercial applications such as residential LED lighting, retail lighting, LED backlighting, mood lighting, and artistic light sculptures. Its design balances efficiency, safety, and ease of installation.
