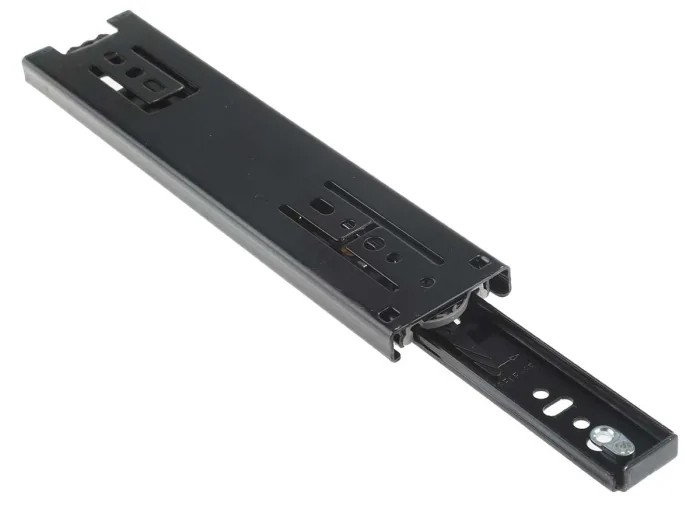

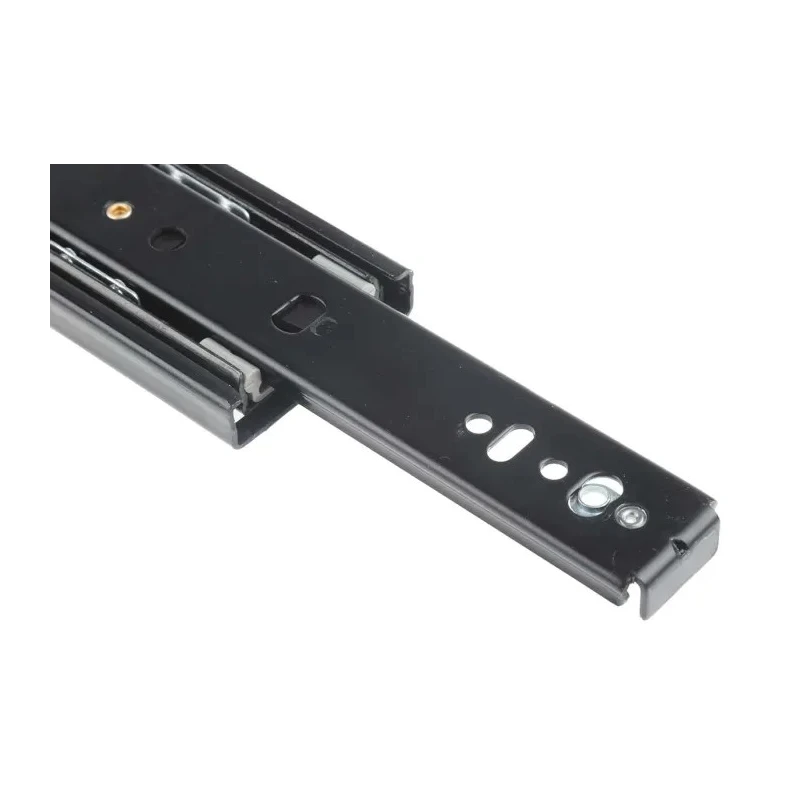

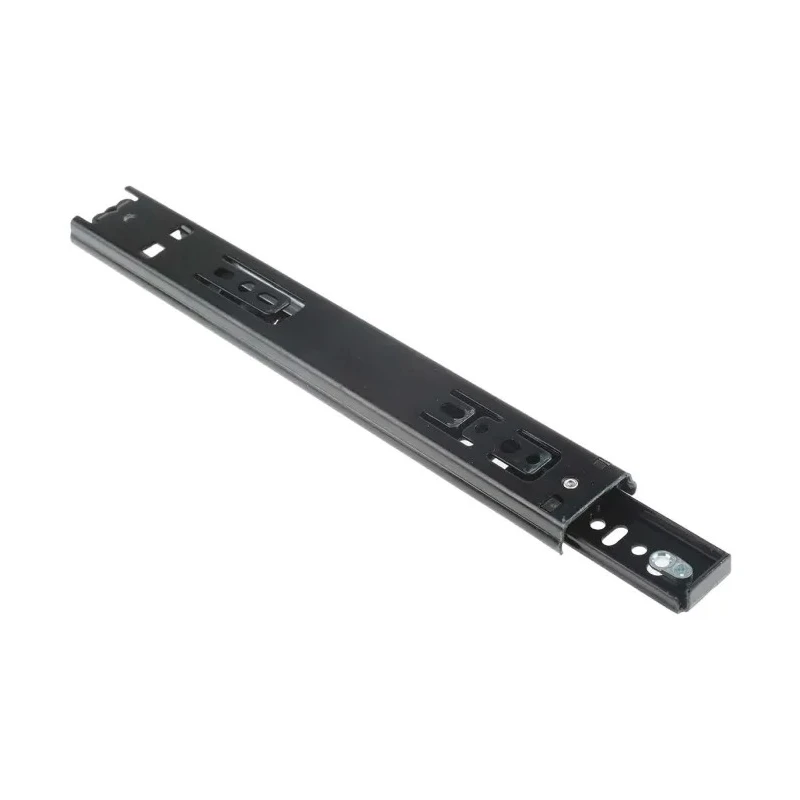

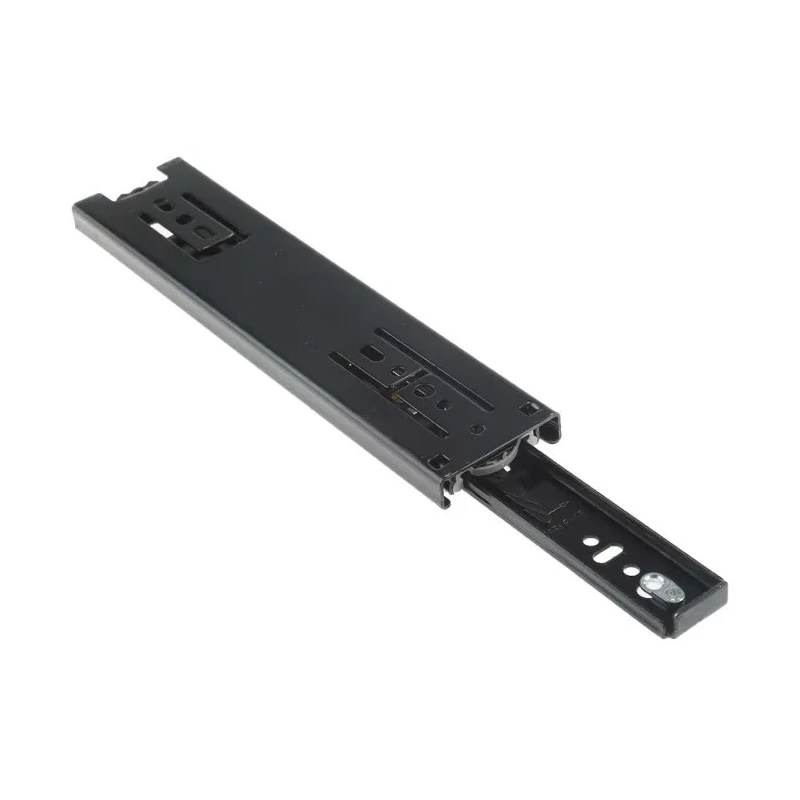

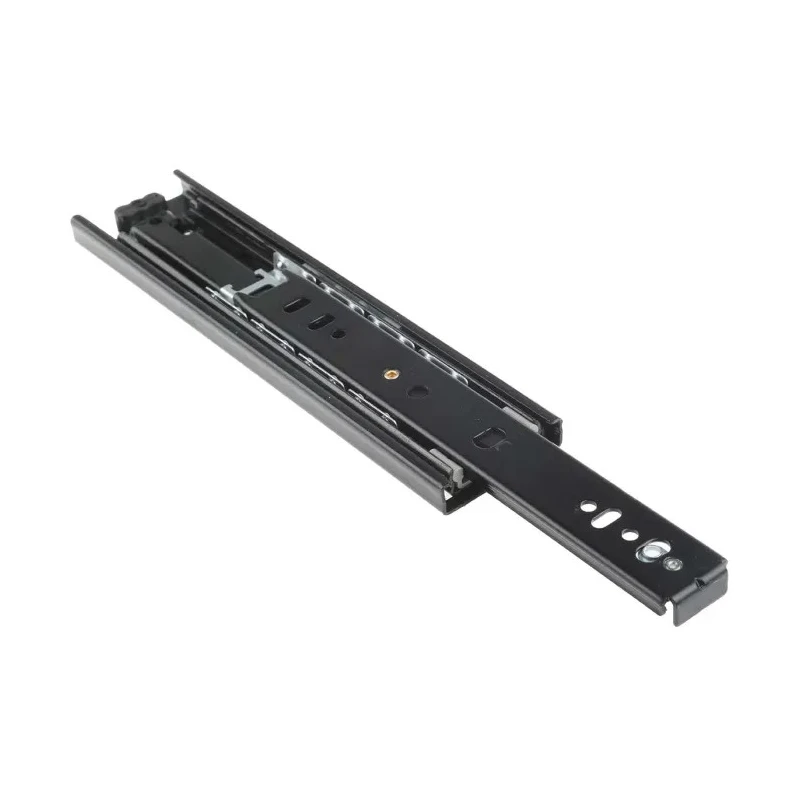

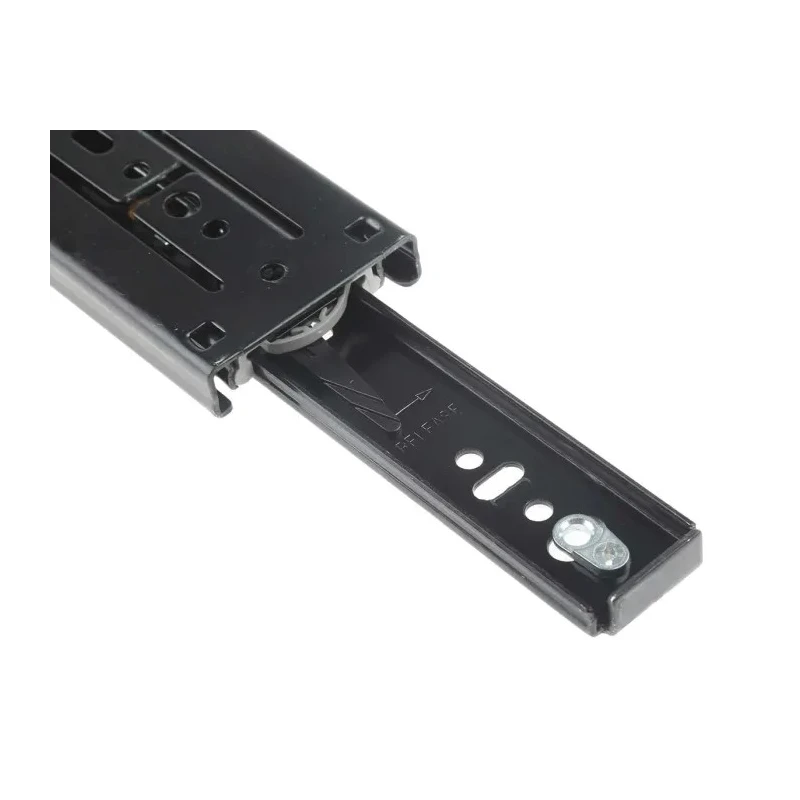

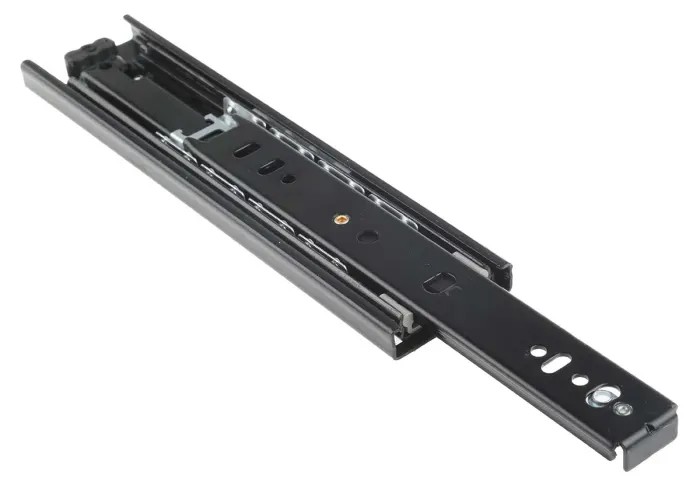

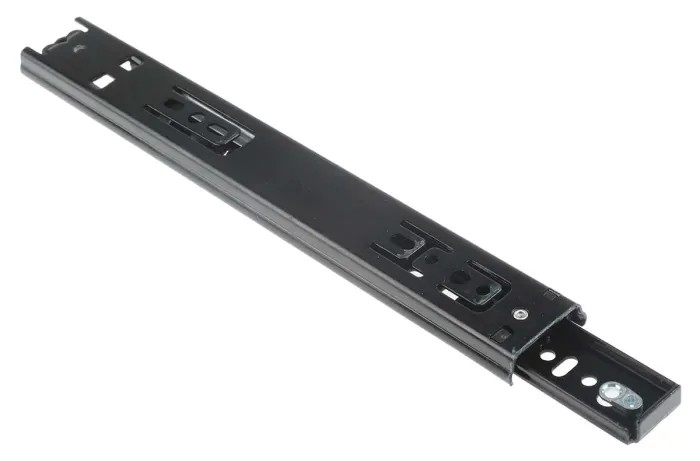

Accuride Hold In Steel Drawer Slide 50kg Load 199mm DB 3832-0020

Accuride DB 3832-0020 hold in steel drawer slide is a light duty telescopic ball bearing side mount drawer runner with a maximum load capacity of 50kg and a closed length of 199mm. Manufactured in Mexico, it features a durable zinc plated steel construction and provides a smooth and quiet sliding action suitable for industrial, commercial, and laboratory storage applications.

The full 100% extension capability allows complete access to drawer contents. The self-cleaning ball retainer removes foreign particles from the ball bearings and protects the runner raceways for extended service life. The hold-in detent feature keeps the drawer securely closed until additional pressure is applied, reducing unintended drawer openings.

Additional features include a front disconnect lever mechanism enabling easy removal of the drawer for maintenance or cleaning without tools. The integrated cam adjustment provides a 3.2mm lateral adjustment on the drawer front ensuring precise alignment for aesthetics and functionality.

Installation options are flexible, with compatibility for M4 screws, 4mm wood screws, or 6mm Euro screws to suit various cabinetry standards. This slide is specifically designed for indoor use and should be protected from excess moisture, dirt, corrosion, and chemical fumes to maintain optimal performance and longevity.

These drawers are ideal for use in storage furniture, cabinetry, laboratory units, office furniture, and commercial equipment requiring reliable and smooth drawer operation. Optional brackets are available separately for enhanced mounting options.

Constructed from durable steel with zinc plating for corrosion resistance. Maximum load capacity of 50kg with quiet ball bearing slide action. Full extension with 203mm travel length for complete drawer access. Hold-in detent mechanism secures drawer when closed.

Front disconnect for easy drawer removal without tools. 3.2mm cam adjustment on drawer front for precise alignment. Suitable for indoor storage, commercial, and laboratory applications. Supports mounting with M4, 4mm wood, or 6mm Euro screws.
