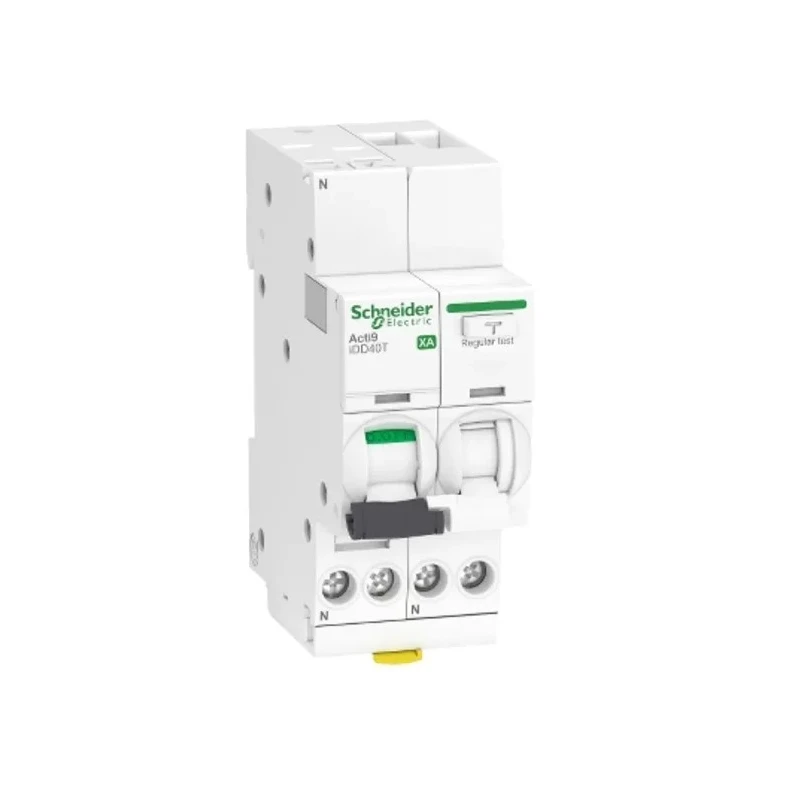

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 16A Current Rating, 1-Pole, 30 mA Trip A9DQ2616

Schneider Electric A9DQ2616 Residual Current Circuit Breaker with Overload Protection is engineered for dependable circuit safety combining residual current sensitivity and overload protection in a compact 1-pole design rated at 16A. This device employs advanced thermal-magnetic trip unit technology ensuring rapid response to overcurrent and earth leakage faults with a trip sensitivity of 30 mA.

The breaker features a toggle switch reset actuator with ON/OFF and trip indicator providing clear operational status. Designed for DIN rail mounting, it offers ease of installation and maintenance in electrical panels.

Conforming to rigorous standards such as EN/IEC 60947-2 and RoHS, this breaker guarantees high quality and environmental compliance. Its 6 kA breaking capacity and type C tripping characteristics make it ideal for residential and distribution system protection where reliable interruption of short circuits and overloads is essential.

With dimensions of 85 mm height, 36 mm width, and 73 mm depth, it fits compactly into switchboards without compromising performance. It withstands impulse voltages up to 4 kV and supports electrical durability rated at 20,000 switching cycles, making it suitable for demanding applications.

Its operational ambient temperature range spans from -5 °C to 60 °C with resistance to 95% relative humidity, ensuring reliable function in diverse environmental conditions. The breaker includes a padlockable feature for enhanced safety and is a Schneider Green premium-class product demonstrating energy efficiency and sustainability.

Device features thermal-magnetic trip mechanism for enhanced circuit protection. Equipped with toggle switch reset actuator for easy operation. Mounts securely on DIN rail for convenient installation. Complies with industry standards including EN/IEC 60947-2 and RoHS.

Provides instantaneous earth-leakage protection with type C tripping characteristics. Breaking capacity of 6 kA ensures robust fault interruption capability. Compact form factor with dimensions: 85 mm height, 36 mm width, and 73 mm depth.

Suitable for distribution, overcurrent protection, and residential applications. Impulse withstand voltage rated at 4 kV for electrical durability. Operates reliably within ambient temperatures from -5 to 60 °C with up to 95% relative humidity.

This residual current breaker is ideal for industrial, residential, and commercial electrical distribution systems requiring high safety standards and protection from faults. Browse other Schneider Electric circuit protection devices on EnvMart for complementary equipment and accessories.
