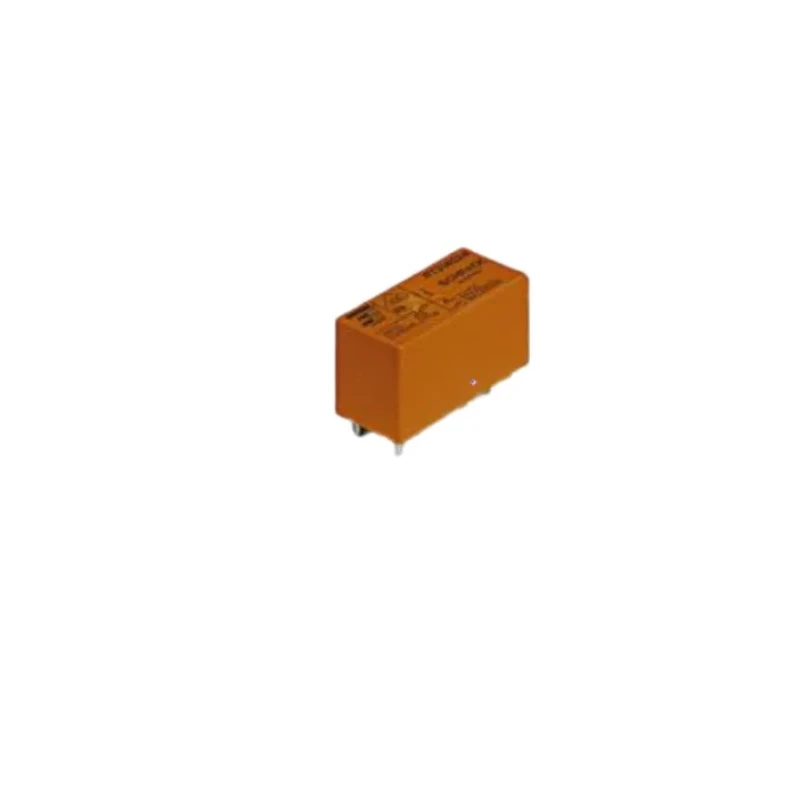

TE Connectivity PCB Power Relay Module 5V DC Coil 15A Switching Current DPDT RT424005

TE Connectivity RT424005 PCB Power Relay Module is a high-quality power relay designed for reliable electrical switching in industrial, commercial, and laboratory automation applications. Featuring a 5V DC coil, this relay module can handle a significant switching current of 15 amperes with a DPDT (double pole double throw) contact configuration, allowing for versatile circuit control.

The module is compact with dimensions of 12.7 mm width, 29 mm length, and 15.7 mm height, making it ideally suited for PCB mounting in dense electronic assemblies. The contacts are made of a silver nickel alloy, providing excellent conductivity and durability under electrical loads.

Operating over a broad temperature range from -40°C to 85°C, the power relay is engineered to function effectively in harsh environmental conditions. It incorporates a coil resistance of 62 ohms and requires a coil power of 403 milliwatts, indicative of efficient coil energy consumption.

This power relay module complies with international safety and quality standards including IEC 60335-1, RoHS, and VDE certifications, ensuring robust performance and environmental compliance. The relay’s insulation characteristics, contact material, and construction provide reliable long-term operation.

This power relay module has a double pole double throw (DPDT) contact configuration for versatile switching applications. Equipped with a 5V DC coil voltage suitable for low voltage control circuits. Supports a high switching current capacity of 15 amperes for robust power handling.

Compact physical dimensions with 12.7 mm width, 29 mm length, and 15.7 mm height for PCB mounting. Constructed with silver nickel alloy contact material to ensure reliable electrical connectivity. Operates reliably in temperature ranges from -40°C to 85°C for demanding industrial environments.

Coil resistance is precisely 62 ohms with coil power rating of 403 milliwatts ensuring efficient coil operation. Designed to meet IEC 60335-1, RoHS, and VDE standards ensuring compliance and safety. Mount type is PCB plug-in, facilitating easy integration into printed circuit boards.

Developed in Austria, reflecting high manufacturing standards and quality control.

This TE Connectivity power relay module is ideal for use in electronics and electrical applications including industrial automation, power control systems, HVAC equipment, and laboratory instrumentation. Its reliability and compliance with standards make it suitable for design engineers and technicians seeking quality power relay components.
