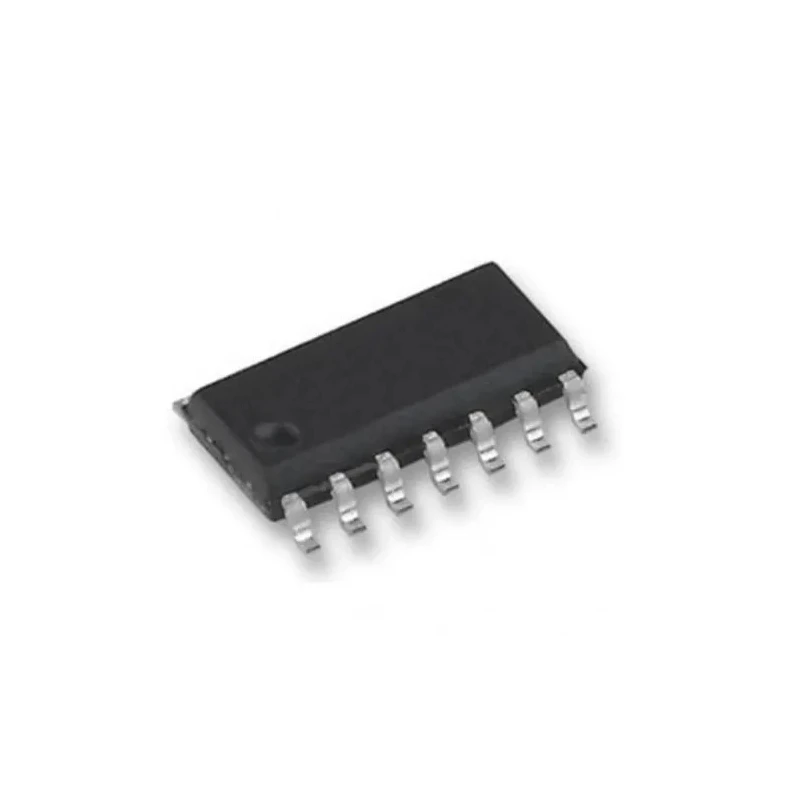

Microchip 8 bit PIC Microcontroller PIC16F18323T-I/SL, 32 MHz, 3.5 kB FLASH, 14-Pin SOIC

Microchip PIC16F18323T-I/SL is a high-performance 8 bit PIC microcontroller designed for a wide range of industrial and commercial electronic applications. It operates at a maximum clock frequency of 32 MHz, delivering efficient processing power with a RISC instruction set architecture. The device incorporates a 3.5 kB FLASH program memory and 256 bit RAM, enabling compact and versatile program development.

This microcontroller features 12 programmable input/output pins, allowing extensive interfacing capability for a variety of external peripherals and sensors. It includes one 5-bit digital-to-analog converter (DAC) and two analogue comparators, enhancing signal processing capacity for analog applications.

With 11 analog-to-digital converters (ADCs) each with 10-bit resolution, this PIC16 device supports accurate analog signal conversion required in control and measurement systems. It is housed in a 14-pin SOIC surface mount package, measuring 8.65 mm in length, 6 mm in width, and 1.75 mm in height, which suits compact assembly environments.

The device supports an operating voltage range from 2.3V to a maximum of 5.5V, exhibiting robust operation under varying power supply conditions. Its wide operating temperature range from -40°C to 85°C ensures reliable functionality in harsh industrial environments.

Additional features include three integrated timers facilitating precise timing and control functionalities as needed in embedded system designs. This microcontroller is ideal for applications requiring low power consumption combined with flexible peripheral integration, such as industrial automation controllers, consumer electronics, and power management systems.

Microchip’s PIC16F18323T-I/SL microcontroller is compliant with standard semiconductor quality requirements and does not carry specific automotive standards. Its flexible pin selection via Peripheral Pin Select (PPS) technology further enhances design customization.

Operates at a maximum clock frequency of 32 MHz. 3.5 kB of FLASH program memory storage. 256 bit RAM for data operations. Features 12 programmable I/O pins. Includes 1 x 5-bit DAC and 2 analogue comparators. Supports 11 x 10-bit ADC channels.

Operates under -40°C to 85°C temperature range. Packaged in 14-pin SOIC surface mount form factor. Complies with standard semiconductor quality approvals. Explore more high-quality Microcontrollers at EnvMart to support your next electronics project or industrial application.
