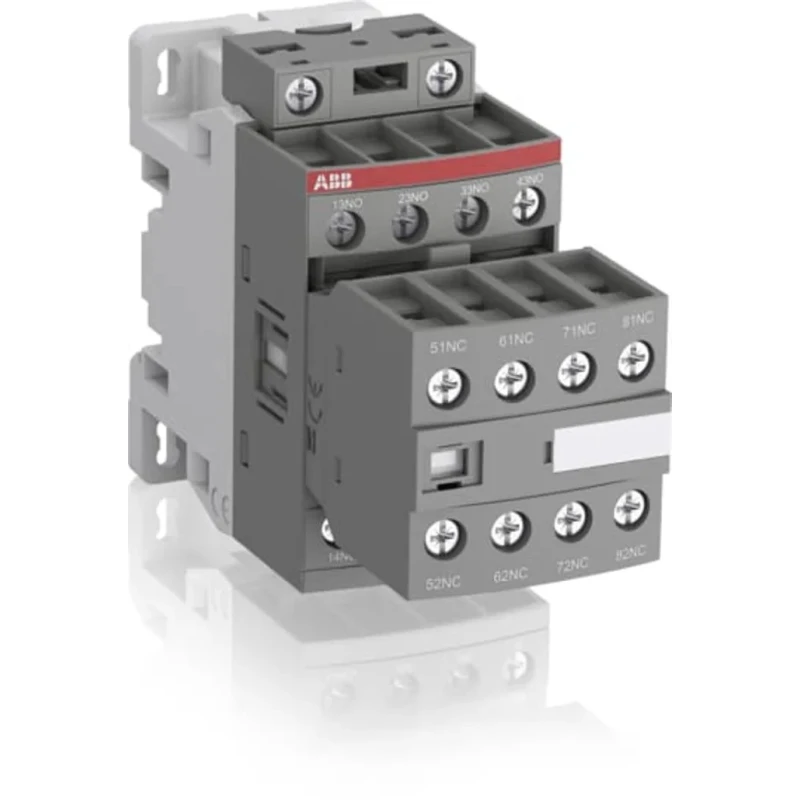

ABB Contactor Relay , 12V dc and 20V dc Coil, 8-Pole, 6A Contact Current, 140W Power Rating, 7 NO/1 NC Auxiliary NFZ71E-20



Category Contactor Relay Brand ABB Condition New

Specifications

Country of Origin	France
Brand	ABB
Length	110.5mm
Model	NFZ71E-20
Depth	110.5mm
Width	45mm
Mount Type	DIN Rail
Series	NFZ71E-20
Power Rating	140W
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	8
Contact Voltage	690V
Coil Voltage	12, 20V dc
Normal State Configuration	7 NO/1 NC
Contact Current	6A
Number of Auxiliary Contacts	8
Auxiliary Contact Configuration	7 NO/1 NC
Operational Current Ie	16A
Control Circuit Voltage Uc	20V dc
Pole and Throw Configuration	8

Key Features

Designed for robust operation in industrial automation with 8 poles.
Features a coil voltage suitable for 12V dc and 20V dc applications.
Equipped with 7 normally open and 1 normally closed auxiliary contacts for flexible control.
Supports a high contact voltage rating of 690V and power rating of 140W.
DIN rail mount type for convenient installation in control panels.
Screw terminals provide secure electrical connections.
Wide operating temperature range from -40°C up to +70°C for harsh environments.
Complies with standards including CSA C22.2 No.14, EN 60947-5-1, IEC 60947-5-1, and UL 508.

Product Description

ABB NFZ71E-20 Contactor Relay is engineered for controlling auxiliary and control circuits in demanding industrial environments. It operates efficiently with coil voltages of 12V dc and 20V dc, supporting a contact current of 6A and power rating of 140W. The relay's 8-pole design combined with 7 normally open and 1 normally closed auxiliary contacts ensures versatile switching capabilities.

This Contactor Relay mounts easily on DIN rails and includes screw terminals for reliable wiring. It is constructed to operate smoothly within a broad temperature range from -40°C to +70°C, making it suitable for challenging industrial conditions including automation and manufacturing processes.

Safety and compliance are ensured through adherence to international standards such as CSA C22.2 No.14, EN 60947-5-1, IEC 60947-5-1, and UL 508. The relay supports high control voltages up to 690V and is equipped with a built-in surge protection mechanism to handle electrical stress.

Its compact size, with dimensions 110.5mm length, 45mm width, offers easy integration into electrical control panels. The relay is designed to withstand short voltage dips, ensuring continuous reliable performance aligned with SEMI F47-0706 standards.

Ideal for integration with PLC outputs and other automation controls, this ABB NFZ71E-20 relay provides high-performance switching and control solutions tailored for industrial, manufacturing, and process control applications.

Designed for high current management with 6A contact current. Wide control voltage range supporting 12V and 20V dc coils. 7 NO and 1 NC auxiliary contacts ensure versatile operation modes. Durable DIN rail mount design for ease of installation in control systems.

Screw terminal connections for secure wiring compatibility. Operates reliably in temperatures from -40°C to 70°C. Conforms to global standards CSA, EN, IEC, and UL for safety and quality. Browse EnvMart's range of ABB contactors and relays for reliable electrical control solutions.
