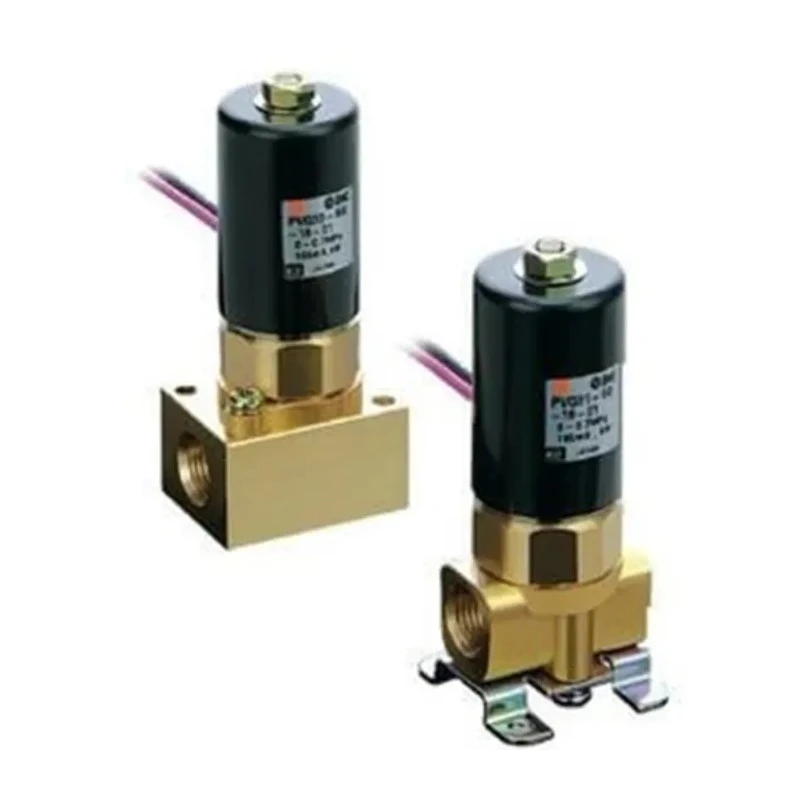

SMC Pneumatic Solenoid Valve Solenoid G 1/8 Port Die Cast Zinc Body 24V 3.96W PVQ33-5G-16-01F-H

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve Solenoid G 1/8 Port Die Cast Zinc Body 24V 3.96W PVQ33-5G-16-01F-H



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	0.7 bar
Height	30mm
Length	49mm
Model	PVQ33-5G-16-01F-H
Width	30mm
Mount Type	Base
Series	PVQ
Number Of Ports	2
Maximum Operating Temperature	50°C
Port Type	O-Ring
Number of Positions	2
Port Size	G 1/8
Seal Material	Fluorelastomer
Minimum Operating Temperature	0°C
Actuation Type	Solenoid
Maximum Flow Rate	75L/min
Standards/Approvals	RoHS
Connection Thread Standard	G 1/8
Mount Pattern	Base
Minimum Pilot Pressure	0.25bar
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	3.96W

Key Features

Compact PVQ series design allows smooth flow rate control via current regulation.
Suitable for vacuum applications with reduced operation noise during valve actuation.
Die cast zinc body ensures durability and corrosion resistance.
Maximum operating pressure of 0.7 bar and flow rate up to 75 L/min.
Operates reliably within temperature range of 0°C to 50°C.
Uses fluorelastomer seals for high chemical resistance.
Mounting pattern and type is base mount for secure installation.
Features O-ring port type with female G 1/8 threaded connections.

Product Description

SMC PVQ33-5G-16-01F-H pneumatic solenoid valve is a compact proportional valve designed with a direct poppet construction for precise flow control through current modulation at 24 volts. Featuring a durable die cast zinc body and fluorelastomer seals, it offers excellent chemical resistance and operational reliability in diverse applications.

The valve includes G 1/8 female ports equipped with O-ring sealing and a base mount pattern for stable setup. It supports vacuum applications and is engineered to minimize noise during opening and closing actions. With a maximum operating pressure of 0.7 bar and maximum flow rate of 75 L/min, it effectively controls compressed air flow in pneumatic systems.

Operating temperature ranges from 0°C to 50°C, ensuring suitability for general industrial environments. The solenoid design is a single type consuming only 3.96W, contributing to energy efficiency. This valve complies with RoHS standards for environmental safety and originates from Japan, reflecting high-quality manufacturing standards.

Compact proportional solenoid valve design for precise flow control. Die cast zinc body ensures robust mechanical strength. Fluorelastomer seals provide excellent chemical resistance. Low noise operation suitable for sensitive pneumatic applications.

Supports vacuum and compressed air systems. Maximum operating pressure 0.7 bar with 75 L/min flow capacity. Operates reliably between 0°C and 50°C ambient temperature. Base mount type with female G 1/8 O-ring port connections.

Single solenoid actuation at 24V with 3.96W power consumption. RoHS compliant and manufactured in Japan.

This pneumatic solenoid valve is ideal for industrial automation, laboratory equipment, HVAC, manufacturing processes, and fluid power control systems. Explore more pneumatic and solenoid valves at EnvMart to find components tailored for your application needs.
