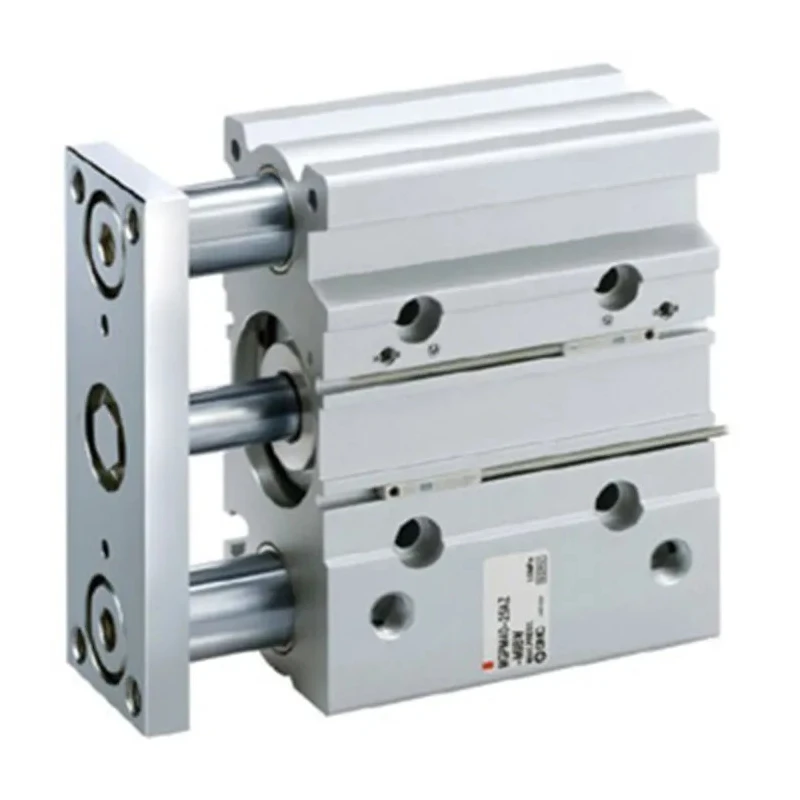

SMC Pneumatic Guided Cylinder 80mm Bore, MGP Series, 75 mm Stroke, Double Acting, Aluminium Alloy Body MGPL80TF-75AZ

The SMC MGPL80TF-75AZ is a high-quality pneumatic guided cylinder featuring an 80mm bore diameter and 75mm stroke length, part of the MGP series. It is designed for precise movement with double acting functionality suitable for various industrial automation and manufacturing processes.

The actuator's compact body incorporates internal guide shafts to isolate load bearing, increasing durability and reducing wear on seals and rods. Rubber bumper cushioning at the stroke end absorbs nearly three times the kinetic energy compared to standard bumpers, significantly lowering noise and vibration levels.

Manufactured with an aluminium alloy body, this guided cylinder balances robustness with a lightweight profile, ideal for applications requiring high precision and longevity. The press-fitted high precision ball bushing enhances stability by minimizing actuator plate displacement, delivering accurate non-rotating performance with an accuracy range of +/-0.05° to +/-0.10° depending on size.

Operating parameters include a maximum pressure rating of 1 MPa and a piston speed capability of up to 500 mm/s, supporting effective pneumatic power output. It functions reliably within an ambient temperature range of -10°C to 60°C, making it suitable for diverse environments including industrial automation, fluid power systems, and machinery manufacturing.

The guided cylinder comes with a G thread piston rod and ball bearing guide type to ensure smooth operation and easy integration with existing pneumatic systems.

This pneumatic guided cylinder is ideal for laboratory automation, manufacturing machinery, HVAC systems, and other commercial industrial applications where precise and reliable linear motion is necessary.

Compact actuator with integrated guide shafts for enhanced load bearing isolation. Rubber bumper cushioning absorbs kinetic energy and reduces noise and vibration. High precision ball bushing ensures minimal plate displacement and non-rotating accuracy.

Aluminium alloy body provides strength with lightweight design. Maximum operating pressure of 1 MPa with a piston speed up to 500 mm/s. Operating temperature range from -10°C to 60°C for versatile industrial use. Stroke length of 75 mm suitable for compact pneumatic applications.

Equipped with G standard piston rod thread and ball bearing guide type. For exploring more Pneumatic Guided Cylinders and related fluid power components, browse the Hydraulics & Pneumatics category on EnvMart for industrial-grade quality products.
