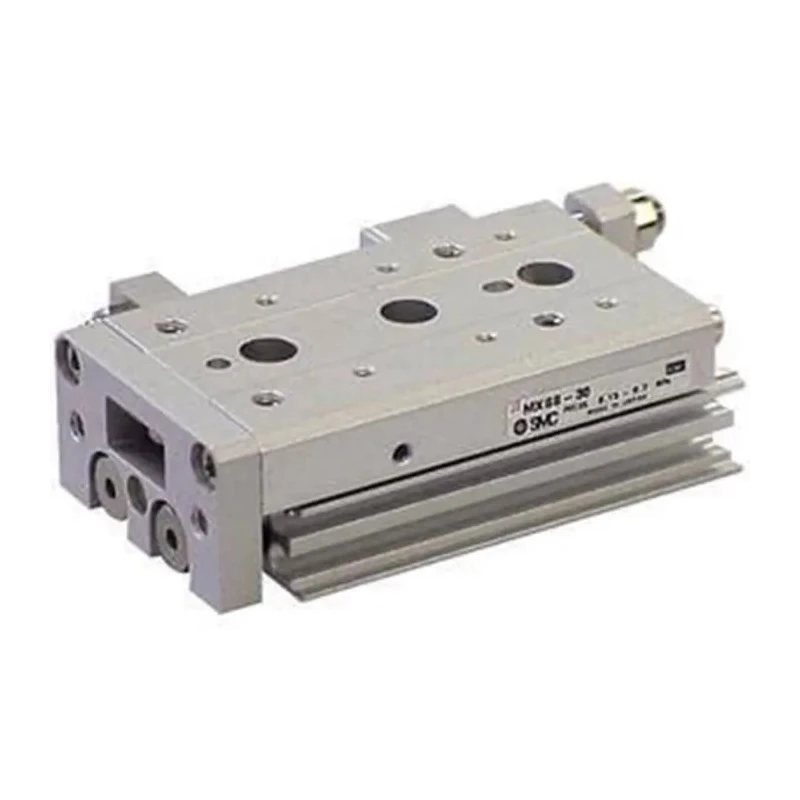

SMC Pneumatic Guided Cylinder 12mm Bore Double Acting Through Hole Mount Aluminium Alloy Body MXS12-100B

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Guided Cylinder 12mm Bore Double Acting Through Hole Mount Aluminium Alloy Body MXS12-100B



Category Pneumatic Guided Cylinder Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	0.7 Mpa
Height	32mm
Length	80mm
Model	MXS12-100B
Gross Weight	890g
Width	50mm
Mount Type	Through Hole
Series	MXS
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Stroke Length	100mm
Bore Diameter	12mm
Action Type	Double Acting
Cushioning Type	Shock Absorber
Guide Type	Slide Bearing
Piston Rod Thread Size	M5

Key Features

Constructed with durable aluminium alloy body ensuring lightweight and strength.
Operates within temperature range of -10°C to 60°C suitable for varied environments.
Shock absorber cushioning provides enhanced operational safety and longevity.
Maximum operating pressure of 0.7 Mpa with piston rod thread size M5 and slide bearing guide type.
Compact dimensions with length 80mm, width 50mm, and height 32mm for space-efficient installation.
Designed for precision assembly applications with axial mounting and flush mountable auto switches.
Maximum piston speed up to 500mm/s supporting fast actuation cycles.
Manufactured in Japan assuring high-quality standards and reliability.

Product Description

SMC MXS12-100B Pneumatic Guided Cylinder is an industrial-grade pneumatic actuator with a 12mm bore diameter and a 100mm stroke length providing precise and reliable double acting motion. Constructed from high-strength aluminium alloy, this cylinder is designed for applications requiring repeatability and durability in fluid power and pneumatic systems.

The cylinder features a through hole mount type and a slide bearing guide for smooth, guided motion with minimized lateral movement. It includes a shock absorber cushioning system that enhances safety and longevity during operation. The piston rod has an M5 thread size allowing secure fixture connections.

Operating within a pressure range up to 0.7 Mpa and temperatures from -10°C to 60°C, it is suitable for a variety of industrial environments including manufacturing, automation, and assembly lines. Its compact dimensions - 80mm length, 50mm width, and 32mm height - facilitate installation in confined spaces, while the maximum piston speed of 500mm/s supports rapid actuation cycles.

This cylinder’s design includes axial mounting and supports flush mountable auto switches, enabling flexible installation methods in different orientations. The dual piston rods provide double the thrust compared to single rod cylinders, making it ideal for precision assembly applications requiring reliable force.

Manufactured in Japan, the MXS12-100B meets strict quality standards, ensuring consistent performance and durability in industrial pneumatic systems. Durable aluminium alloy body for lightweight strength. Double acting, guided cylinder for precise linear motion.

Shock absorber cushioning enhances safety and durability. Supports axial mounting and flush mountable auto switches. Suitable for precision assembly industrial applications. Compact size with 100mm stroke length and 12mm bore diameter.

Maximum operating pressure 0.7 Mpa and temperature range -10°C to 60°C. Manufactured in Japan with high reliability standards.

This pneumatic guided cylinder is an essential component for industrial, manufacturing, automation, and fluid power applications. Explore the full range of Pneumatic Guided Cylinders at EnvMart for suitable options to optimize your equipment performance.
