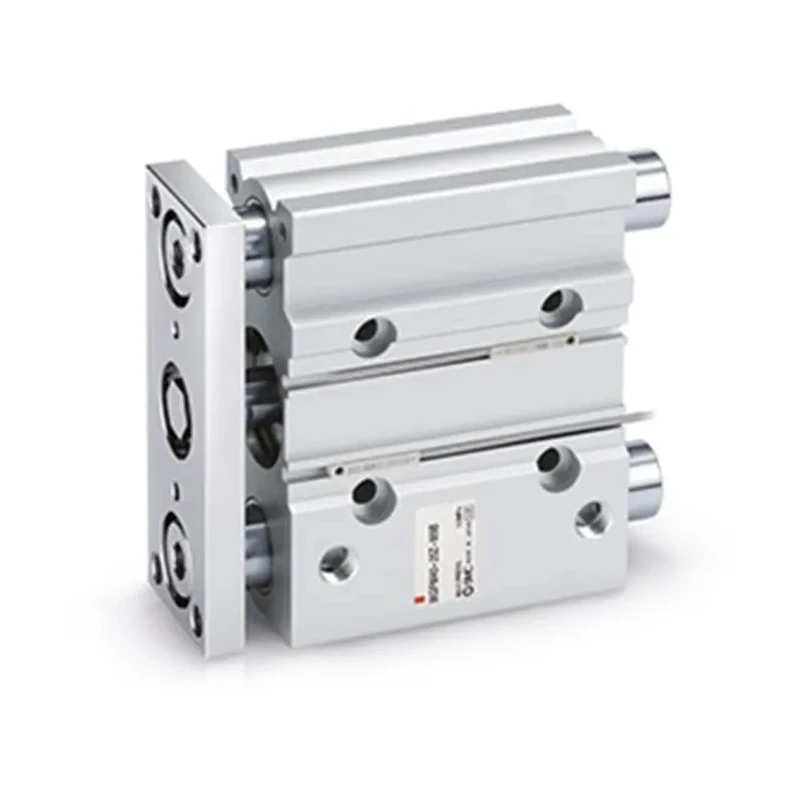

SMC Pneumatic Guided Cylinder 25mm Bore Aluminium Alloy Body Double Acting 100mm Stroke MGPL25TF-100Z
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Model | MGPL25TF-100Z |
| Gross Weight | 1.83kg |
| Series | MGP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 100mm |
| Bore Diameter | 25mm |
| Action Type | Double Acting |
| Cushioning Type | Rubber Bumper |
| Guide Type | Ball Bearing |
| Piston Rod Thread Standard | G |
Key Features
- Double acting pneumatic guided cylinder for precise movement control.
- 25mm bore diameter designed for compact applications.
- Rubber bumper cushioning for smooth operation and reduced shock.
- Ball bearing guide type enhances durability and reduces friction.
- Suitable for operating pressures up to 1 MPa for reliable performance.
- Body constructed from aluminium alloy for lightweight strength.
- Operating temperature range from -10°C to 60°C for versatile environments.
- Piston rod with G thread standard for secure fittings.
Product Description
SMC MGPL25TF-100Z pneumatic guided cylinder features a 25mm bore with aluminium alloy body and double acting operation, designed to deliver precise pneumatic actuation with a stroke length of 100mm. This cylinder is engineered for use in demanding industrial settings including semiconductor manufacturing, liquid crystal production, food processing, and pharmaceutical assembly lines.
The MGP series is notable for its compact construction with ball bearing guides that improve linear motion accuracy while reducing wear. The rubber bumpers located at both ends absorb shocks, extending cylinder life and enhancing smoothness during operation.
With a maximum operating pressure of 1 MPa and a piston speed limit of 500 mm/s, this cylinder reliably handles industrial pneumatic tasks. Its operating temperature range of -10°C to 60°C enables use in varied environmental conditions. The piston rod thread follows the G standard to ensure compatibility with common pneumatic fittings.
Double acting mechanism provides controlled push and pull motion. 25mm bore diameter for medium force applications. Durable aluminium alloy body ensures strength and corrosion resistance. Ball bearing guide design supports precise motion and long service life.
Rubber cushioning minimizes impact at stroke ends. Operational temperature suitable for industrial environments. Compact 100mm stroke accommodates confined spaces. Lightweight design at 1.83 kg simplifies integration.
This pneumatic guided cylinder is ideal for industrial use cases such as automation in semiconductor fabrication, liquid crystal display production lines, food and pharmaceutical processing equipment, and electronic parts handling systems. Its reliable design supports sustained production demands with low maintenance needs.
Explore SMC Pneumatic Guided Cylinders and related pneumatic actuation solutions to optimize your industrial automation setup with precision and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this pneumatic guided cylinder is 25mm.
The stroke length of the SMC MGPL25TF-100Z is 100mm.
It can operate at a maximum pressure of 1 MPa.
The operating temperature range is from -10°C to 60°C.
This model features rubber bumper cushioning for smooth operation and reduced shock.
It utilizes a ball bearing guide type, which enhances durability and reduces friction.
The gross weight of this cylinder is 1.83 kg.
The piston rod follows the G thread standard for secure fittings.
This cylinder is suitable for applications in semiconductor manufacturing, liquid crystal production, food processing, and pharmaceutical assembly lines.
The body is constructed from aluminium alloy, providing lightweight strength and corrosion resistance.
It features a double acting mechanism, allowing controlled push and pull motion.
This model belongs to the MGP series of pneumatic guided cylinders.
