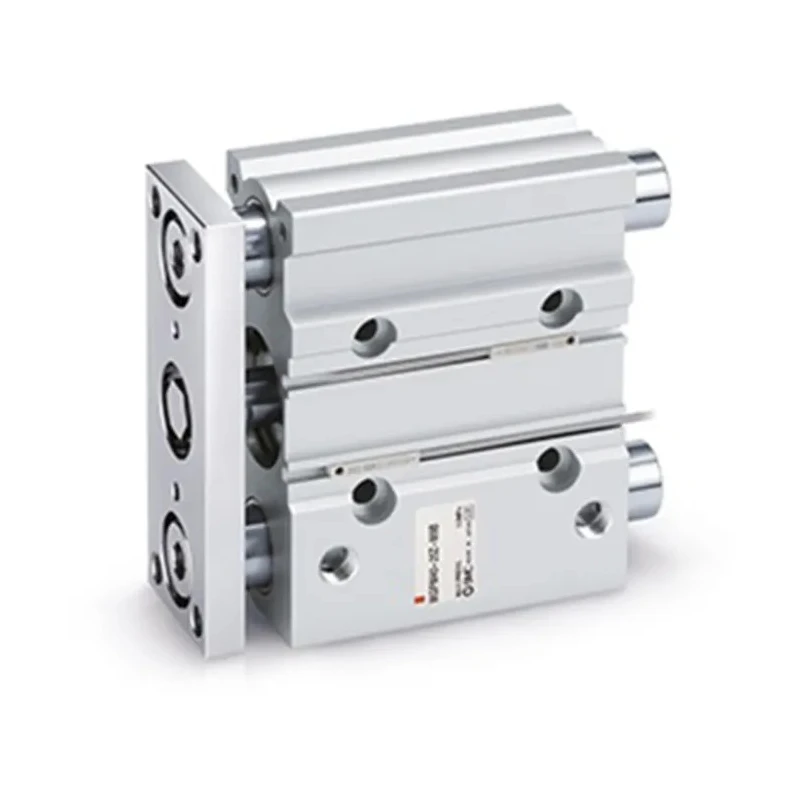

SMC Pneumatic Guided Cylinder 20mm Bore, MGPL Series, 50mm Stroke, Double Acting, Aluminium Alloy Body, MGPL20TF-50Z

SMC MGPL20TF-50Z is a pneumatic guided cylinder featuring a 20mm bore diameter and 50mm stroke length designed for double-acting operation. Constructed with an aluminium alloy body, it offers a compact and lightweight solution for automation and mechanical applications requiring precise linear guidance with controlled actuation.

This cylinder integrates rubber bumpers at both ends for cushioning, significantly reducing impact and noise during operation. The ball bushing guide type enhances lateral stability ensuring smooth and accurate motion, making it ideal for repetitive positioning tasks.

Designed for moderate pneumatic systems, it accommodates a maximum operating pressure of 1 MPa and piston speeds up to 500 mm/s. The operating temperature range of -10°C to 60°C supports usage in a variety of factory and workshop environments without need for special heating or cooling arrangements.

The piston rod employs a standard G-thread for easy attachment of compatible pneumatic rod-end fittings, facilitating flexible integration in industrial assemblies.

Weighing 850 grams, this guided cylinder balances efficiency with manageable weight for payload and counterbalance calculations in servo or robotic systems. Its aluminium alloy construction also simplifies mounting and handling due to reduced mass.

Compact 20mm bore diameter suited for constrained installation spaces. Reliable double-acting pneumatic operation with 50mm stroke length. Rubber bumper cushioning minimizes noise and mechanical shock. Ball bushing guide provides smooth lateral movement and precise alignment.

Aluminium alloy body ensures a lightweight and durable frame. Maximum operating pressure rated at 1 MPa. Operating temperature range from -10°C to 60°C. Supports piston speeds up to 500 mm/s for rapid cycle applications.

Piston rod equipped with G-thread standard for end fitting compatibility. Component mass of 850 grams.

This SMC pneumatic guided cylinder is well suited for industrial automation, mechanical assembly lines, pick-and-place modules, end-of-arm tooling requiring guided actuation, precise sensor or switch actuation in control panels, electronic manufacturing alignment tasks, and jigs and fixtures necessitating consistent linear guidance.

EnvMart offers this high-quality Pneumatic Guided Cylinder under the reliable SMC brand, ideal for hydraulic and pneumatic tool needs in industrial tooling environments.
